Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 2 illustrations

Illustrations

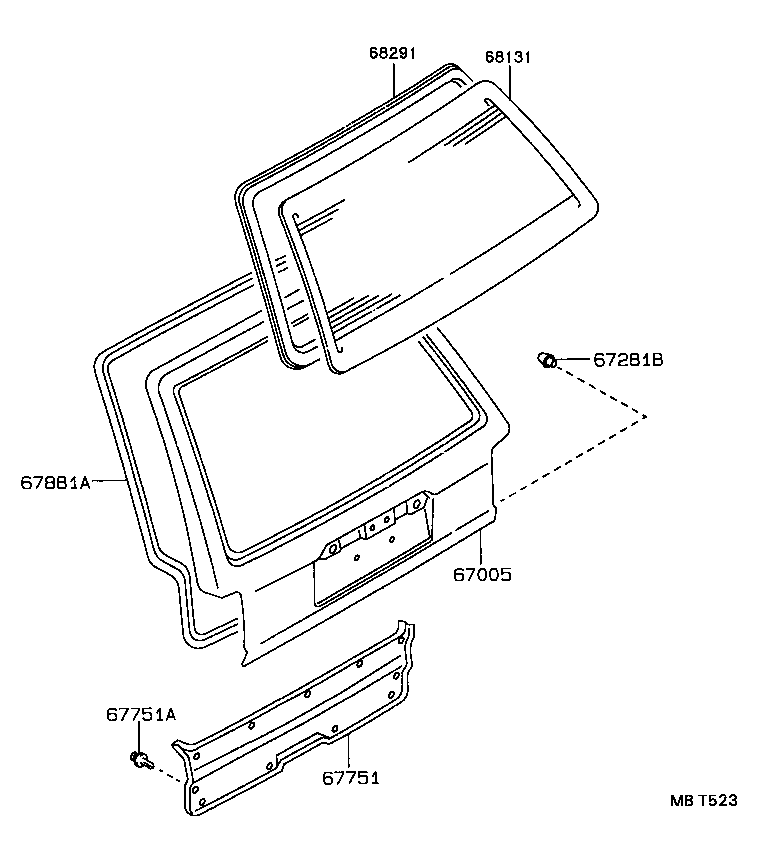

Figure MBU688 MBU688 1987-12 → — Figure MBT523 MBT523 1987-12 → —

Part groups

PNCDescription
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64780B Clip(FOR BACK DOOR TRIM PANEL)
64780C Panel Assy, Back Door Trim, RH
64783A Trim, Back Window Panel, Upper
64790C Panel Assy, Back Door Trim, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
