Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 3 illustrations

Illustrations

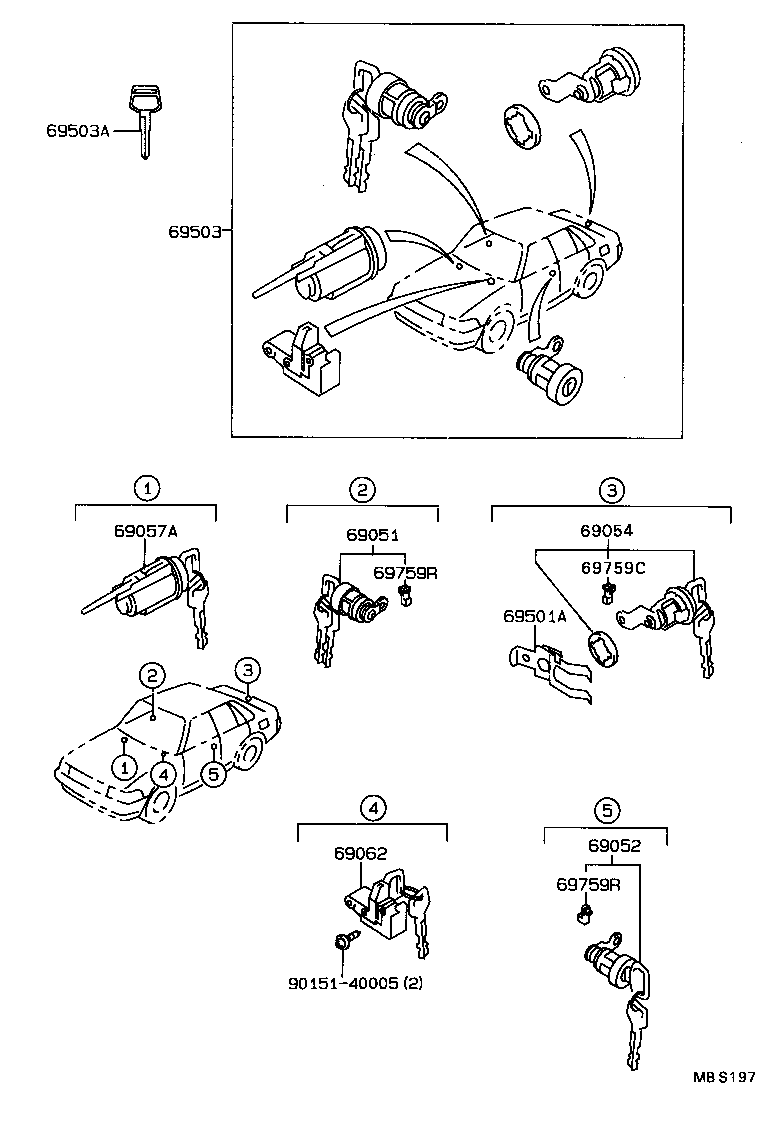

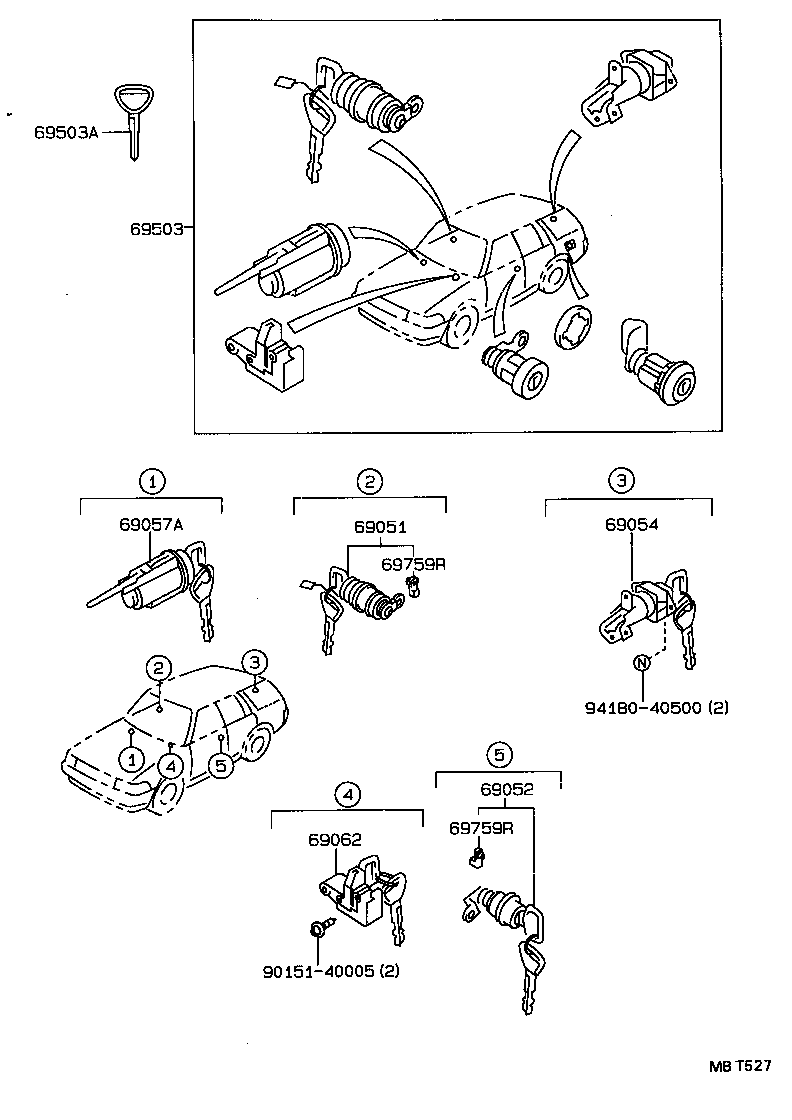

Figure MBS196A MBS196A 1987-12 → — Figure MBS197 MBS197 1987-12 → — Figure MBT527 MBT527 1987-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69501A Retainer Sub-assy, Back Door Cylinder
69503 Cylinder Set, Lock
69503A Key, Blank
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
