Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

31 part groups · 2 illustrations

Illustrations

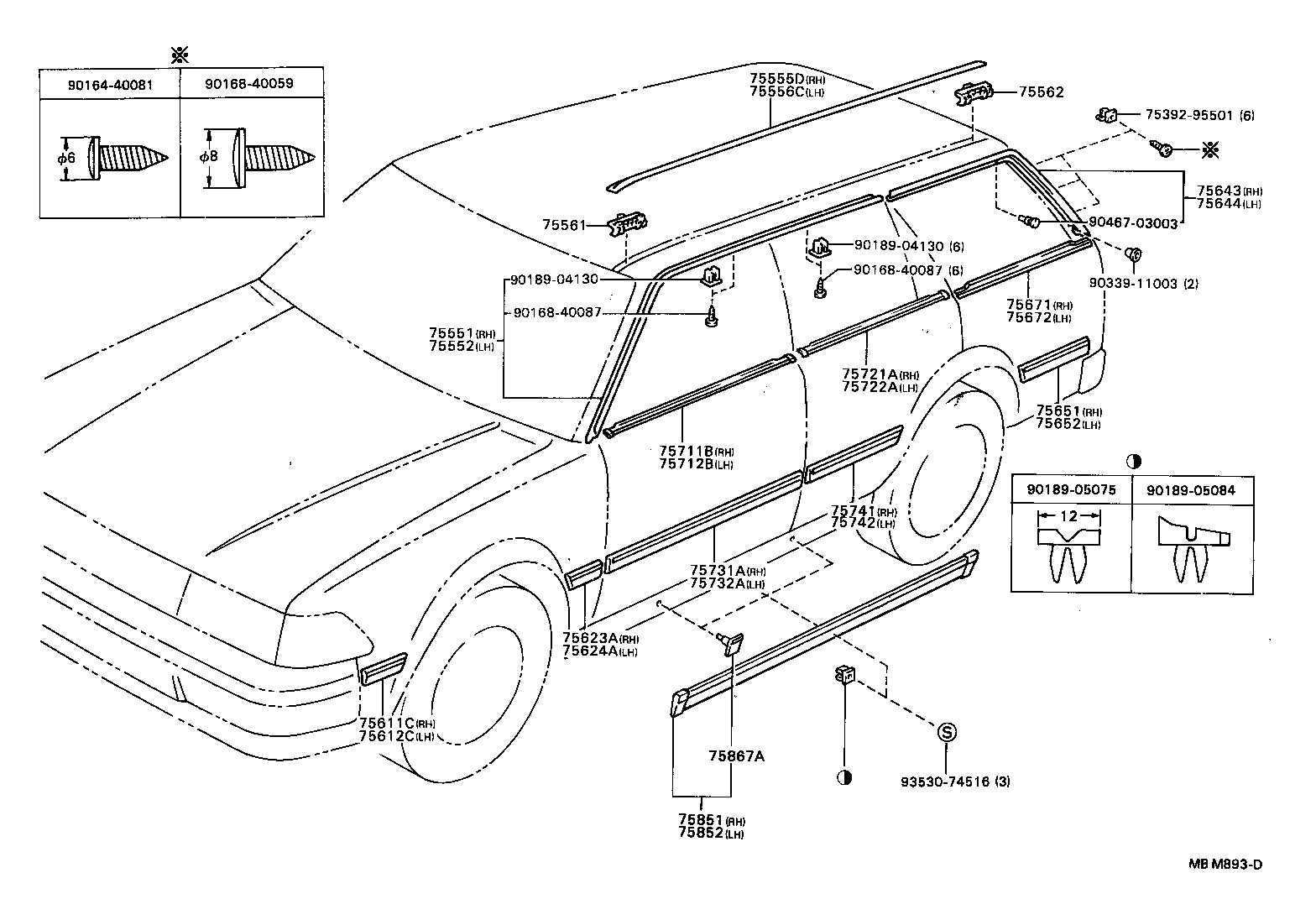

Figure MBM892B MBM892B 1987-12 → — Figure MBM893D MBM893D 1987-12 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553A Moulding, Roof Drip Side Finish, Rear RH
75554A Moulding, Roof Drip Side Finish, Rear LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75557C Moulding, Roof Drip Side Finish, Center NO.2 RH
75558C Moulding, Roof Drip Side Finish, Center NO.2 LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75562 Clip, Roof Drip Side Finish Moulding, NO.2
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75643 Moulding, Quarter Window, Outside Upper RH
75644 Moulding, Quarter Window, Outside Upper LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75711B Moulding, Front Door Belt, RH
75712B Moulding, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75722A Moulding, Rear Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75867A Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
