Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

14 part groups · 3 illustrations

Illustrations

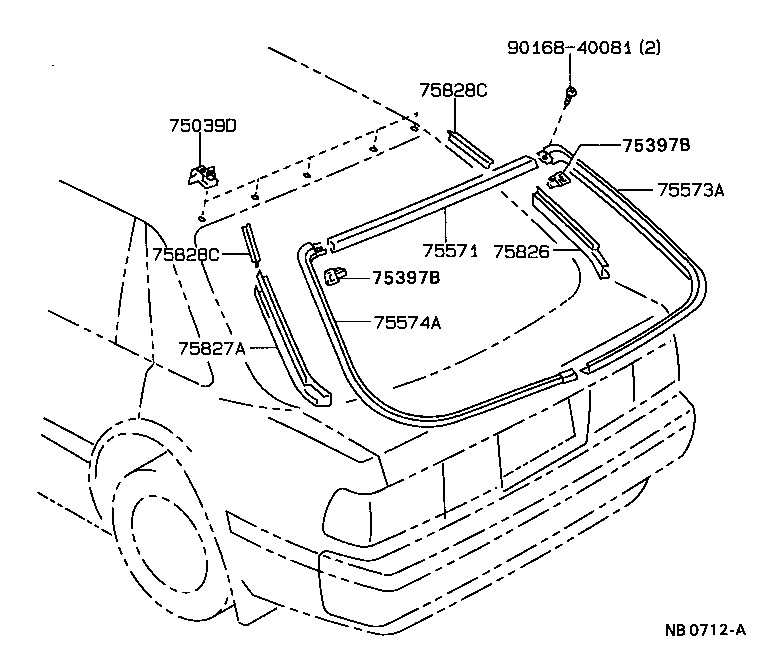

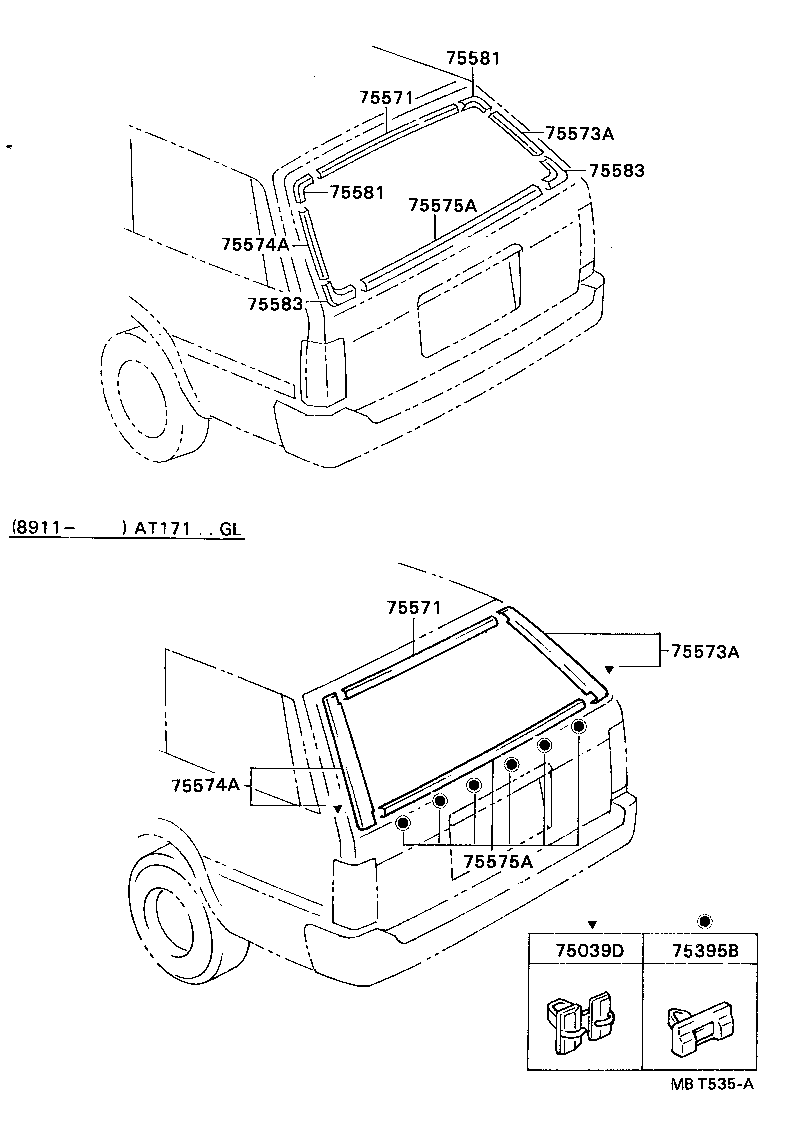

Figure NB0711A NB0711A 1987-12 → — Figure NB0712A NB0712A 1987-12 → — Figure MBT535A MBT535A 1987-12 → —

Part groups

PNCDescription
75039D Clip Sub-assy, Outside Moulding, NO.1
75392B Reteiner, Outside Moulding, NO.1
75395B Clip, Back Door Moulding, NO.1
75397B Clip, Back Window Moulding, NO.3
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75581 Cover, Back Window Moulding Joint, Upper
75583 Cover, Back Window Moulding Joint, Lower
75826 Pad, Back Door Outside Moulding, RH
75827A Pad, Back Door Outside Moulding, LH
75828C Protector, Back Door Outside Moulding
76581 Retainer, Back Window Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
