Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

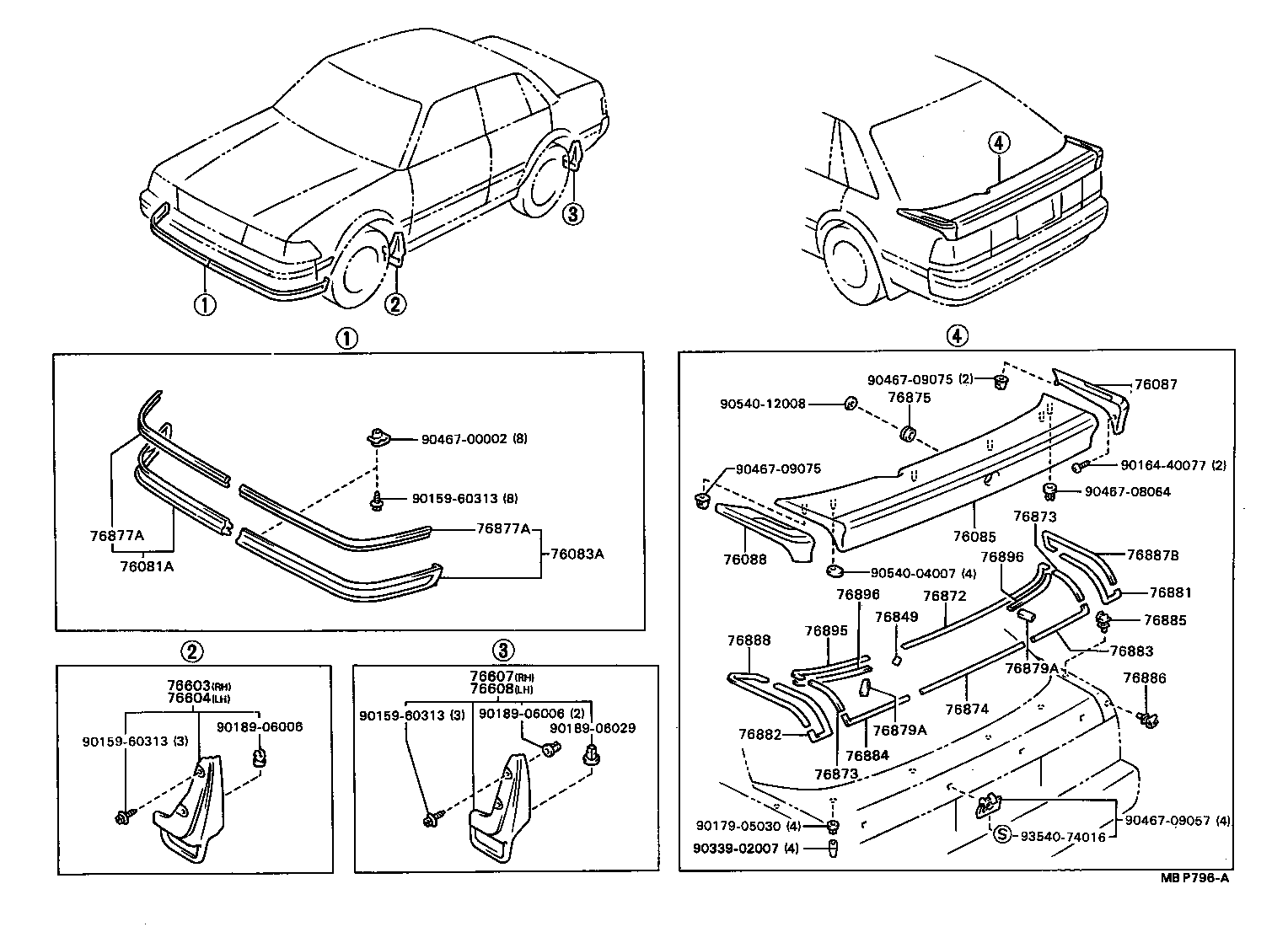

Mudguard & Spoiler
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76081A | Spoiler Sub-assy, Front RH |
| 76083A | Spoiler Sub-assy, Front LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76087 | Spoiler Sub-assy, Rear NO.1 |
| 76088 | Spoiler Sub-assy, Rear NO.2 |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76849 | Protector, Rear Spoiler, NO.12 LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877A | Protector, Front Spoiler |
| 76879A | Spacer, Rear Spoiler |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76883 | Protecter, Rear Spoiler, NO.7 RH |
| 76884 | Protecter, Rear Spoiler, NO.7 LH |
| 76885 | Retainer, Rear Spoiler, NO.5 |
| 76886 | Retainer, Rear Spoiler, NO.6 |
| 76887B | Protector, Rear Spoiler Side, NO.2 |
| 76888 | Protector, Rear Spoiler Side, NO.3 |
| 76895 | Protector, Rear Spoiler, NO.5 |
| 76896 | Protector, Rear Spoiler, NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
