Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08
Rear Combination Lamp
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210J | Reflector Assy, Reflex, RH |
| 81211F | Lens & Cover, Reflex Reflector, RH |
| 81220J | Reflector Assy, Reflex, LH |
| 81221F | Lens & Cover, Reflex Reflector, LH |

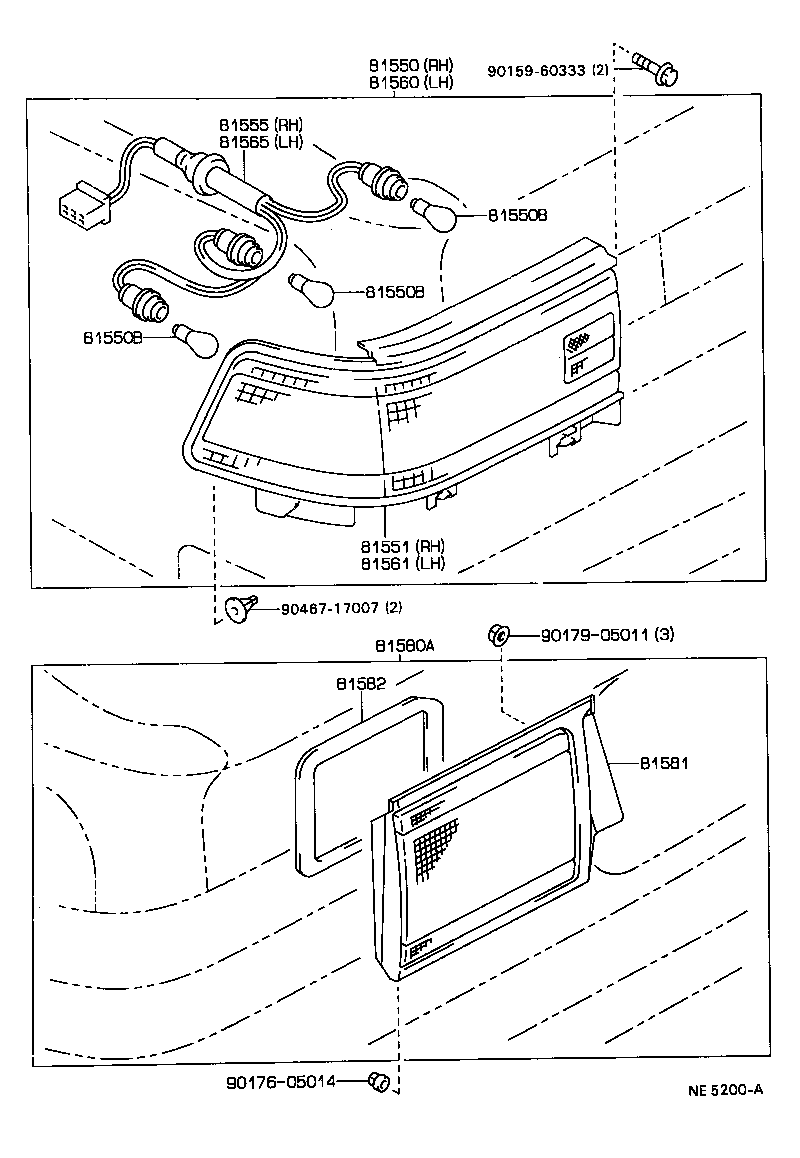

| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81581 | Lens, Rear Lamp |
| 81582 | Gasket, Rear Lamp |
| 81674A | Gasket, Back-up Lamp |
| 81684A | Gasket, Back UP Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
