Rear License Plate Lamp

7 part groups · 2 illustrations

Illustrations

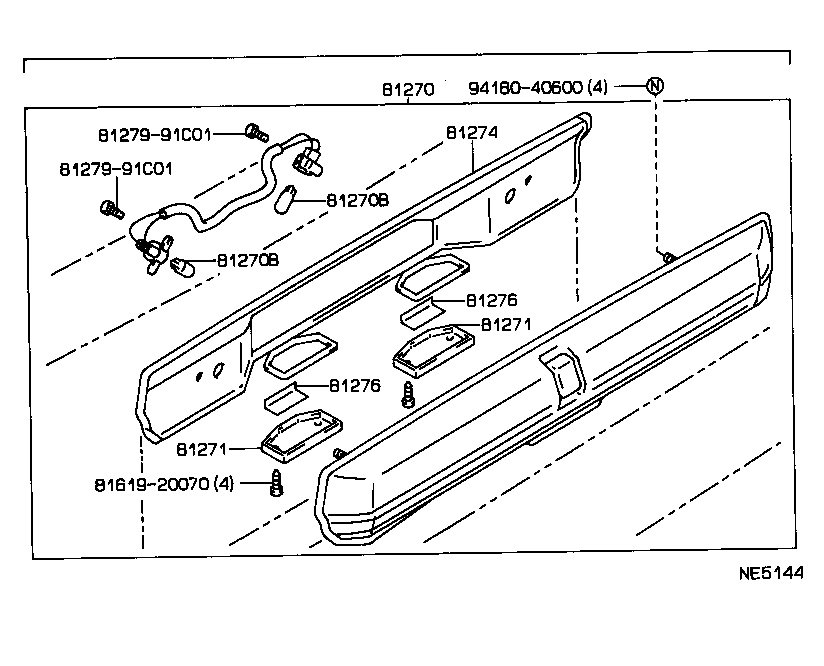

Figure MEP166 MEP166 1987-12 → — Figure NE5144 NE5144 1987-12 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
81276 Rim, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
