Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 7 illustrations

Illustrations

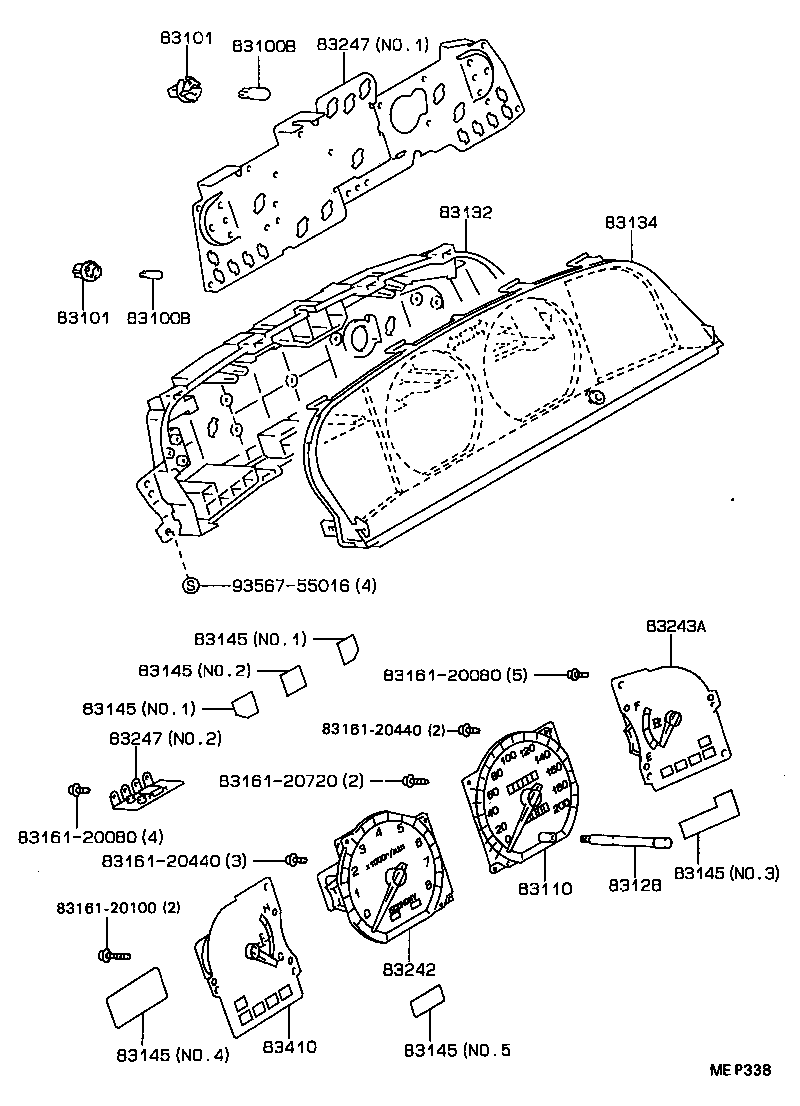

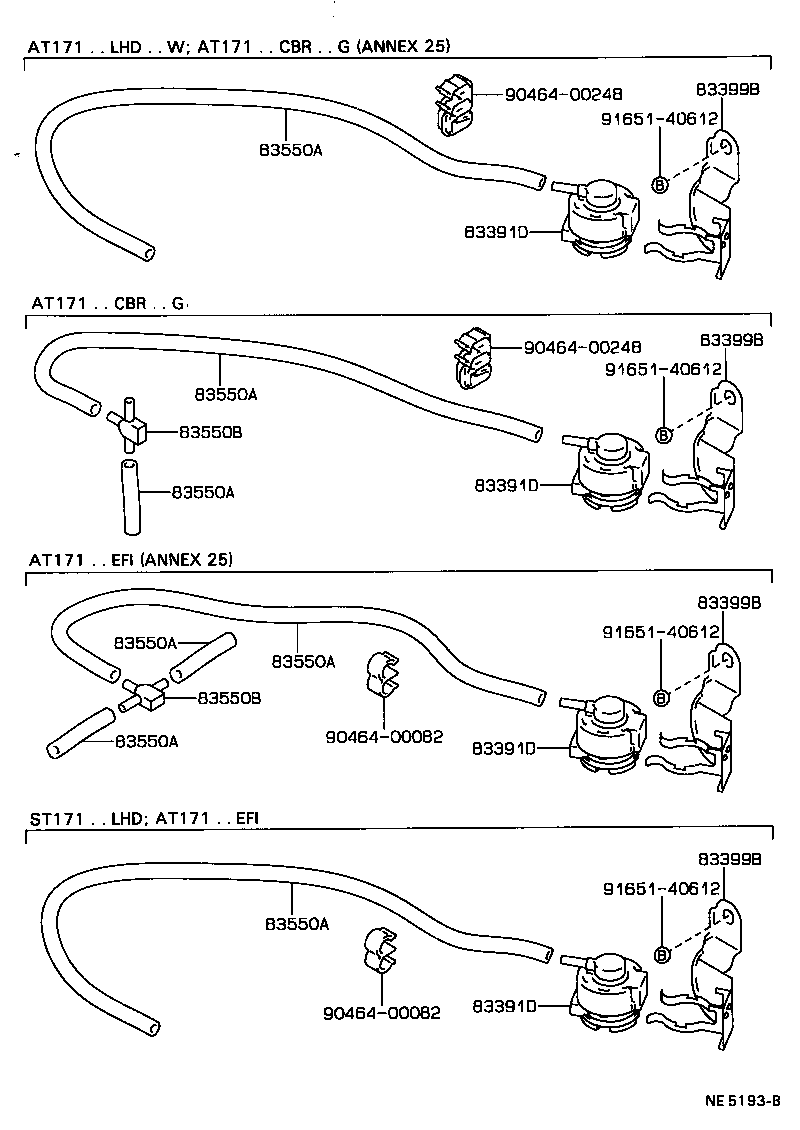

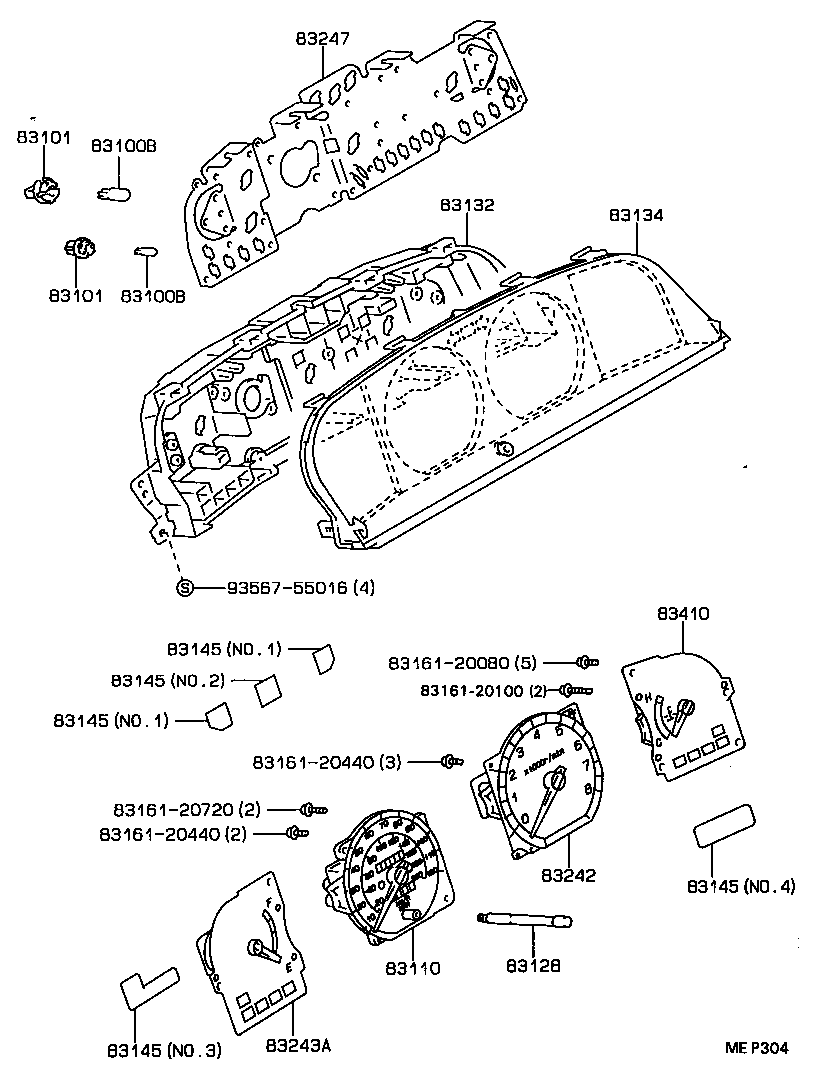

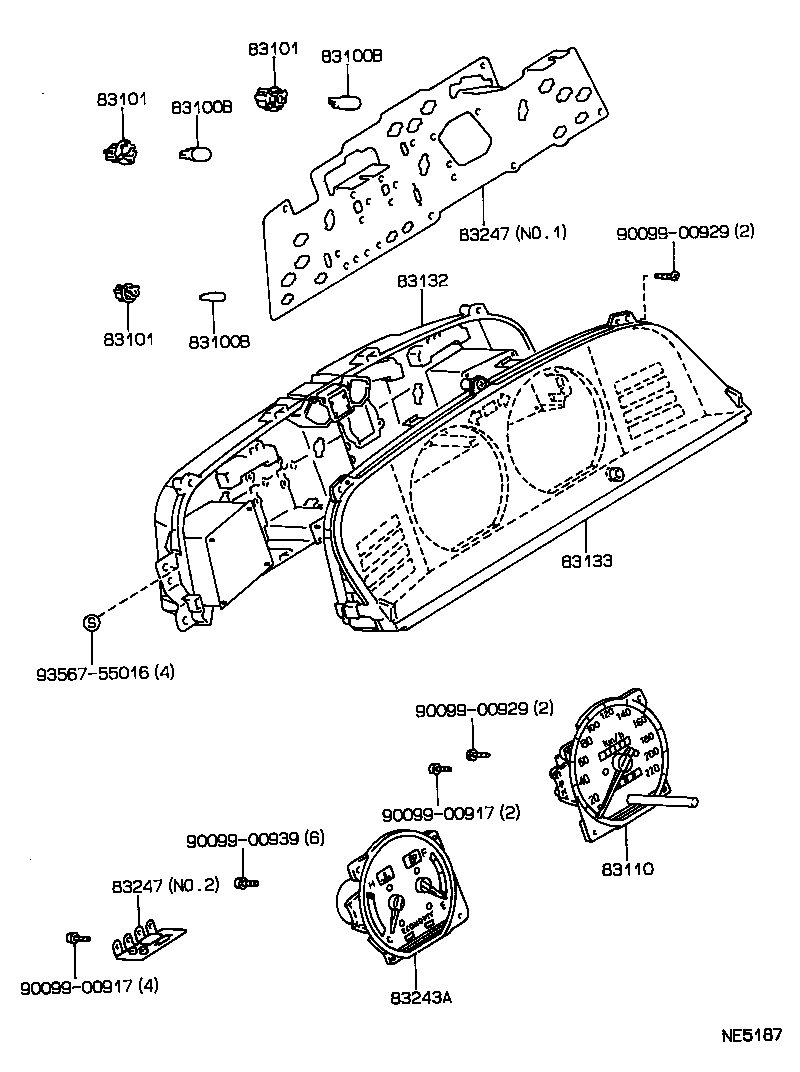

Figure NE5182 NE5182 1987-12 → — Figure NE5187 NE5187 1987-12 → — Figure MEP304 MEP304 1987-12 → — Figure MEP338 MEP338 1987-12 → — Figure NE5189 NE5189 1987-12 → — Figure 831470 831470 1987-12 → — Figure NE5193B NE5193B 1987-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83180 Detector Assy, Revolution
83189 Bracket, Meter
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83391D Switch, Vacuum
83399B Bracket, Vacuum Switch
83410 Gage Assy, Water Temperature Receiver
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
