Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

8 part groups · 3 illustrations

Illustrations

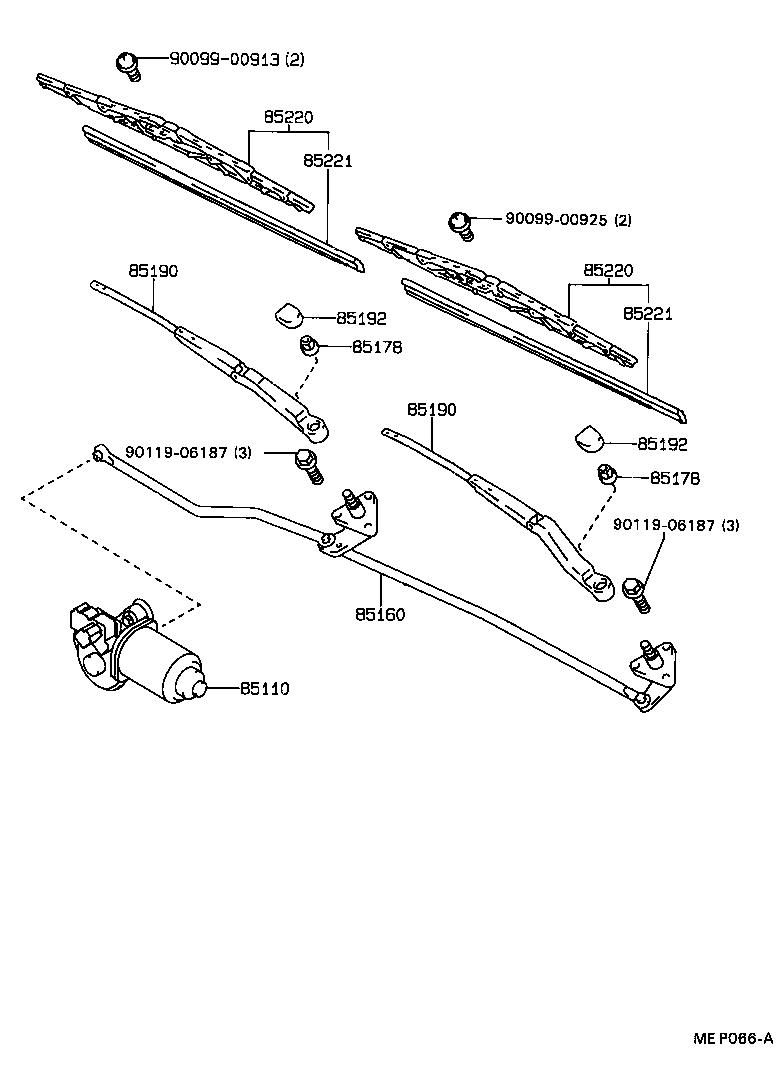

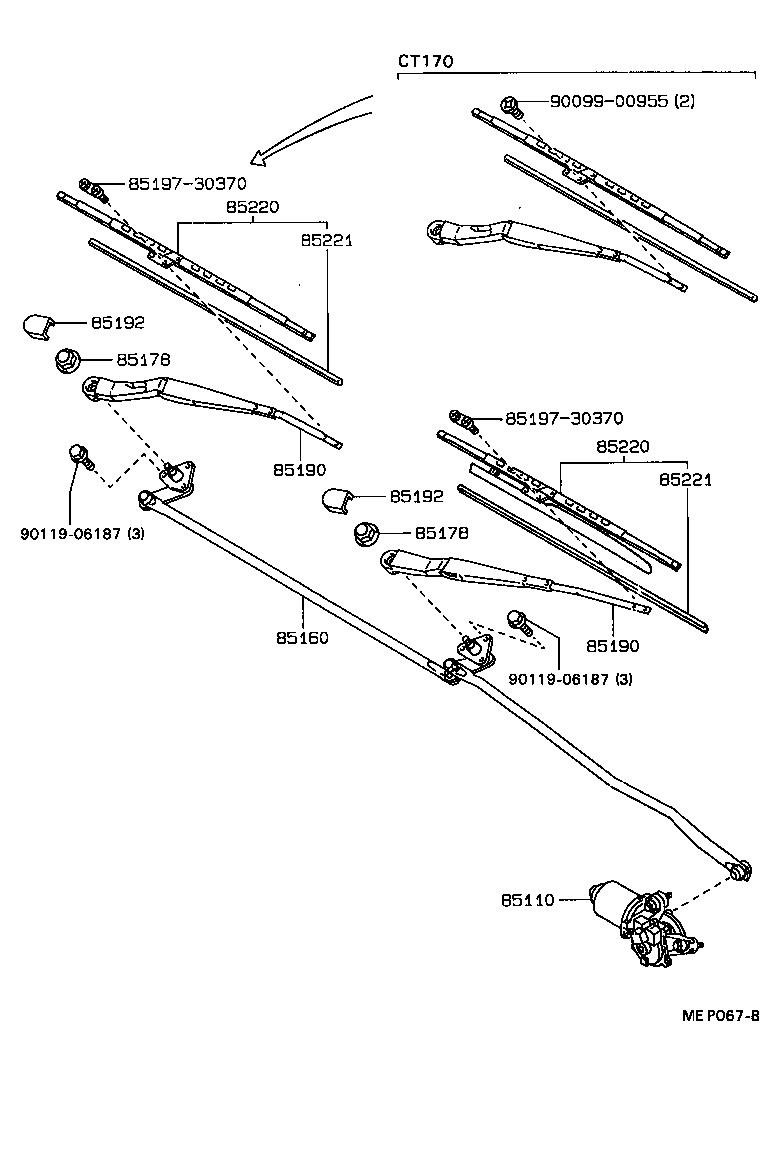

Figure NE0683 NE0683 1987-12 → 1989-11 Figure MEP067B MEP067B 1989-11 → — Figure MEP066A MEP066A 1989-11 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85225 Wing, Wiper Blade
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
