Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 4 illustrations

Illustrations

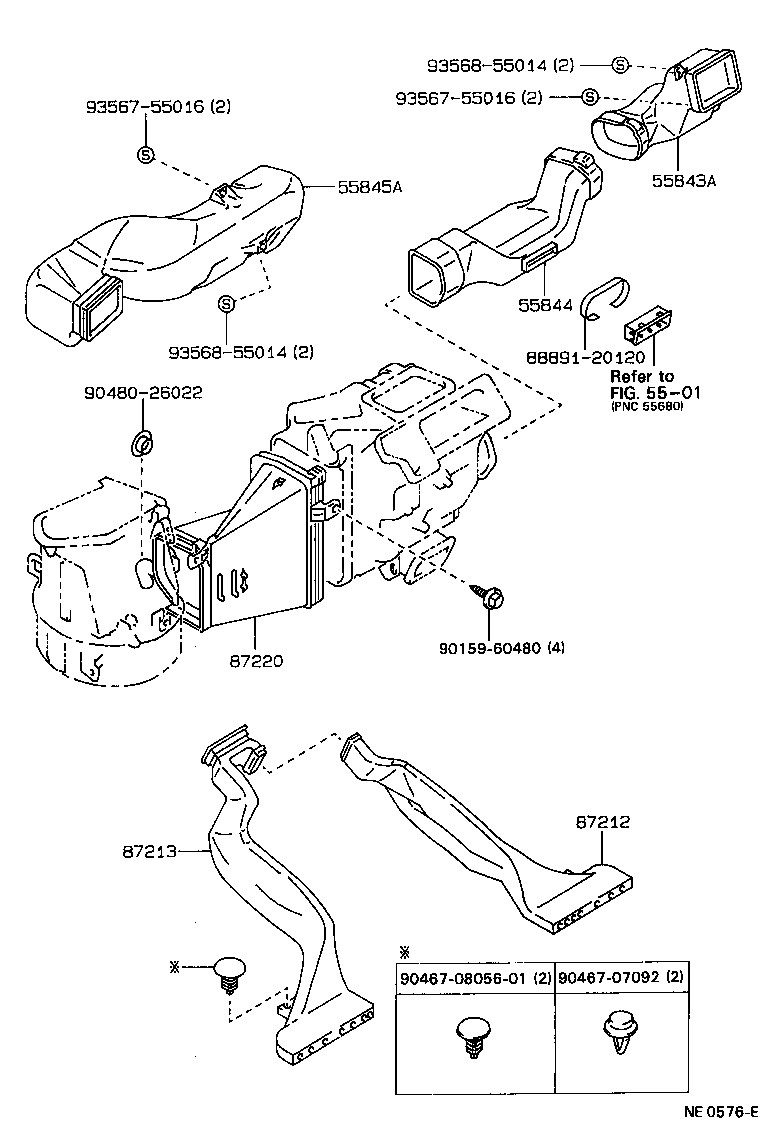

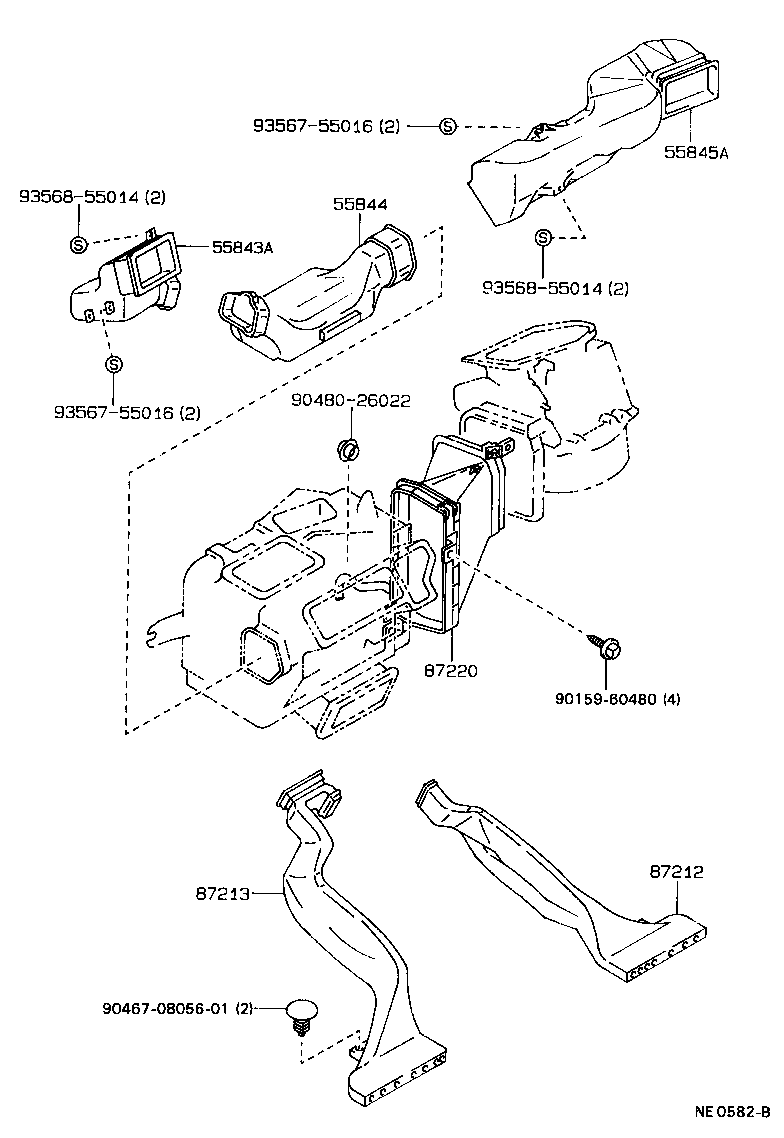

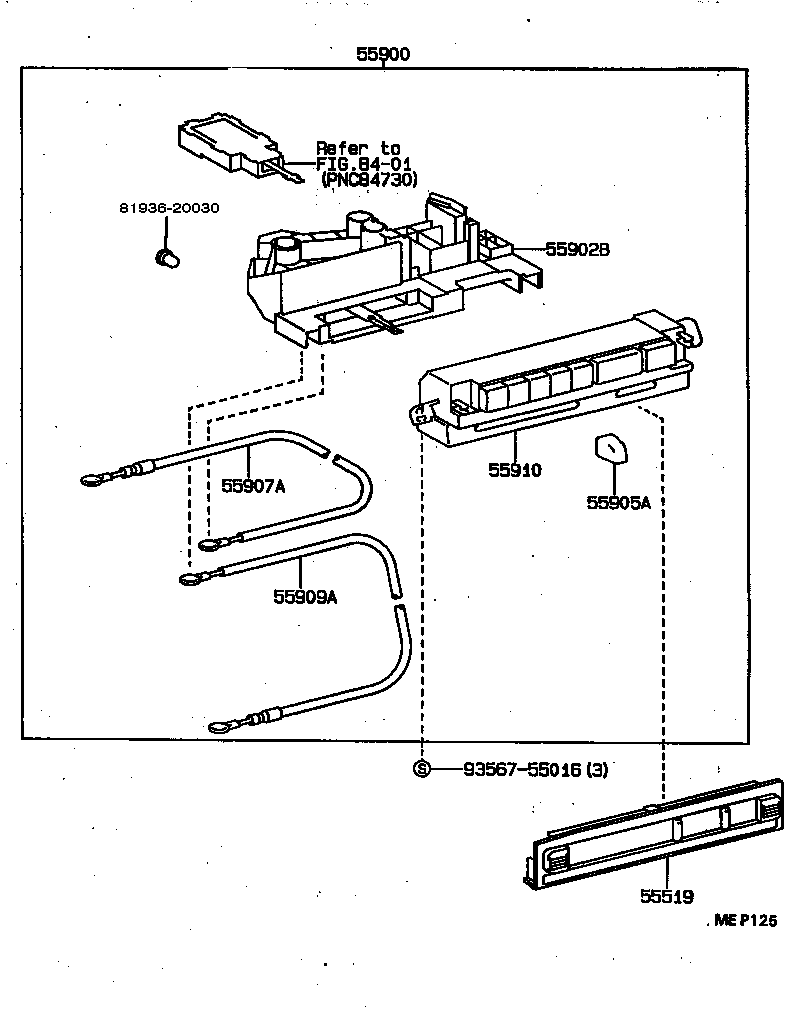

Figure NE0581B NE0581B 1987-12 → — Figure MEP125 MEP125 1989-11 → — Figure NE0576E NE0576E 1987-12 → — Figure NE0582B NE0582B 1987-12 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
55921A Retainer, Heater Control
55931A Shaft, Heater Control Lever
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
