Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure NE0616B

NE0616B 1987-12 → —

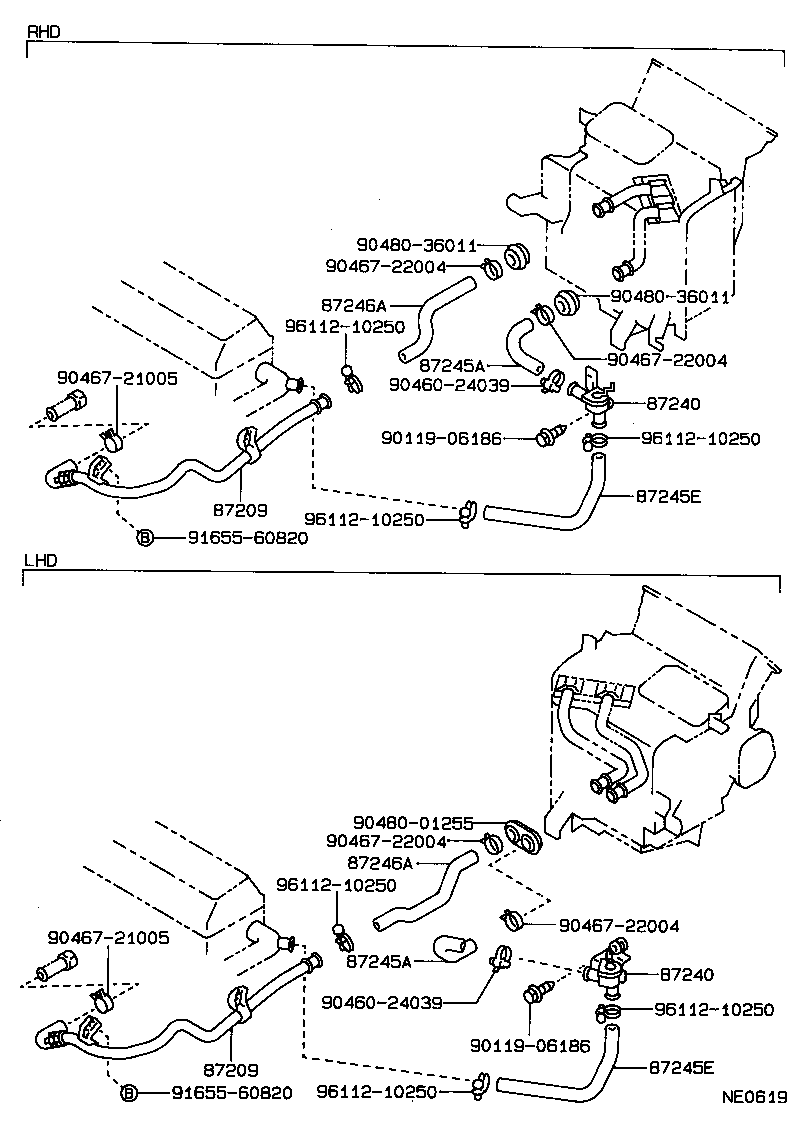

Figure NE0619

NE0619 1987-12 → —

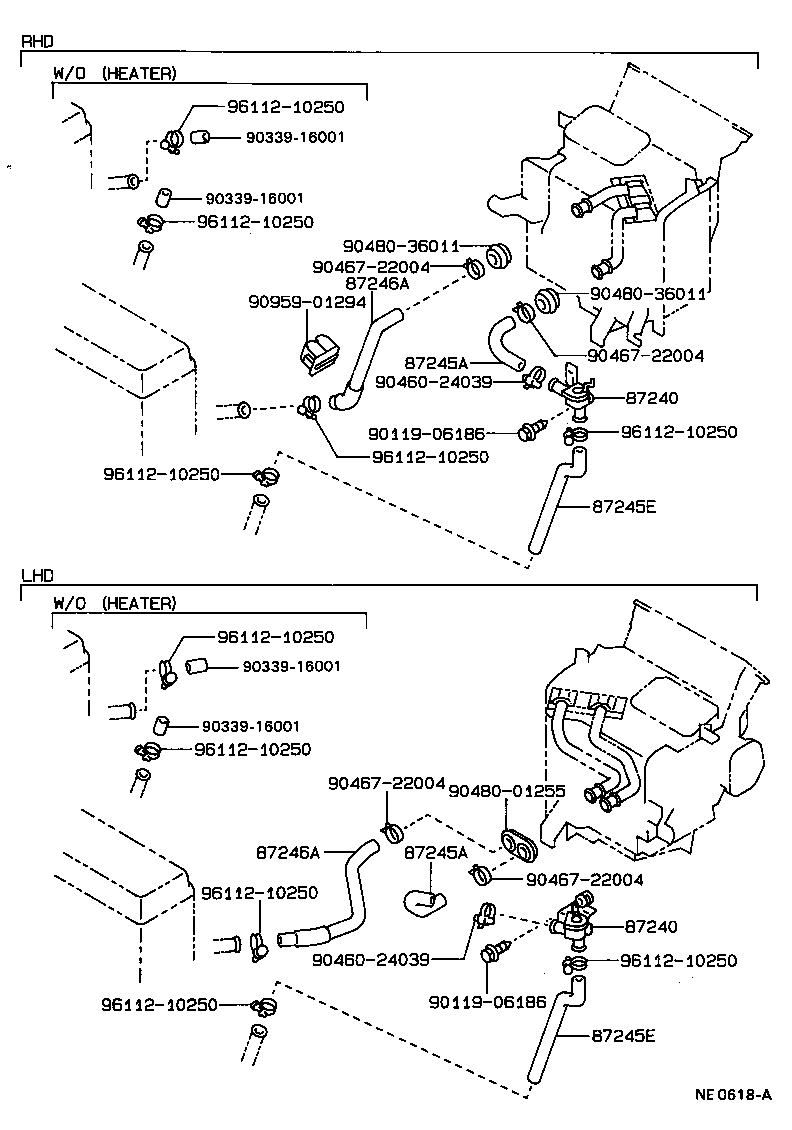

Figure NE0618A

NE0618A 1987-12 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
