Toyota Carina E Sed/LB(JPP)

1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 5 illustrations

Illustrations

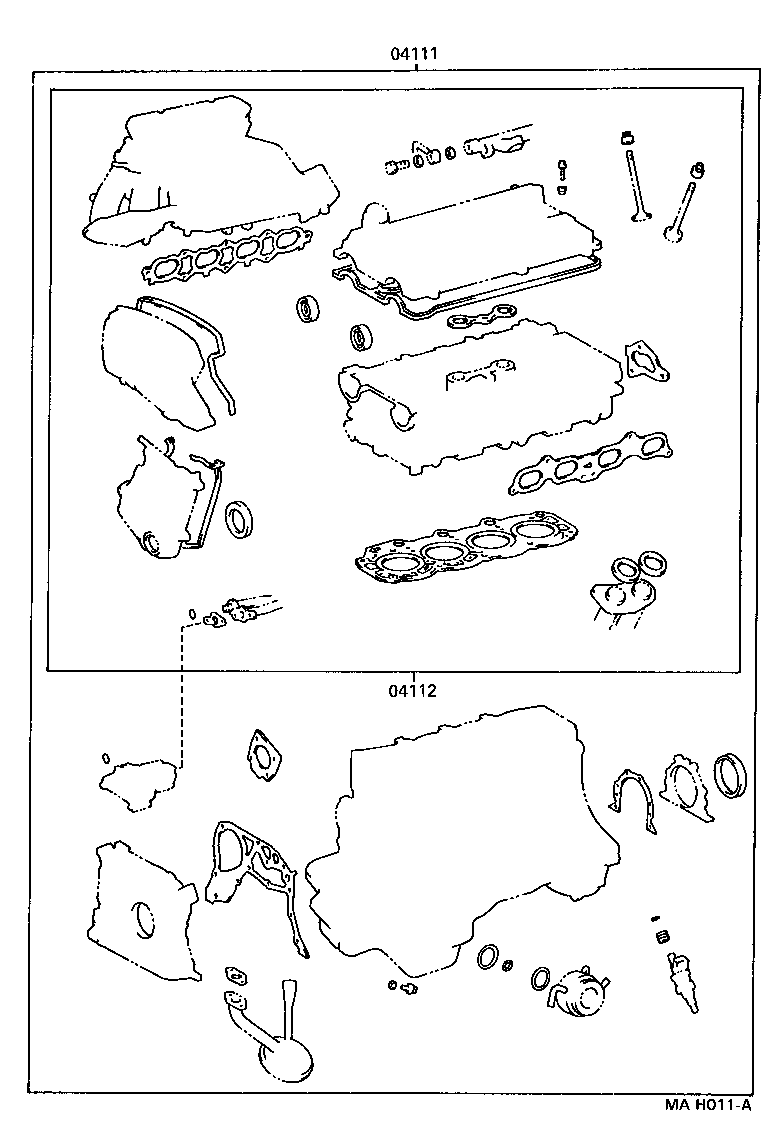

Figure NA0042A NA0042A 1992-02 → — Figure NA0219 NA0219 1992-02 → 1996-01 Figure MAG945B MAG945B 1992-02 → 1996-01 Figure MAD023 MAD023 1992-02 → 1994-02 Figure MAH011A MAH011A 1994-02 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
