Toyota Carina E Sed/LB(JPP)

1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

24 part groups · 8 illustrations

Illustrations

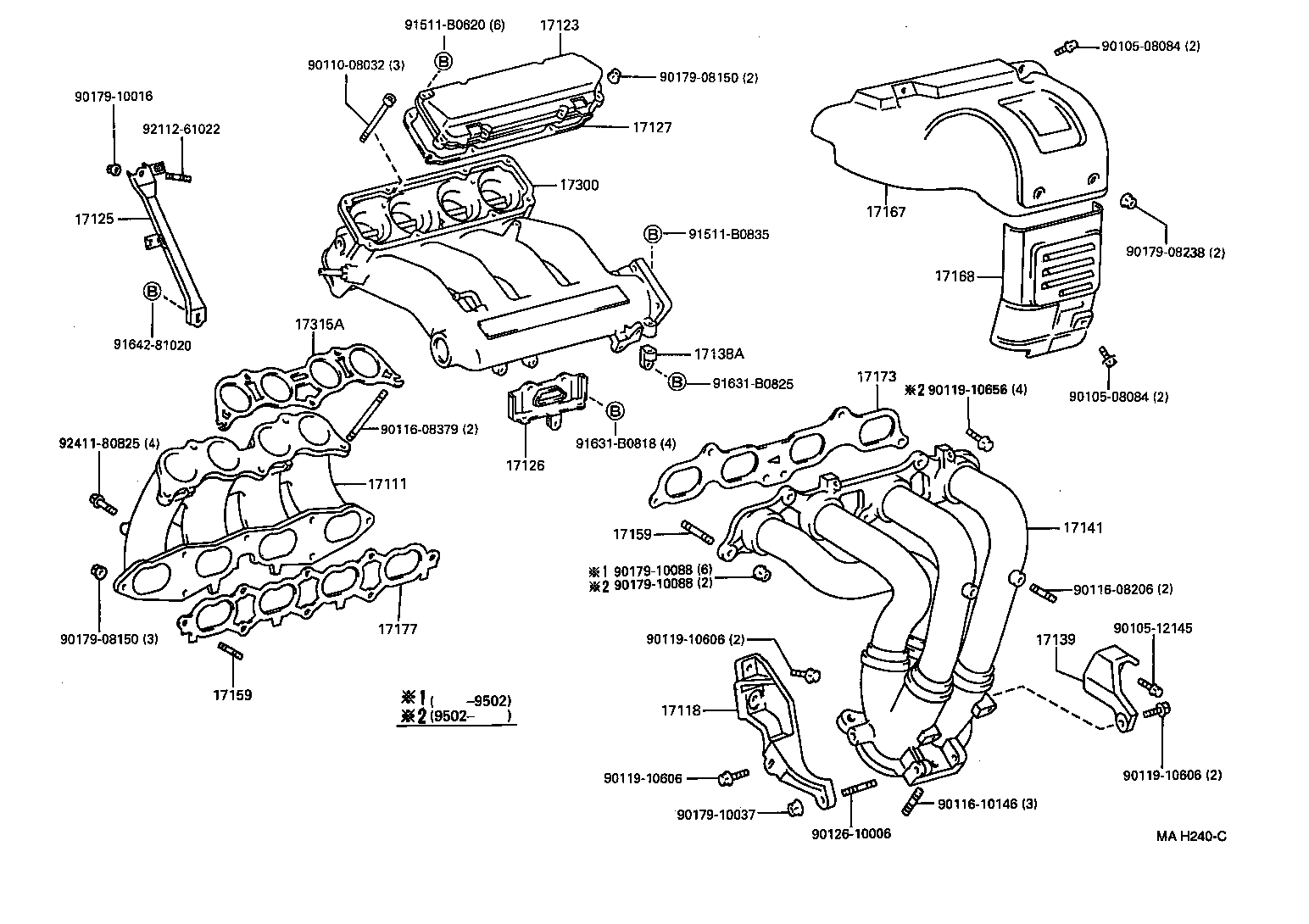

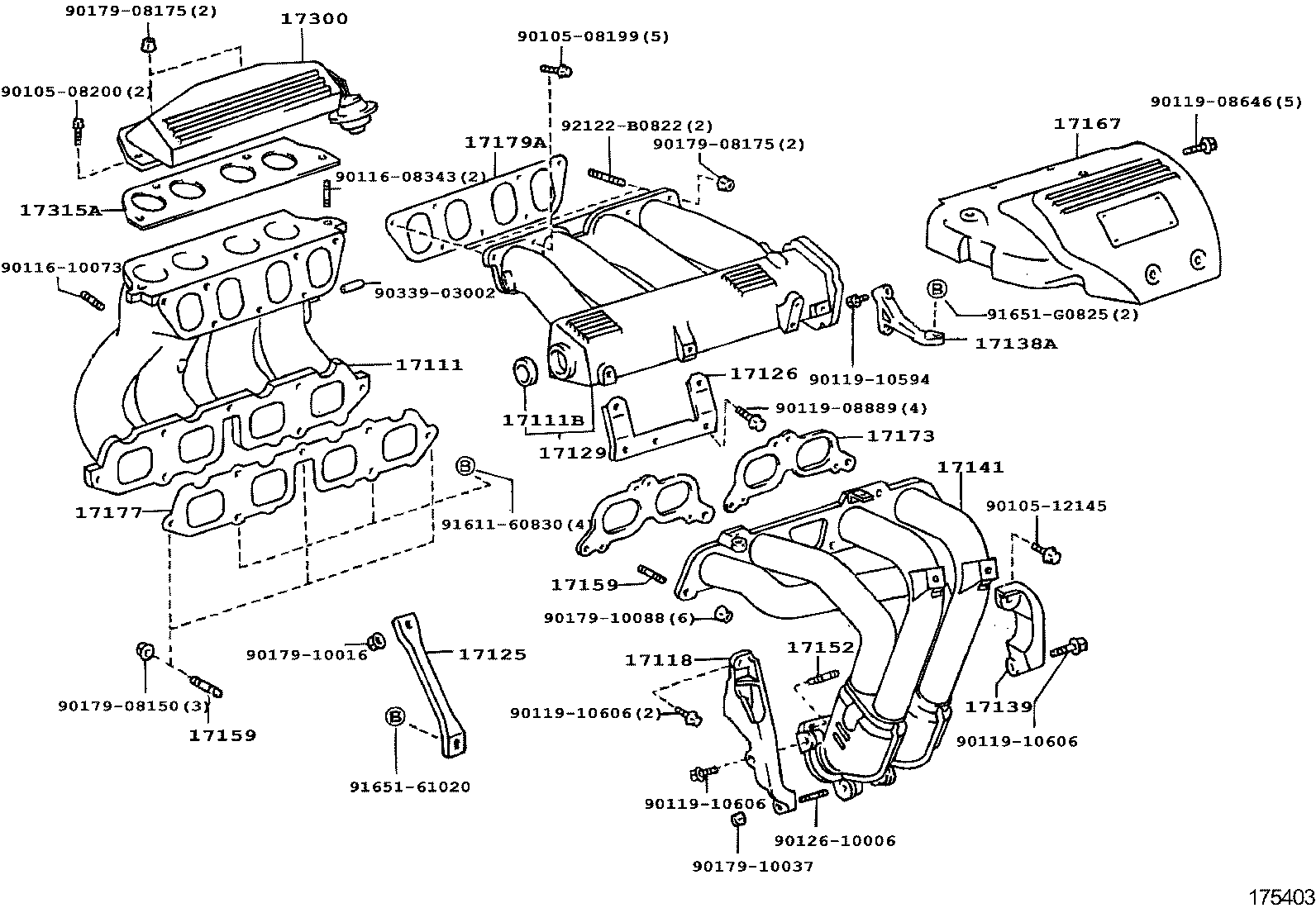

Figure MAF660D MAF660D 1992-02 → 1996-01 Figure MAF670D MAF670D 1992-02 → 1994-12 Figure MAF670D MAF670D 1994-11 → 1996-01 Figure MAH589B MAH589B 1994-12 → — Figure MAF592A MAF592A 1992-02 → 1996-01 Figure MAG263D MAG263D 1992-02 → 1996-01 Figure 175403 175403 1992-02 → 1994-02 Figure MAH240C MAH240C 1994-02 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17129H Union, NO.4
17138A Stay, Intake Pipe
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
