Toyota Carina E Sed/LB(JPP)

1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 8 illustrations

Illustrations

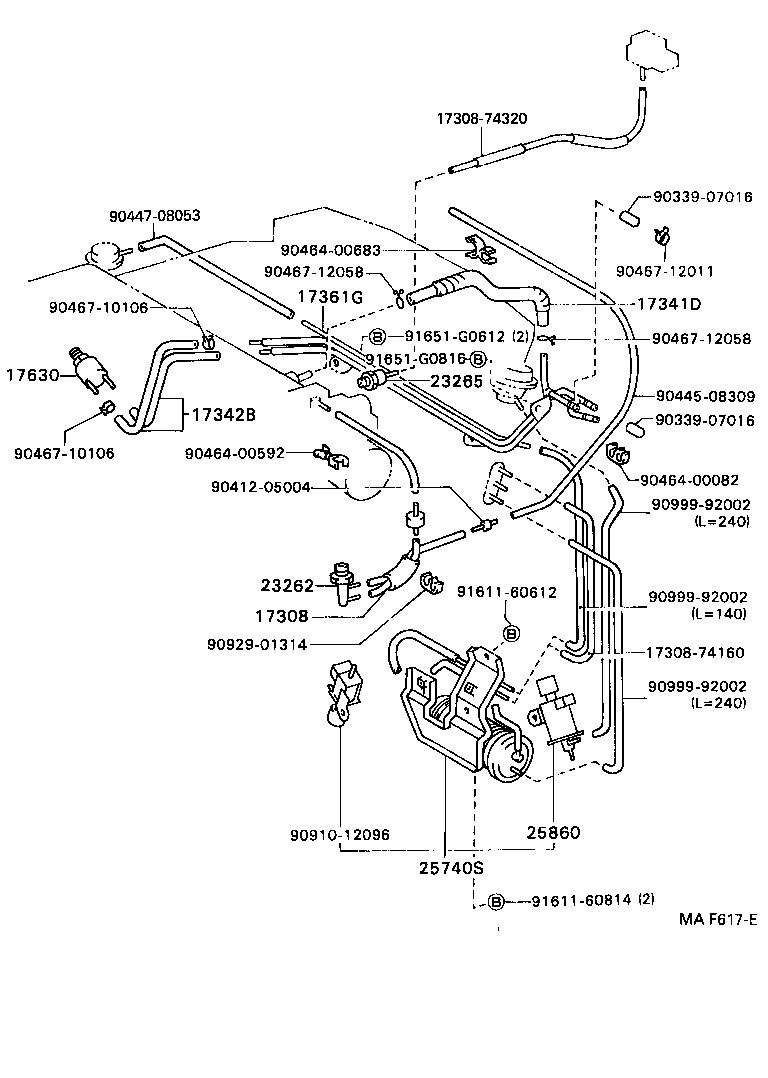

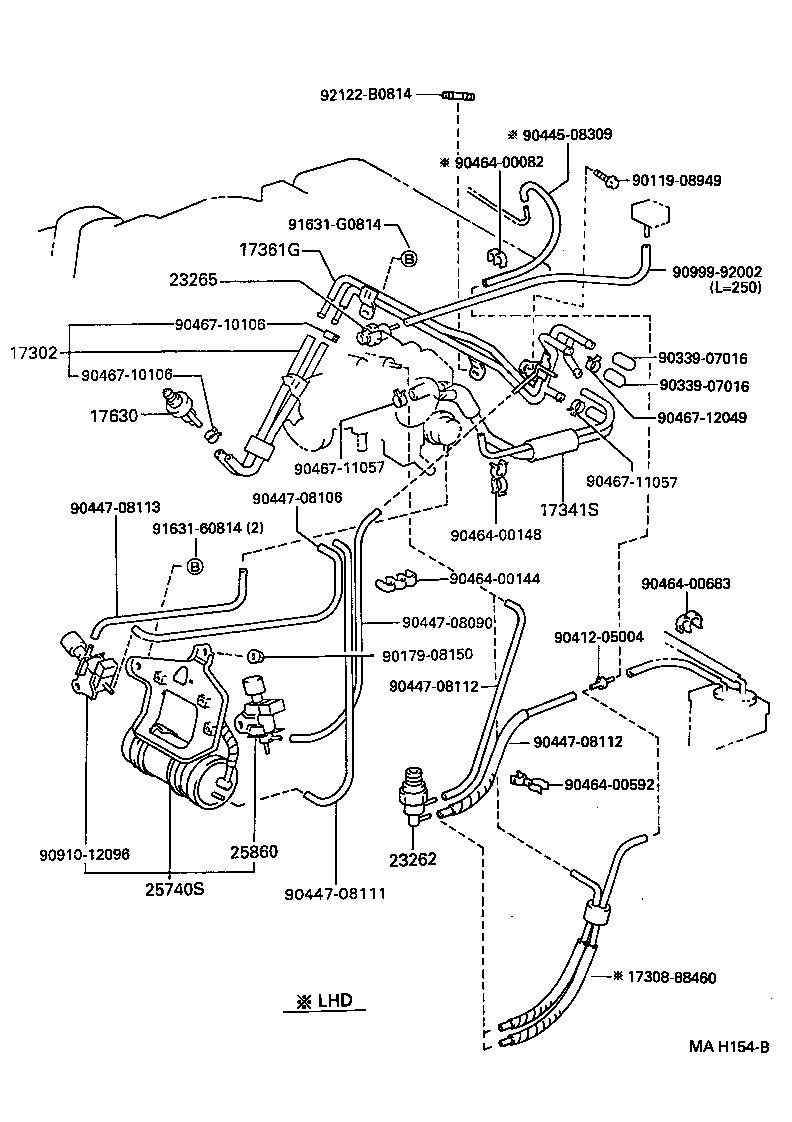

Figure MA9504B MA9504B 1992-02 → — Figure MAF673H MAF673H 1992-02 → — Figure MA9504B MA9504B 1992-02 → — Figure MAF608F MAF608F 1992-02 → 1996-01 Figure MA9504B MA9504B 1992-02 → — Figure MAF641H MAF641H 1992-02 → — Figure MAF617E MAF617E 1992-02 → 1994-02 Figure MAH154B MAH154B 1994-02 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17341S Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
