Toyota Carina E Sed/LB(JPP)
1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe
Discontinued model
Data version 1997-12

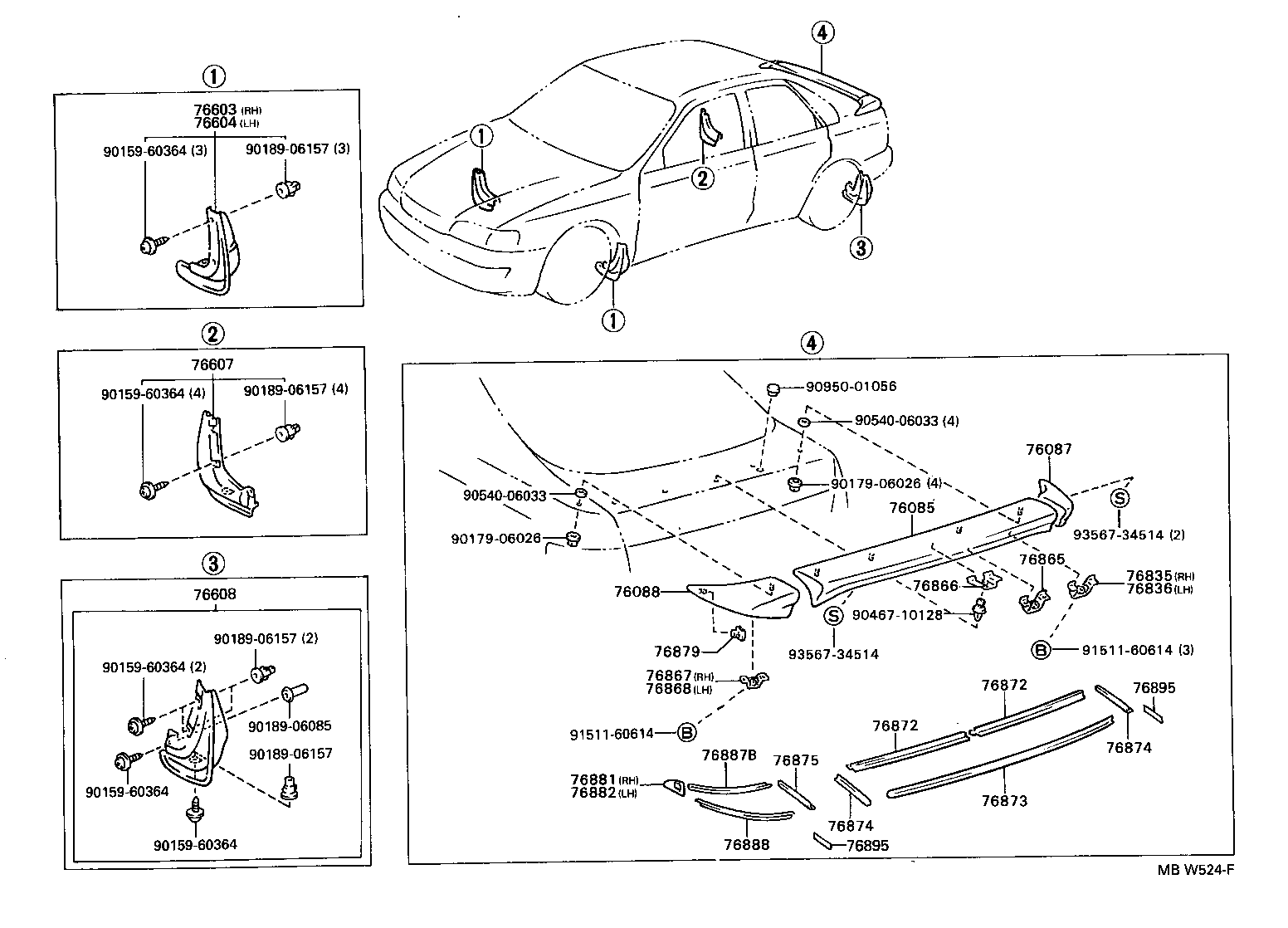

Mudguard & Spoiler
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76085 | Spoiler Sub-assy, Rear |
| 76087 | Spoiler Sub-assy, Rear NO.1 |
| 76088 | Spoiler Sub-assy, Rear NO.2 |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76835 | Retainer, Rear Spoiler Side, NO.1 |
| 76836 | Retainer, Rear Spoiler Side, NO.2 |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76865A | Retainer, Side Mudguard |
| 76866 | Retainer, Rear Spoiler, NO.2 |
| 76867 | Retainer, Rear Spoiler Side, RH |
| 76868 | Retainer, Rear Spoiler Side, LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76887B | Protector, Rear Spoiler Side, NO.2 |
| 76888 | Protector, Rear Spoiler Side, NO.3 |
| 76895 | Protector, Rear Spoiler, NO.5 |
| 76899 | Protector, Rear Spoiler, Side NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
