Toyota Carina E Sed/LB(JPP)
1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe
Discontinued model
Data version 1997-12

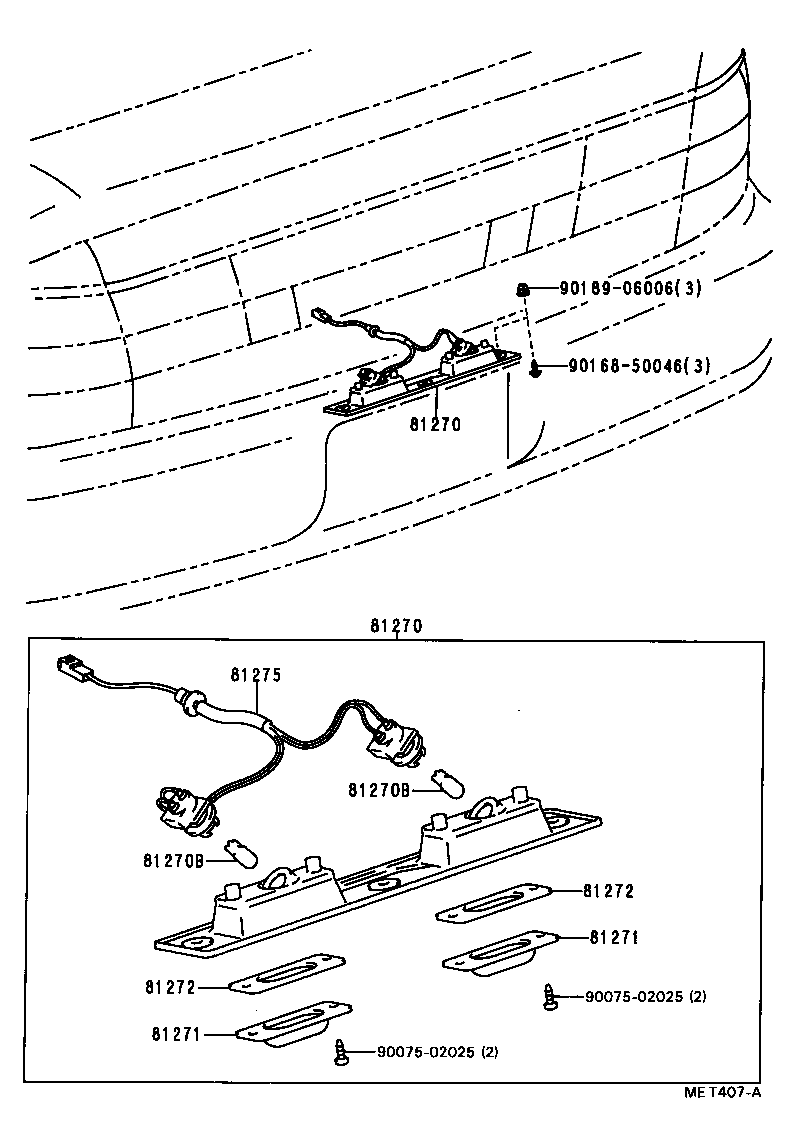

Rear License Plate Lamp
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81273A | Body, License Plate Lamp |
| 81275 | Socket And Wire, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
