Factory parts data · Europe

Toyota Carina E Sed/LB(JPP)

1992-02 → 1996-01 · chassis AT190,CT190,ST191 · catalogue 271530 · Europe

Discontinued model Data version 1997-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

Figure MET518C

MET518C 1992-02 → —

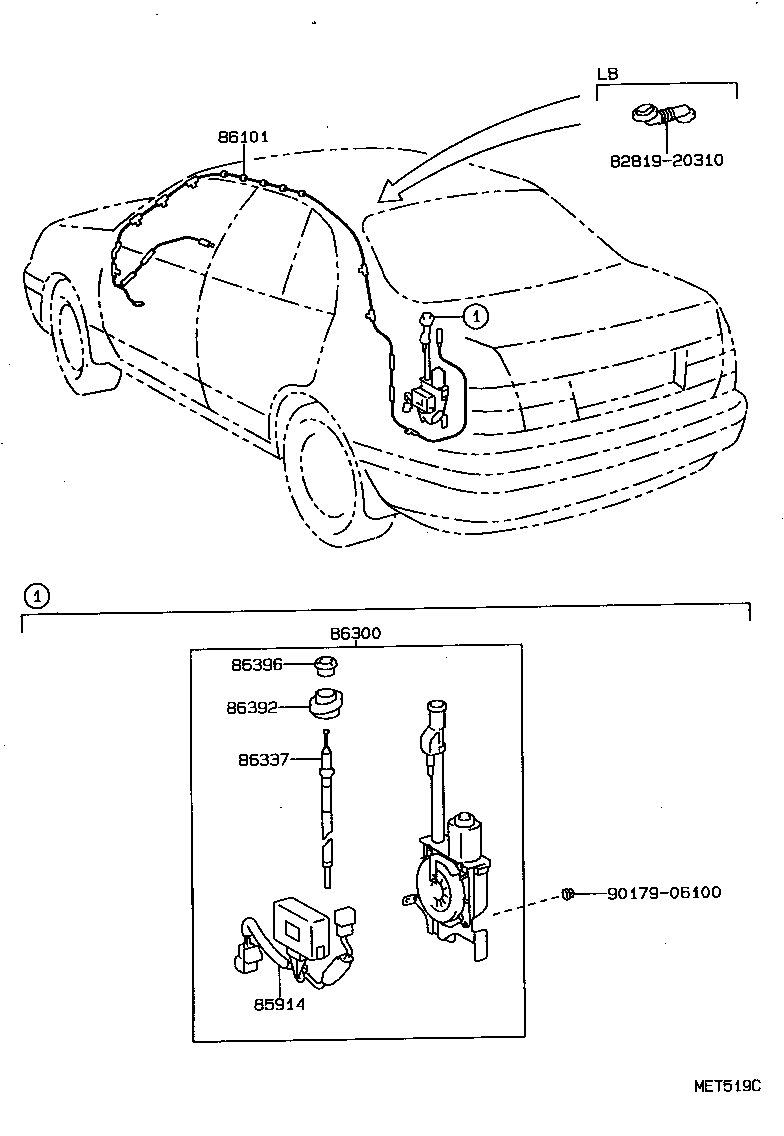

Figure MET519C

MET519C 1992-02 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86337	Rod & Pipe, Sealed W/Cable
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
