Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

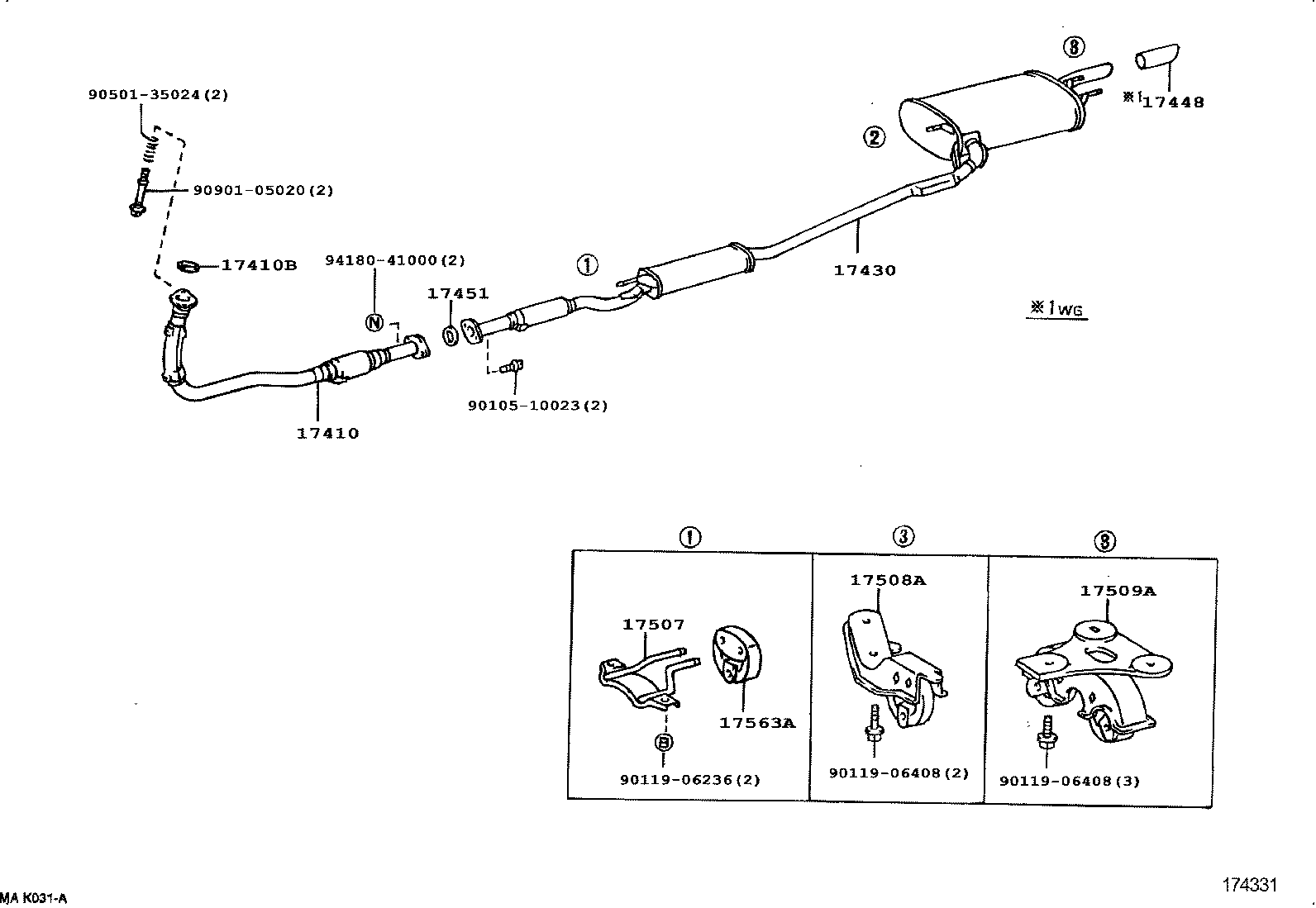

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-02130 |
Pipe Assy, Exhaust, Front
1992-12 → 1996-01
ended
|
4AFE AT190 UKP ATM;4AFE +5 | — | |
| 17410-02140 note |
Pipe Assy, Exhaust, Front
1992-12 → 1994-12
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 17410-02140 |
Pipe Assy, Exhaust, Front
1992-12 → 1994-12
ended
|
4AFE AT190 UKP RHD +1 | — | |
| 17410-02170 |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 17410-02260 |
Pipe Assy, Exhaust, Front
1994-12 → 1996-01
ended
|
4AFE AT190 UKP LHD +5 | — | |
| 17410-02260 note |
Pipe Assy, Exhaust, Front
1994-12 → 1996-01
ended
|
4AFE AT190 UKP LHD +2 | — | |
| 17410-02270 |
Pipe Assy, Exhaust, Front
1994-12 → 1996-01
ended
|
7AFE AT191 UKP | — | |
| 17410-02300 note |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 17410-02300 |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
4AFE AT190 UKP RHD;4AFE +4 | — | |
| 17410-02310 |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
7AFE AT191 UKP | — | |
| 17410-02320 note |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
4AFE AT190 UKP LHD +2 | — | |
| 17410-03080 |
Pipe Assy, Exhaust, Front
1992-12 → 1996-01
ended
|
3SFE ST191 UKP | — | |
| 17410-03210 |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
3SFE ST191 UKP | — | |
| 17410-0B010 |
Pipe Assy, Exhaust, Front
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 17410-64620 |
Pipe Assy, Exhaust, Front
1994-10 → 1996-01
ended
|
2C CT190 UKP | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-64010 |
Gasket, Exhaust Pipe
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1992-12 → 1996-01
ended
|
3SFE ST191 UKP;4AFE AT190 +7 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1994-10 → 1996-01
ended
|
2C CT190 UKP | — | |
| 90917-06064 |
Gasket, Exhaust Pipe
1992-12 → 1994-12
ended
|
4AFE AT190 UKP RHD +1 | — | |
| 90917-06064 note |
Gasket, Exhaust Pipe
1992-12 → 1994-12
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 90917-06064 note |
Gasket, Exhaust Pipe
1996-01 → 1997-10
ended
|
4AFE AT190 UKP LHD +2 | — | |
| 90917-06065 |
Gasket, Exhaust Pipe
1996-01 → 1997-10
ended
|
4AFE,7AFE,3SFE AT19#,ST191 UKP | — | |
| 90917-06065 |
Gasket, Exhaust Pipe
1994-12 → 1996-01
ended
|
7AFE AT191 UKP;4AFE AT190 +7 | — | |
| 90917-06065 note |
Gasket, Exhaust Pipe
1994-12 → 1996-01
ended
|
4AFE AT190 UKP LHD +2 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-02090 |
Pipe Assy, Exhaust, Tail
1992-12 → 1994-05
ended
|
4AFE AT190 UKP ATM;4AFE +4 | — | |
| 17430-02100 |
Pipe Assy, Exhaust, Tail
1992-12 → 1994-05
ended
|
4AFE AT190 UKP RHD +1 | — | |
| 17430-02100 note |
Pipe Assy, Exhaust, Tail
1992-12 → 1994-05
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 17430-02130 |
Pipe Assy, Exhaust, Tail
1994-05 → 1996-01
ended
|
4AFE,7AFE AT19# UKP | — | |
| 17430-02140 |
Pipe Assy, Exhaust, Tail
1996-01 → 1997-10
ended
|
3SFE ST191 UKP;4AFE AT190 +3 | — | |
| 17430-02150 note |
Pipe Assy, Exhaust, Tail
1996-01 → 1997-10
ended
|
4AFE AT190 UKP LHD +1 | — | |
| 17430-02150 |
Pipe Assy, Exhaust, Tail
1996-01 → 1997-10
ended
|
4AFE AT190 UKP RHD;4AFE +4 | — | |
| 17430-02170 |
Pipe Assy, Exhaust, Tail
1996-01 → 1997-10
ended
|
7AFE AT191 UKP | — | |
| 17430-03090 |
Pipe Assy, Exhaust, Tail
1992-12 → 1994-05
ended
|
3SFE ST191 UKP | — | |
| 17430-03110 |
Pipe Assy, Exhaust, Tail
1994-05 → 1996-01
ended
|
3SFE ST191 UKP | — | |
| 17430-0B010 |
Pipe Assy, Exhaust, Tail
1994-10 → 1996-01
ended
|
2C CT190 UKP | — | |
| 17430-0B020 |
Pipe Assy, Exhaust, Tail
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 17448 — Baffle, Tailpipe | ||||
| 17448-43020 |
Baffle, Tailpipe
1995-05 → 1997-10
ended
|
4AFE,7AFE,2C#,3SFE AT19#,CT190,ST191 UKP WG | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06041 |
Gasket, Exhaust Pipe
1992-12 → 1994-06
ended
|
3SFE ST191 UKP | — | |
| 90917-06046 |
Gasket, Exhaust Pipe
1992-12 → 1996-01
ended
|
4AFE,7AFE AT19# UKP | — | |
| 90917-06046 |
Gasket, Exhaust Pipe
1996-01 → 1997-10
ended
|
4AFE,7AFE,3SFE AT19#,ST191 UKP | — | |
| 90917-06048 |
Gasket, Exhaust Pipe
1994-10 → 1997-10
ended
|
2C# CT190 UKP | — | |
| 90917-06078 |
Gasket, Exhaust Pipe
1994-06 → 1996-01
ended
|
3SFE ST191 UKP | — | |
| 17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support | ||||
| 17507-0B010 |
Bracket Sub-assy, Exhaust Pipe NO.2 Support
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 17507-64040 |
Bracket Sub-assy, Exhaust Pipe NO.2 Support
1994-10 → 1996-01
ended
|
2C CT190 UKP | — | |
| 17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support | ||||
| 17508-74030 |
Bracket Sub-assy, Exhaust Pipe NO.3 Support
1992-12 → 1997-10
ended
|
4AFE,7AFE,2C#,3SFE AT19#,CT190,ST191 UKP | — | |
| 17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support | ||||
| 17509-74110 |
Bracket Sub-assy, Exhaust Pipe NO.4 Support
1992-12 → 1997-10
ended
|
4AFE,7AFE,2C#,3SFE AT19#,CT190,ST191 UKP | — | |
| 17563A — Support, Exhaust Pipe, NO.3 | ||||
| 17565-64180 |
Support, Exhaust Pipe, NO.3
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
