Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

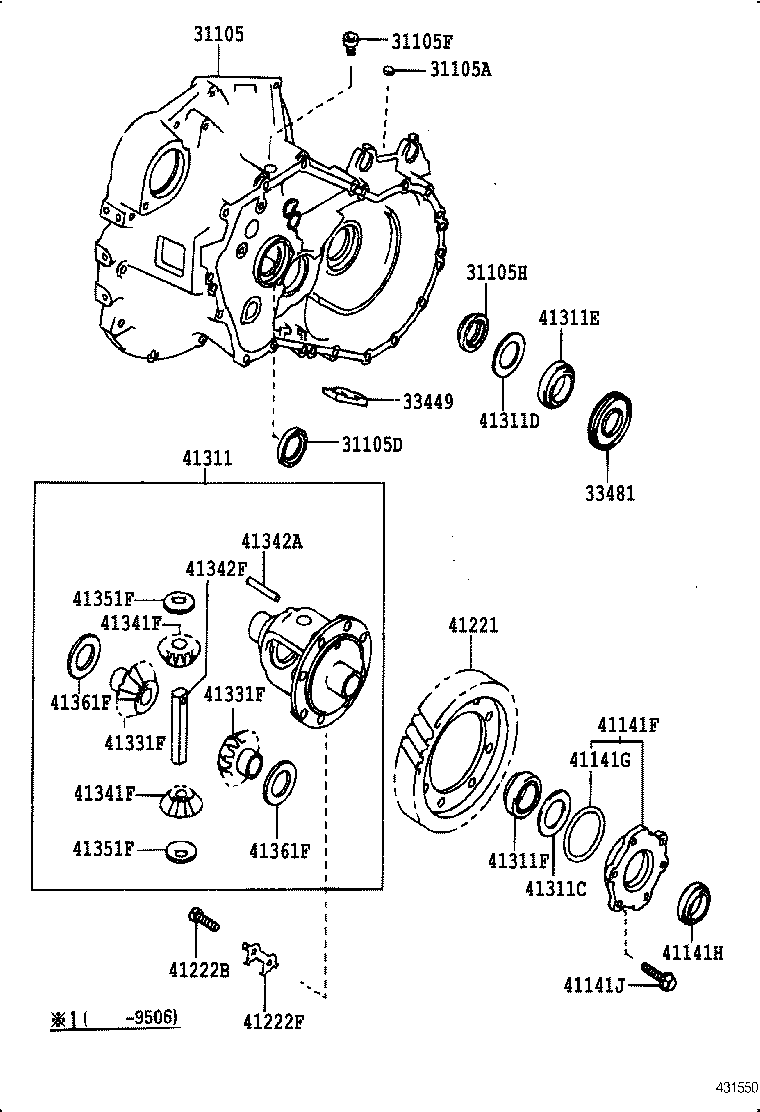

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105 — Case Sub-assy, Transaxle(MTM) | ||||
| 31105-32070 |
Case Sub-assy, Transaxle(MTM)
1997-04 → 1997-10
ended
|
CT190 UKP | — | |
| 31105-32080 |
Case Sub-assy, Transaxle(MTM)
1997-04 → 1997-10
ended
|
ST191 UKP MTM | — | |
| 31105-33020 |
Case Sub-assy, Transaxle(MTM)
1994-10 → 1997-04
ended
|
CT190 UKP | — | |
| 31105-33030 |
Case Sub-assy, Transaxle(MTM)
1992-12 → 1997-04
ended
|
ST191 UKP MTM | — | |
| 31105A — Plug, Tight(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
Plug, Tight(FOR FRONT TRANSAXLE CASE)
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 90331-08002 |
Plug, Tight(FOR FRONT TRANSAXLE CASE)
1992-12 → 1996-01
ended
|
AT19#,CT190 UKP MTM | — | |
| 31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25016 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1992-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 90311-30006 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 31105F — Plug(FOR TRANSAXLE CASE) | ||||
| 90341-10065 |
Plug(FOR TRANSAXLE CASE)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 31105H — Seal, Oil, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-34016 |
Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1992-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 90311-35019 |
Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1994-10 → 1995-07
ended
|
CT190,ST191 UKP MTM | — | |
| 90311-35026 |
Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1992-12 → 1994-10
ended
|
ST191 UKP MTM | — | |
| 90311-35033 |
Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1995-07 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 33449 — Magnet, Transmission | ||||
| 33449-12020 |
Magnet, Transmission
1992-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 33449-32020 |
Magnet, Transmission
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 33481 — Gear, Speedometer Drive (MTM) | ||||
| 33481-12040 note |
Gear, Speedometer Drive (MTM)
1992-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 33481-32060 note |
Gear, Speedometer Drive (MTM)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41141F — Retainer, Front Differential Side Bearing | ||||
| 41101-32010 |
Retainer, Front Differential Side Bearing
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41141G — Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-63004 |
Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41141H — Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90311-35019 |
Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1994-10 → 1995-07
ended
|
CT190,ST191 UKP MTM | — | |
| 90311-35026 |
Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1992-12 → 1994-10
ended
|
ST191 UKP MTM | — | |
| 90311-35033 |
Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1995-07 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41141J — Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-08061 note |
Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41221 — Gear, Front Differential Ring | ||||
| 41221-12190 |
Gear, Front Differential Ring
1996-01 → 1997-10
ended
|
AT191 UKP ATM | — | |
| 41221-12330 |
Gear, Front Differential Ring
1992-12 → 1994-12
ended
|
AT190 UKP LHD MTM | — | |
| 41221-12330 |
Gear, Front Differential Ring
1994-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 41221-12340 note |
Gear, Front Differential Ring
1992-12 → 1993-08
ended
|
AT190 UKP LHD MTM | — | |
| 41221-12340 |
Gear, Front Differential Ring
1992-12 → 1994-12
ended
|
AT190 UKP RHD MTM | — | |
| 41221-12340 note |
Gear, Front Differential Ring
1993-08 → 1994-12
ended
|
AT190 UKP LHD MTM | — | |
| 41221-20230 |
Gear, Front Differential Ring
1992-12 → 1996-01
ended
|
AT190 UKP ATM | — | |
| 41221-20290 |
Gear, Front Differential Ring
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 41221-32080 |
Gear, Front Differential Ring
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM (EFI,TD) | — | |
| 41221-32090 |
Gear, Front Differential Ring
1994-10 → 1996-01
ended
|
CT190 UKP | — | |
| 41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1992-12 → 1995-06
ended
|
CT190,ST191 UKP MTM | — | |
| 90101-11353 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-01 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 90101-11353 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1992-12 → 1995-01
ended
|
AT19# UKP;ST191 UKP ATM | — | |
| 90105-11040 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-01 → 1995-06
ended
|
AT19# UKP MTM | — | |
| 90105-11040 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-06 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41222F — Plate, Fornt Differential Ring Gear Set Bolt Lock | ||||
| 41222-12040 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1992-12 → 1995-01
ended
|
AT19# UKP MTM | — | |
| 41222-12050 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1992-12 → 1997-10
ended
|
AT19# UKP ATM | — | |
| 41222-20030 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 41222-32010 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1992-12 → 1995-06
ended
|
CT190,ST191 UKP MTM | — | |
| 41311 — Case, Front Differential | ||||
| 41301-12040 |
Case, Front Differential
1992-12 → 1994-12
ended
|
AT190 UKP MTM | — | |
| 41301-12041 |
Case, Front Differential
1994-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 41301-17021 |
Case, Front Differential
1992-12 → 1993-08
ended
|
AT190 UKP ATM | — | |
| 41301-20112 |
Case, Front Differential
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 41301-20150 |
Case, Front Differential
1993-08 → 1997-10
ended
|
AT19# UKP ATM | — | |
| 41301-32060 |
Case, Front Differential
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41311C — Shim (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45001 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45002 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45003 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45004 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45005 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45006 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45007 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45008 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45009 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45010 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45011 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45012 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45013 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45014 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45015 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45016 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45017 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45018 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45019 note |
Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 41311D — Shim (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45011 note |
Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90564-45015 note |
Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90366-38004 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 90366-40016 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
AT19# UKP ATM | — | |
| 90368-40002 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90366-40023 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1995-08
ended
|
CT190,ST191 UKP MTM | — | |
| 90366-40064 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1997-10
ended
|
CT190,ST191 UKP MTM | — | |
| 90366-42001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-08 → 1997-10
ended
|
AT19# UKP ATM | — | |
| 90366-44001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1997-10
ended
|
ST191 UKP ATM | — | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-08 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1992-12 → 1993-08
ended
|
AT190 UKP | — | |
| 41331F — Gear, Front Differential Side | ||||
| 41331-12011 |
Gear, Front Differential Side
1992-12 → 1997-10
ended
|
AT19# UKP | — | |
| 41331-32010 |
Gear, Front Differential Side
1992-12 → 1997-10
ended
|
CT190,ST191 UKP | — | |
| 41341F — Pinion, Front Differential | ||||
| 41341-12030 |
Pinion, Front Differential
1992-12 → 1997-10
ended
|
AT19# UKP | — | |
| 41341-22030 |
Pinion, Front Differential
1992-12 → 1996-01
ended
|
CT190,ST191 UKP | — | |
| 41341-30011 |
Pinion, Front Differential
1996-01 → 1997-10
ended
|
CT190,ST191 UKP | — | |
| 41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP | — | |
| 41342F — Shaft, Front Differential Pinion, NO.1 | ||||
| 41342-12140 |
Shaft, Front Differential Pinion, NO.1
1992-12 → 1993-08
ended
|
AT190 UKP | — | |
| 41342-12140 |
Shaft, Front Differential Pinion, NO.1
1993-08 → 1997-10
ended
|
AT19# UKP MTM | — | |
| 41342-20060 |
Shaft, Front Differential Pinion, NO.1
1993-08 → 1997-10
ended
|
AT19# UKP ATM | — | |
| 41342-32020 |
Shaft, Front Differential Pinion, NO.1
1992-12 → 1997-10
ended
|
CT190,ST191 UKP | — | |
| 41351F — Washer, Front Differential Pinion Thrust | ||||
| 41351-12020 |
Washer, Front Differential Pinion Thrust
1992-12 → 1997-10
ended
|
AT19# UKP | — | |
| 41351-32010 |
Washer, Front Differential Pinion Thrust
1992-12 → 1997-10
ended
|
CT190,ST191 UKP | — | |
| 41361F — Washer, Front Differential Side Gear Thrust, NO.1 | ||||
| 41361-17010 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-17020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-17030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-17040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-17050 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-17060 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,ST191 UKP ATM | — | |
| 41361-22020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41361-22030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41361-22040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41361-22140 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41361-22150 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
| 41361-22160 note |
Washer, Front Differential Side Gear Thrust, NO.1
1992-12 → 1997-10
ended
|
AT19#,CT190,ST191 UKP MTM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
