Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

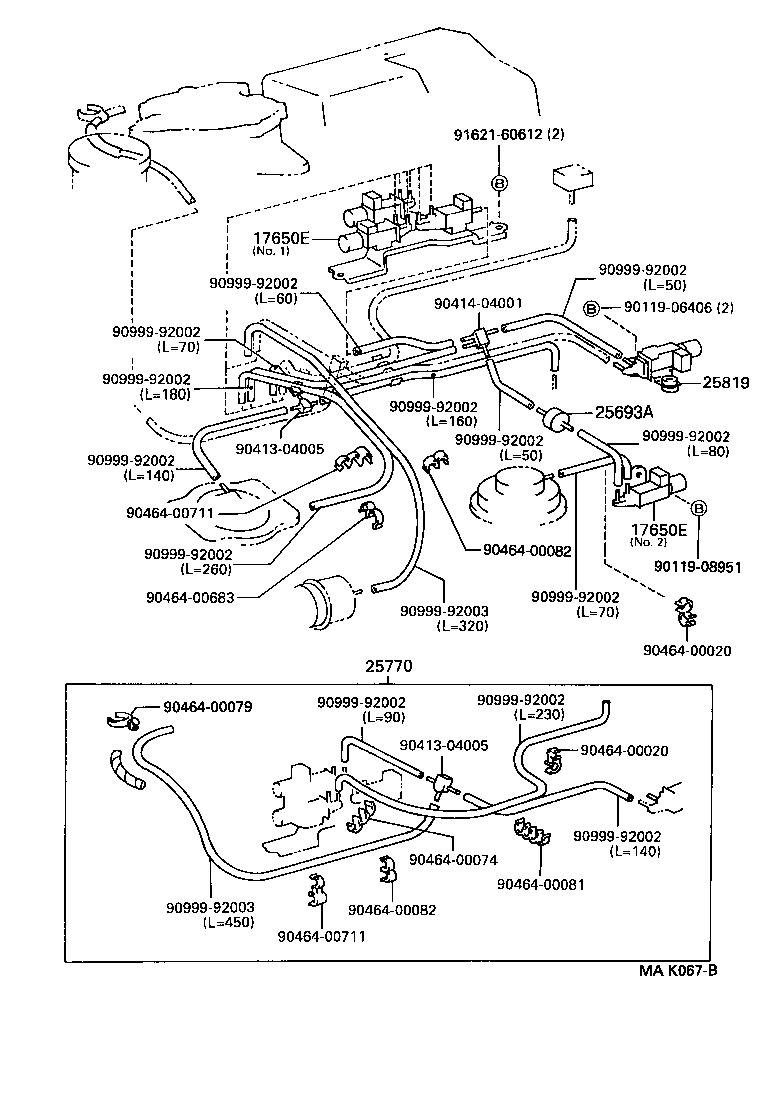

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17650E — Valve, Vacuum Switching | ||||
| 25860-64130 note |
Valve, Vacuum Switching
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 25860-64150 note |
Valve, Vacuum Switching
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 25693A — Damper, Egr Vacuum Modulator | ||||
| 25693-64010 |
Damper, Egr Vacuum Modulator
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 25770 — Hose Assy, Vacuum Transmitting, NO.2 | ||||
| 25770-64080 |
Hose Assy, Vacuum Transmitting, NO.2
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
| 25819 — Valve Assy, Vacuum Regulating | ||||
| 25819-64030 |
Valve Assy, Vacuum Regulating
1994-10 → 1996-01
ended
|
2C CT190 UKP LHD | — | |
| 25819-64070 |
Valve Assy, Vacuum Regulating
1996-01 → 1997-10
ended
|
2CT CT190 UKP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
