Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

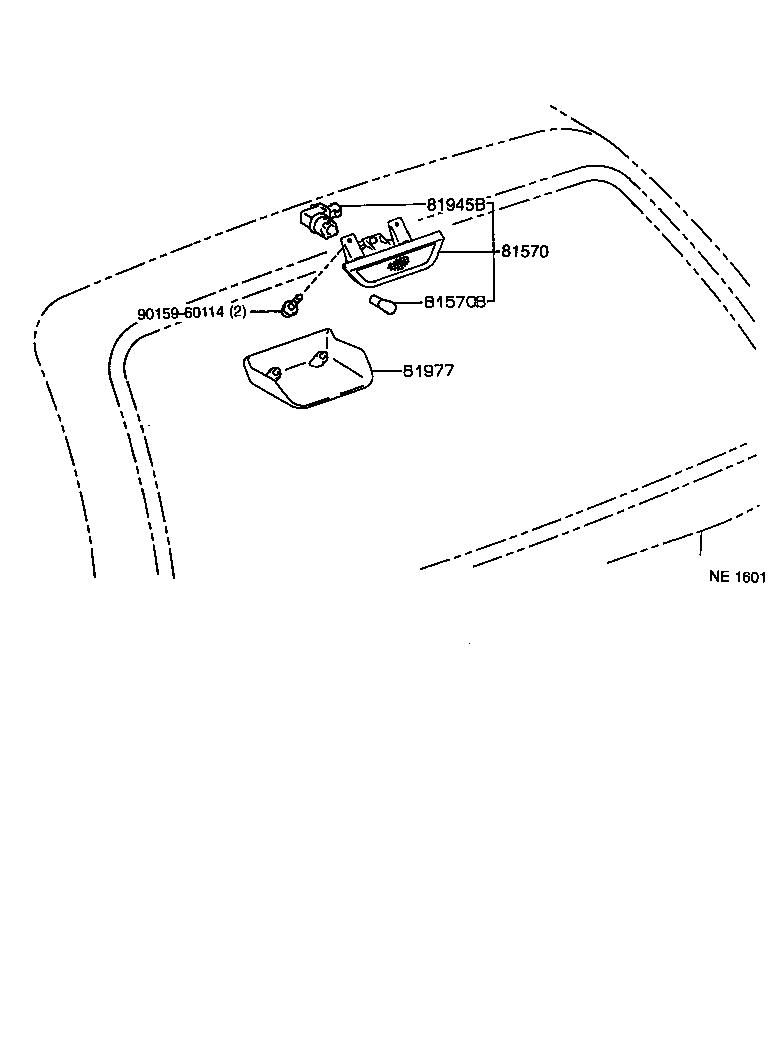

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-05010-C0 note |
Lamp Assy, Center Stop
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP SED | — | |
| 81570-05020 |
Lamp Assy, Center Stop
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP LB | — | |
| 81570-05030-C0 note |
Lamp Assy, Center Stop
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP WG | — | |
| 81570-20181 note |
Lamp Assy, Center Stop
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP SED GL | — | |
| 81570-20211 note |
Lamp Assy, Center Stop
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP LB GL | — | |
| 81570B — Bulb (FOR CENTER STOP LAMP) | ||||
| 90080-81035 note |
Bulb (FOR CENTER STOP LAMP)
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP | — | |
| 81945B — Socket, Stop Center Lamp Bulb | ||||
| 81945-05010 |
Socket, Stop Center Lamp Bulb
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP (SED,WG) | — | |
| 81945-05020 |
Socket, Stop Center Lamp Bulb
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP LB | — | |
| 81977 — Cover, Center Stop Lamp | ||||
| 81977-05010-B0 note |
Cover, Center Stop Lamp
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP SED | — | |
| 81977-05010-J0 note |
Cover, Center Stop Lamp
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP SED | — | |
| 81977-05020-B0 note |
Cover, Center Stop Lamp
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP LB | — | |
| 81977-05020-J0 note |
Cover, Center Stop Lamp
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP LB | — | |
| 81977-05030-C0 note |
Cover, Center Stop Lamp
1996-01 → 1997-10
ended
|
AT19#,CT190,ST191 UKP WG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
