Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

23 part groups · 9 illustrations

Illustrations

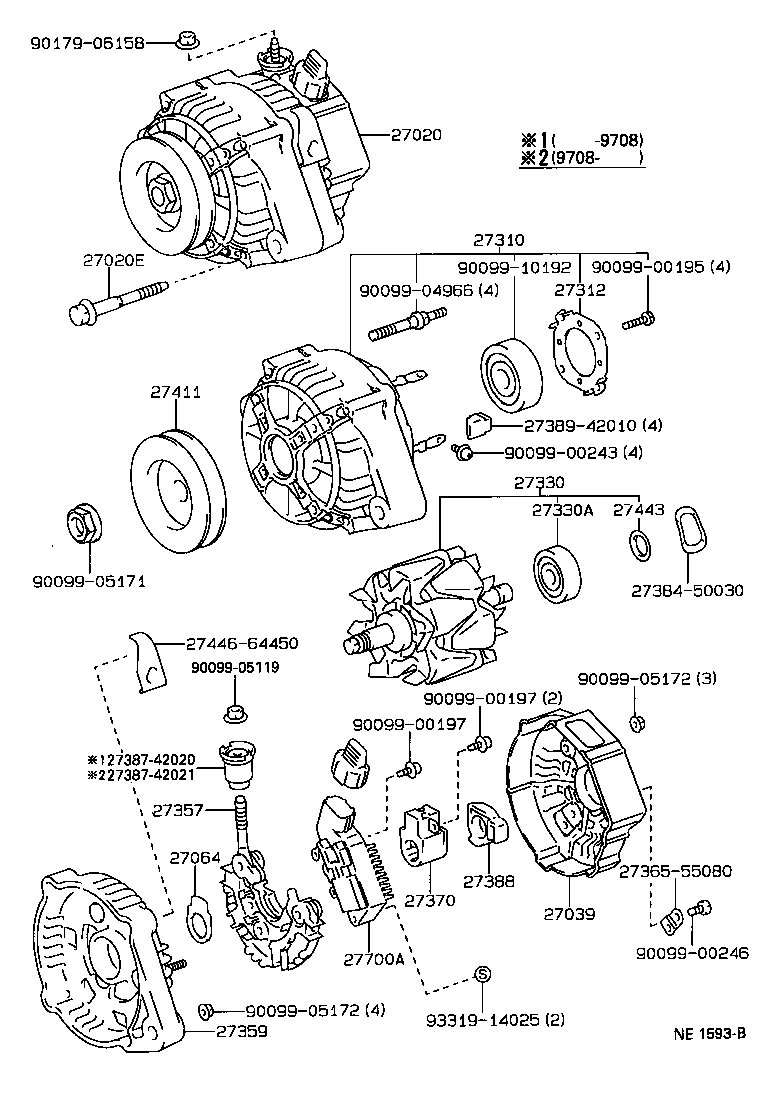

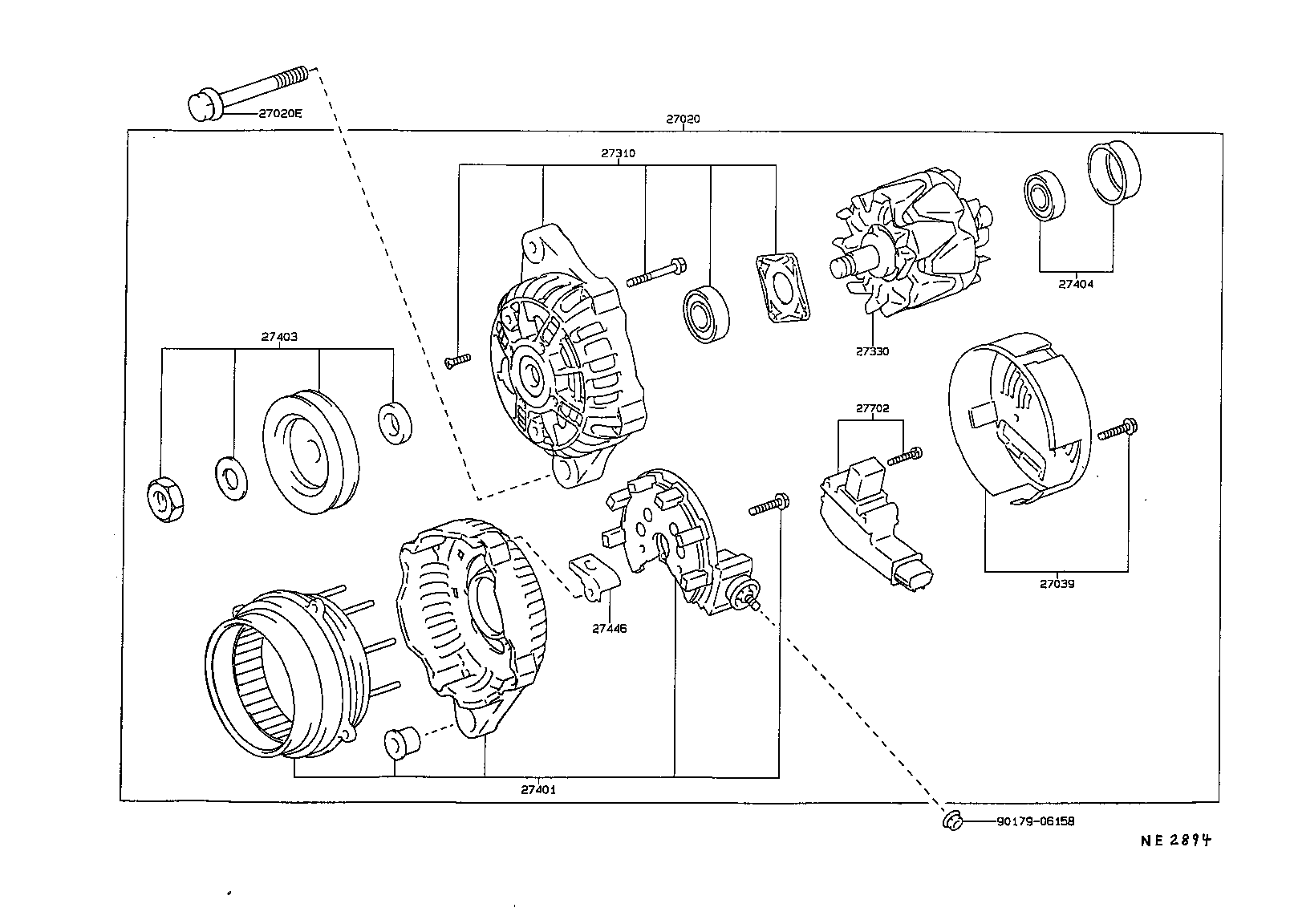

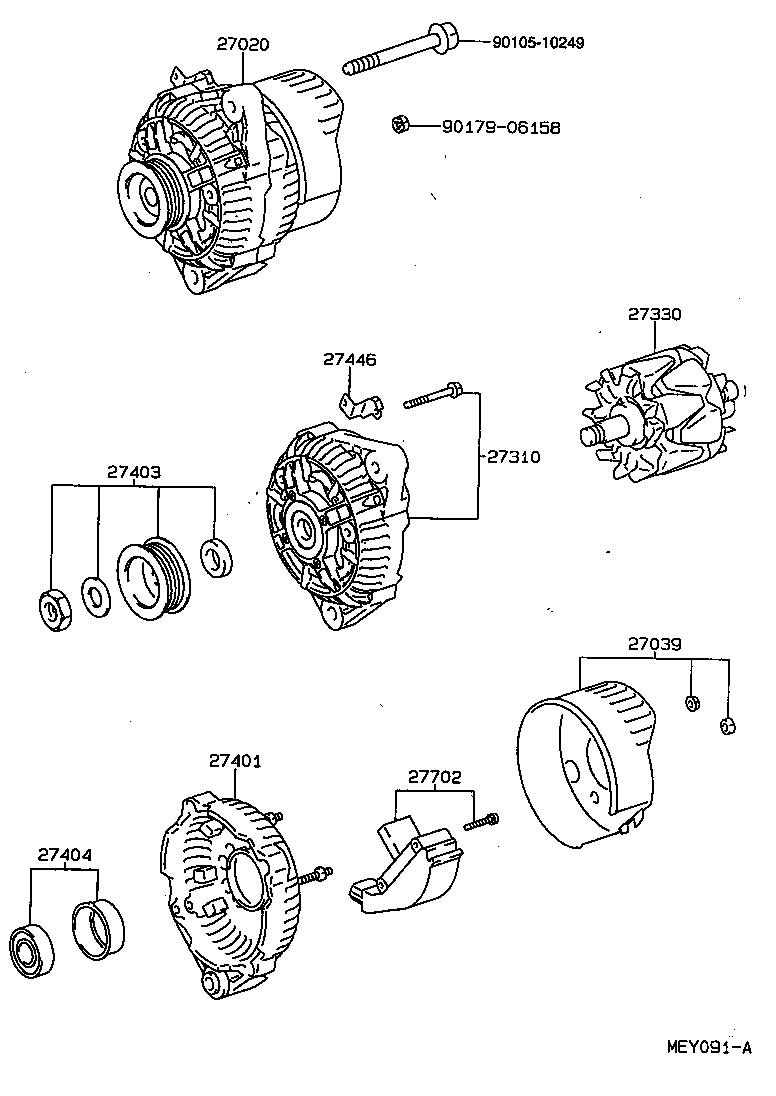

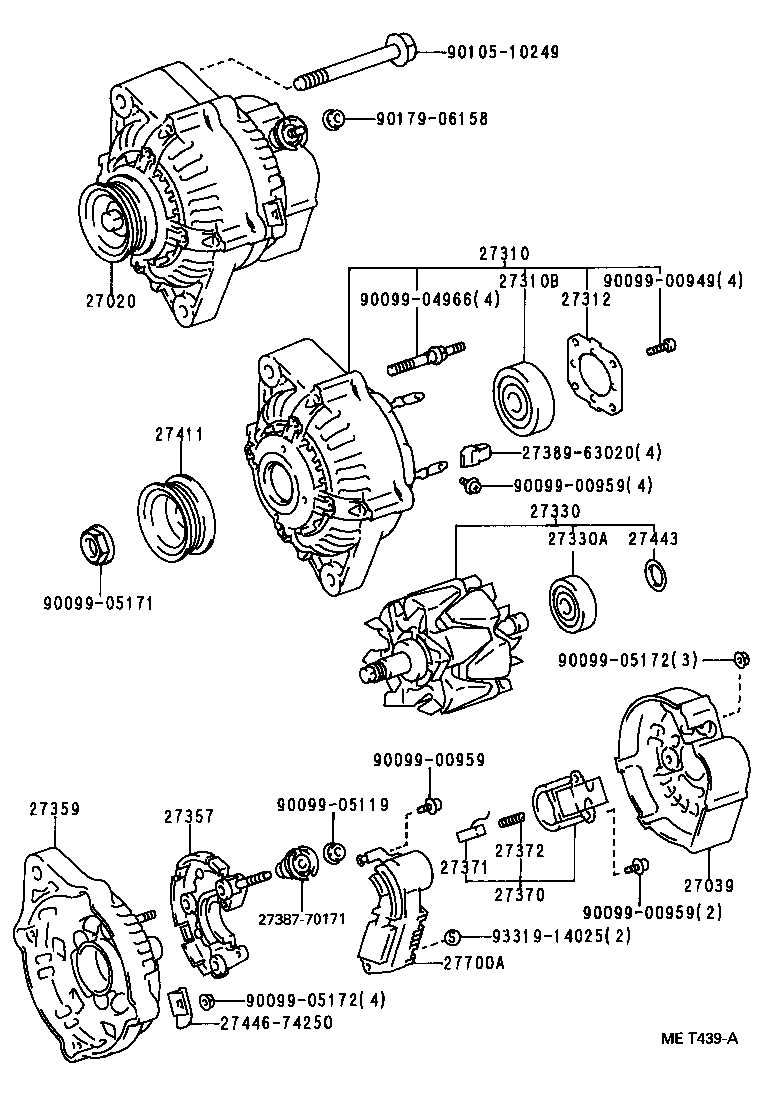

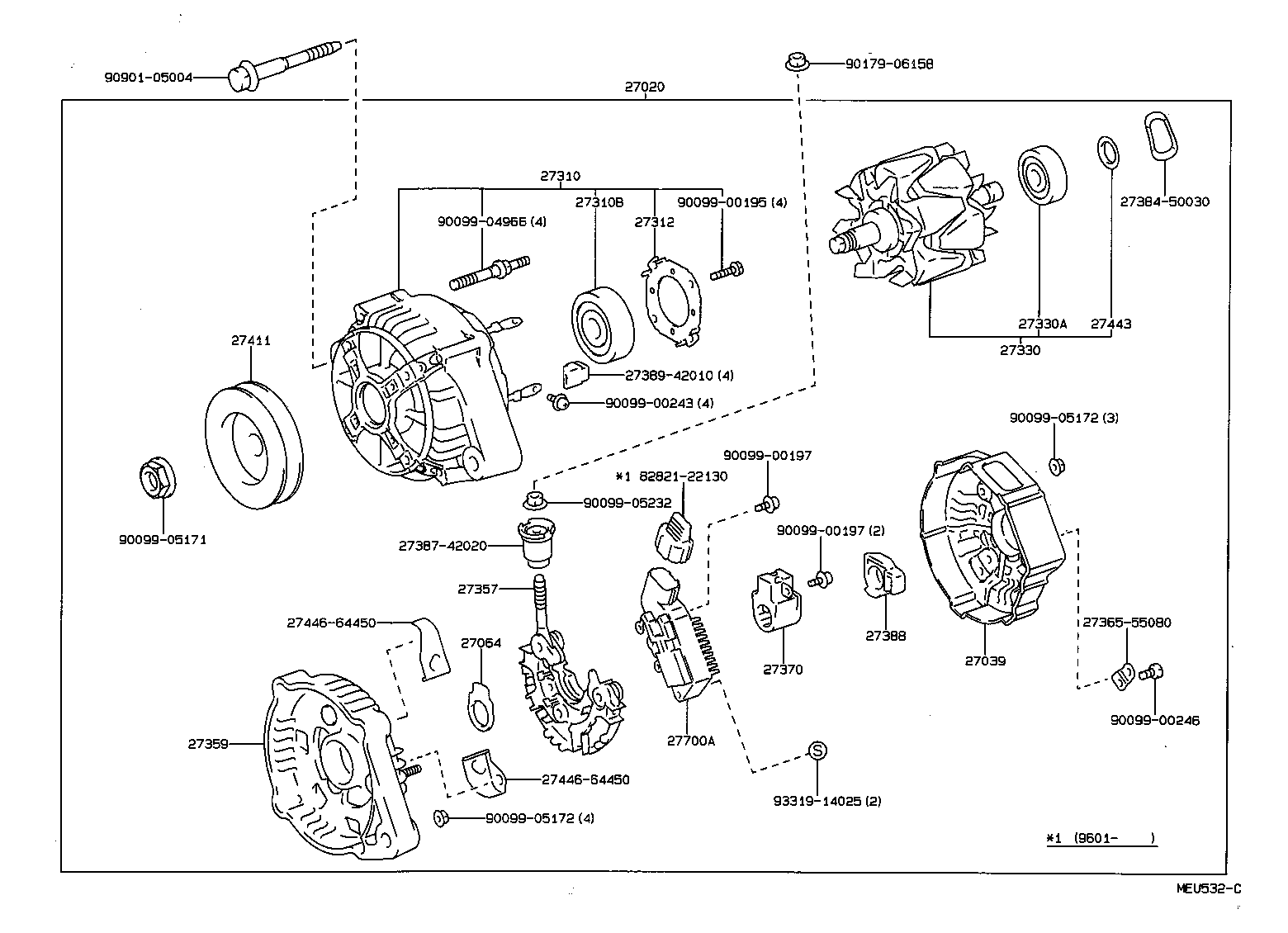

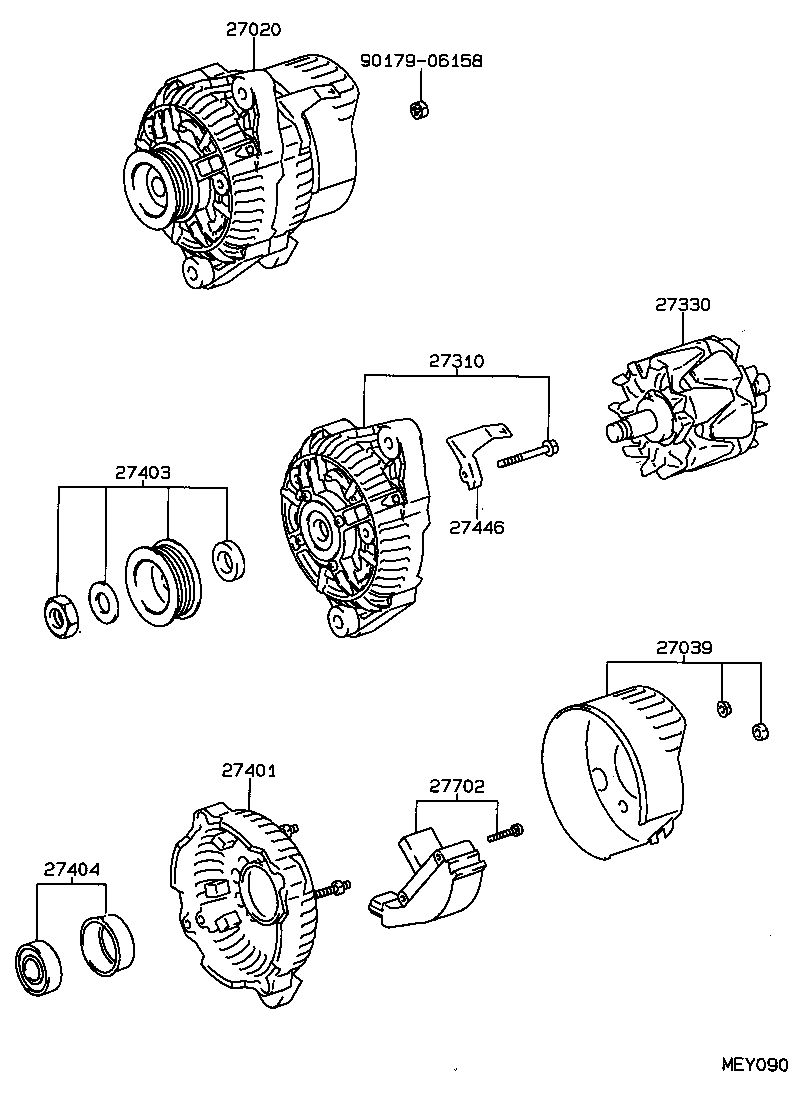

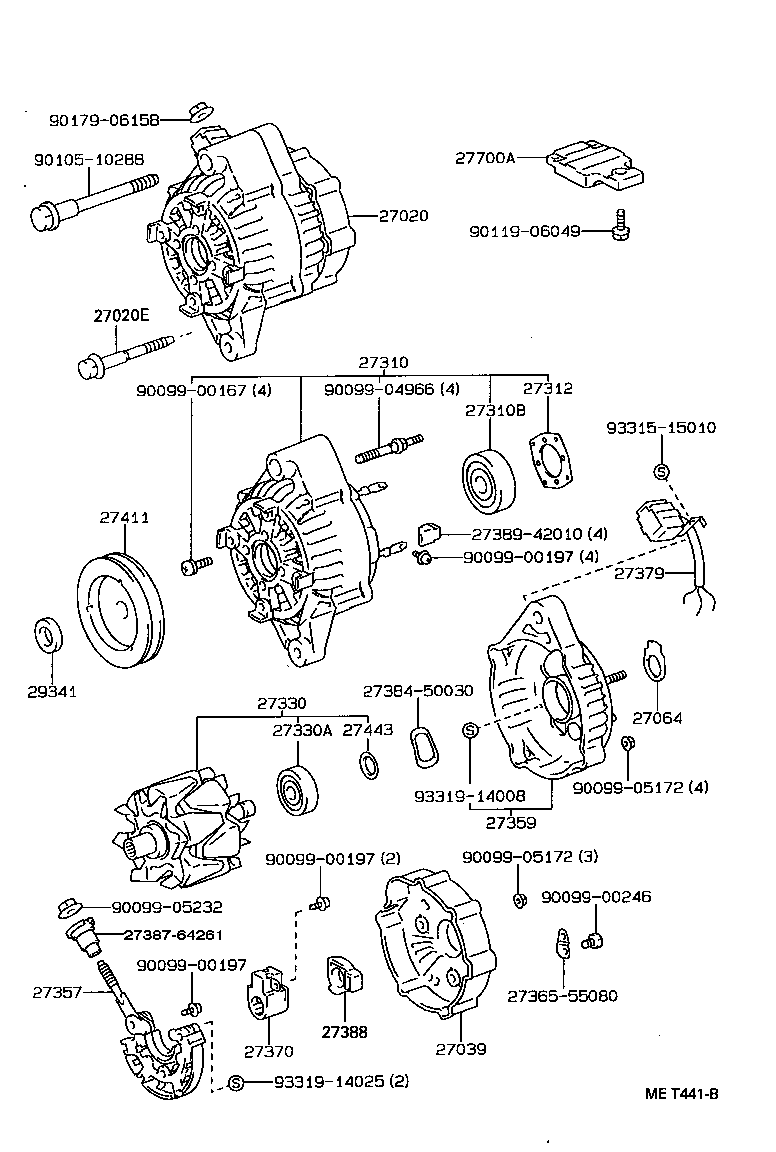

Figure MET437C MET437C 1992-02 → — Figure MEY090 MEY090 1993-08 → — Figure MET439A MET439A 1992-02 → — Figure MEY091A MEY091A 1993-08 → — Figure MET441B MET441B 1992-02 → — Figure MEU532C MEU532C 1992-11 → — Figure MEU532C MEU532C 1992-12 → — Figure NE1593B NE1593B 1996-01 → — Figure NE2894 NE2894 1996-09 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27388 Cover, Alternator Brush
27401 Stator Sub-assy Alternator W/Rectifier
27403 Pulley Set, Alternator
27404 Bearing Set, Alternator
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
27446 Clip, Alternator Cord
27700A Regulator Assy, Generator
27702 Regulator Sub-assy Generator W/Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
