Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

59 part groups · 7 illustrations

Illustrations

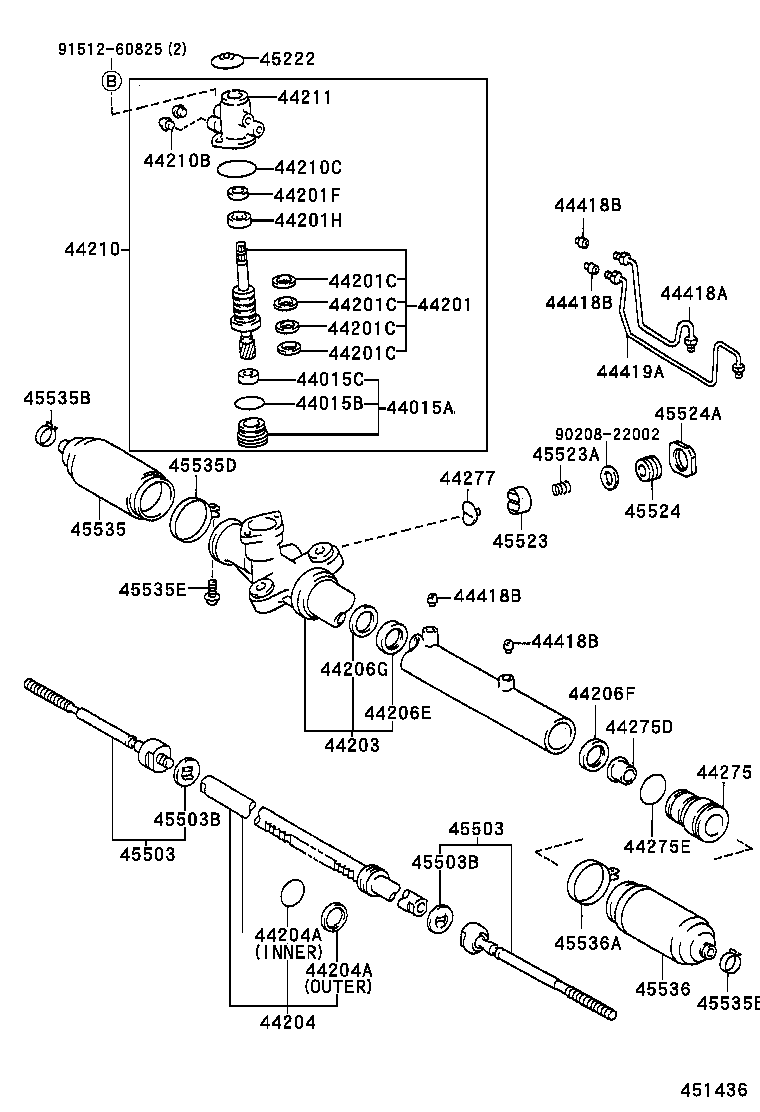

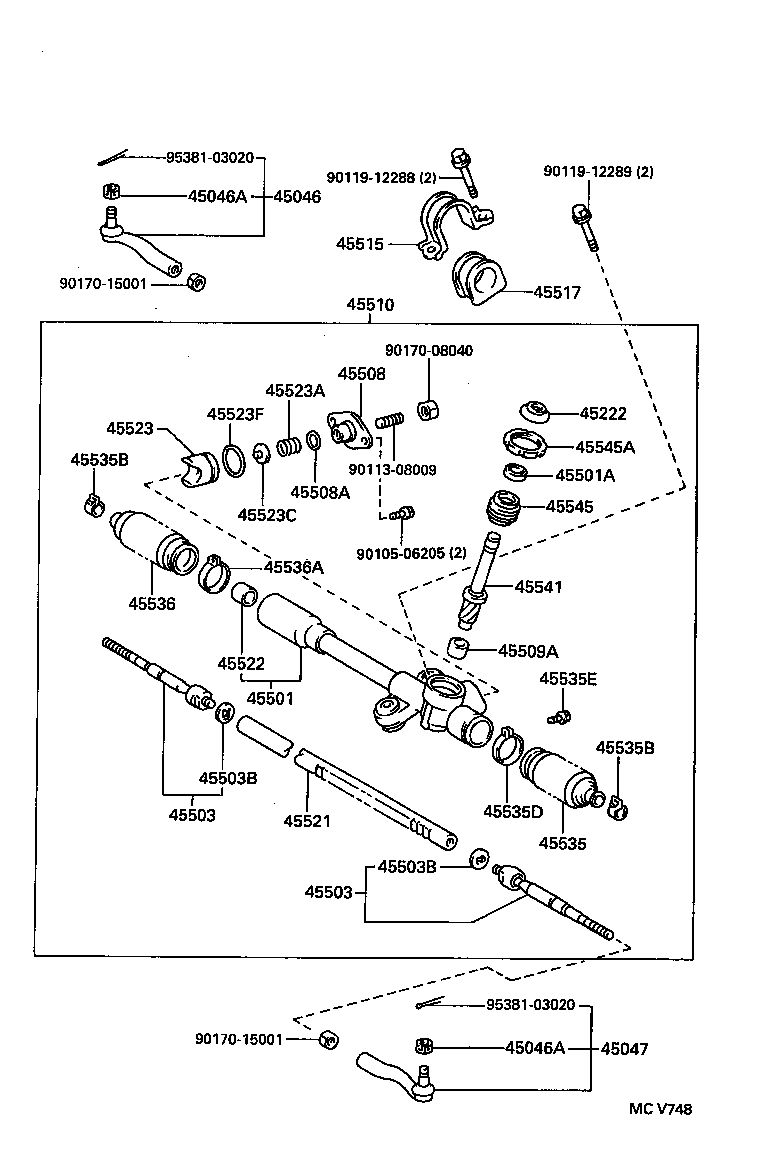

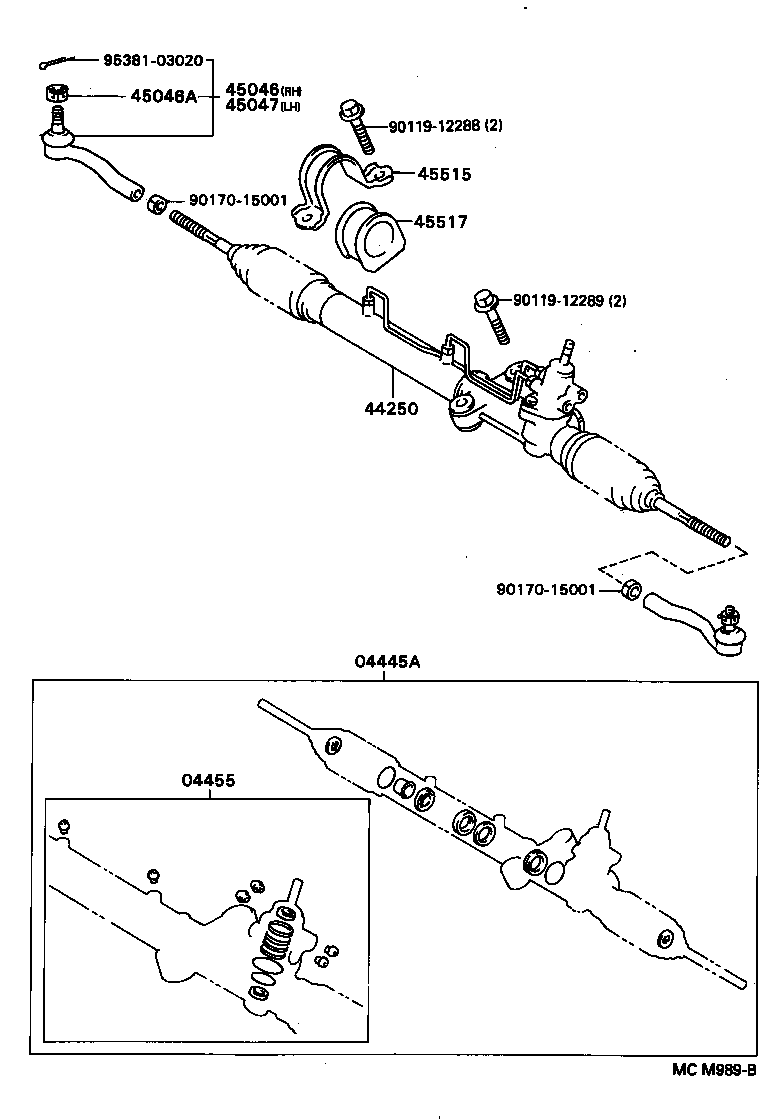

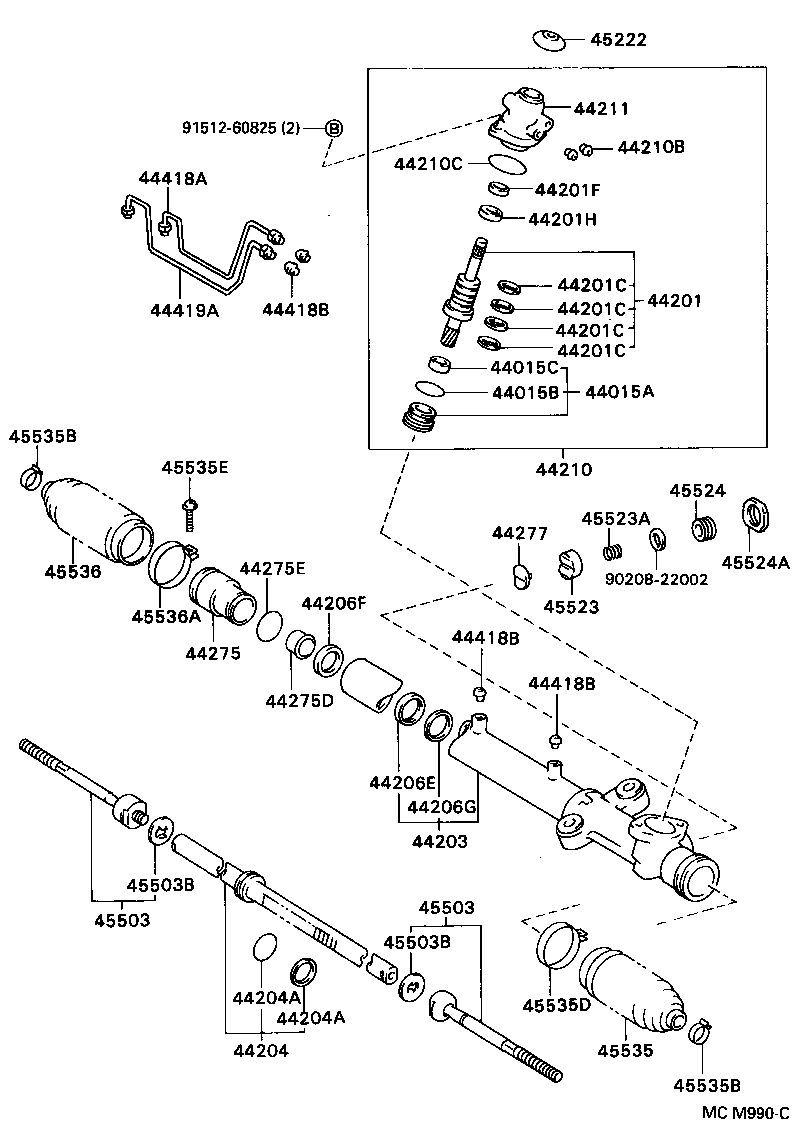

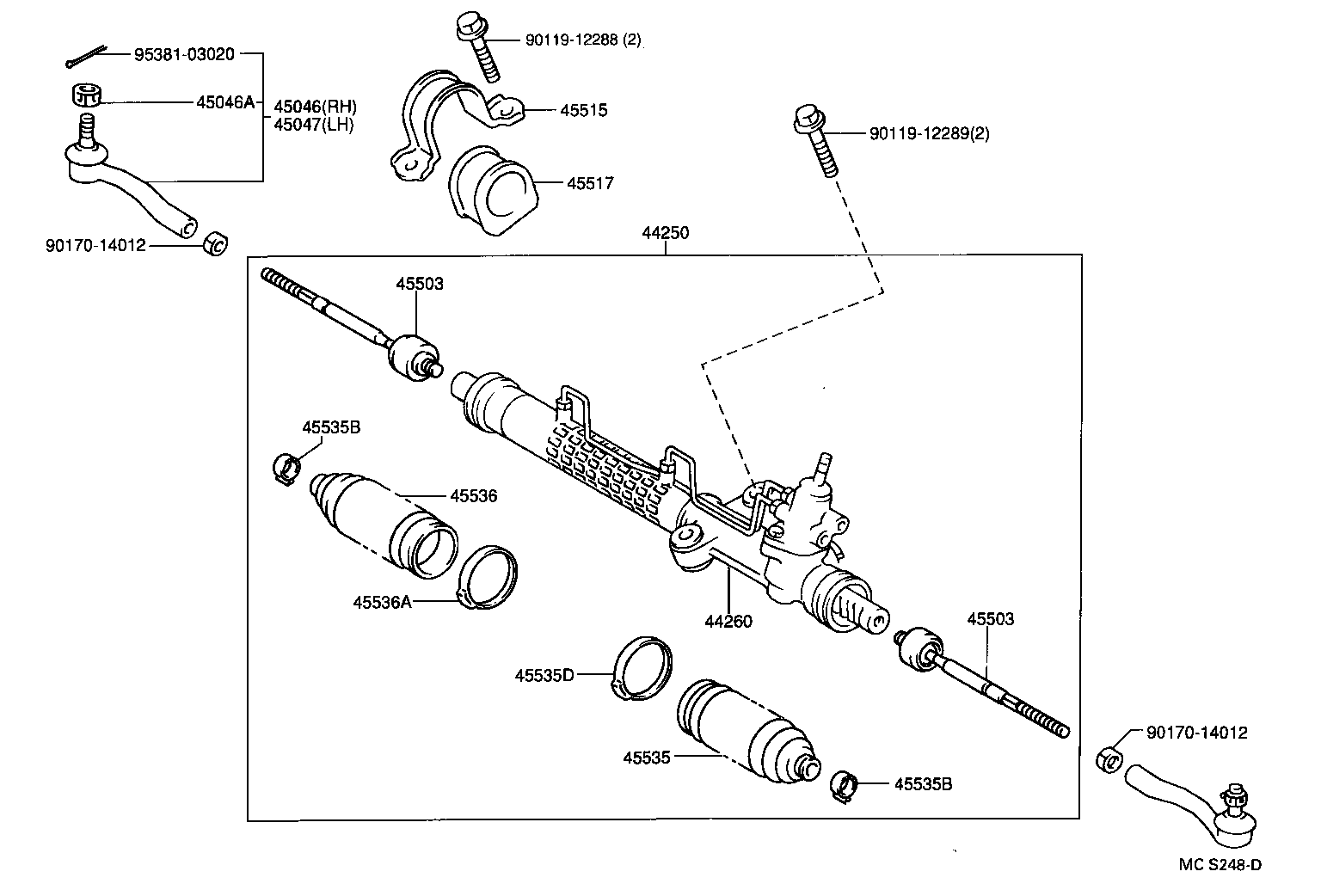

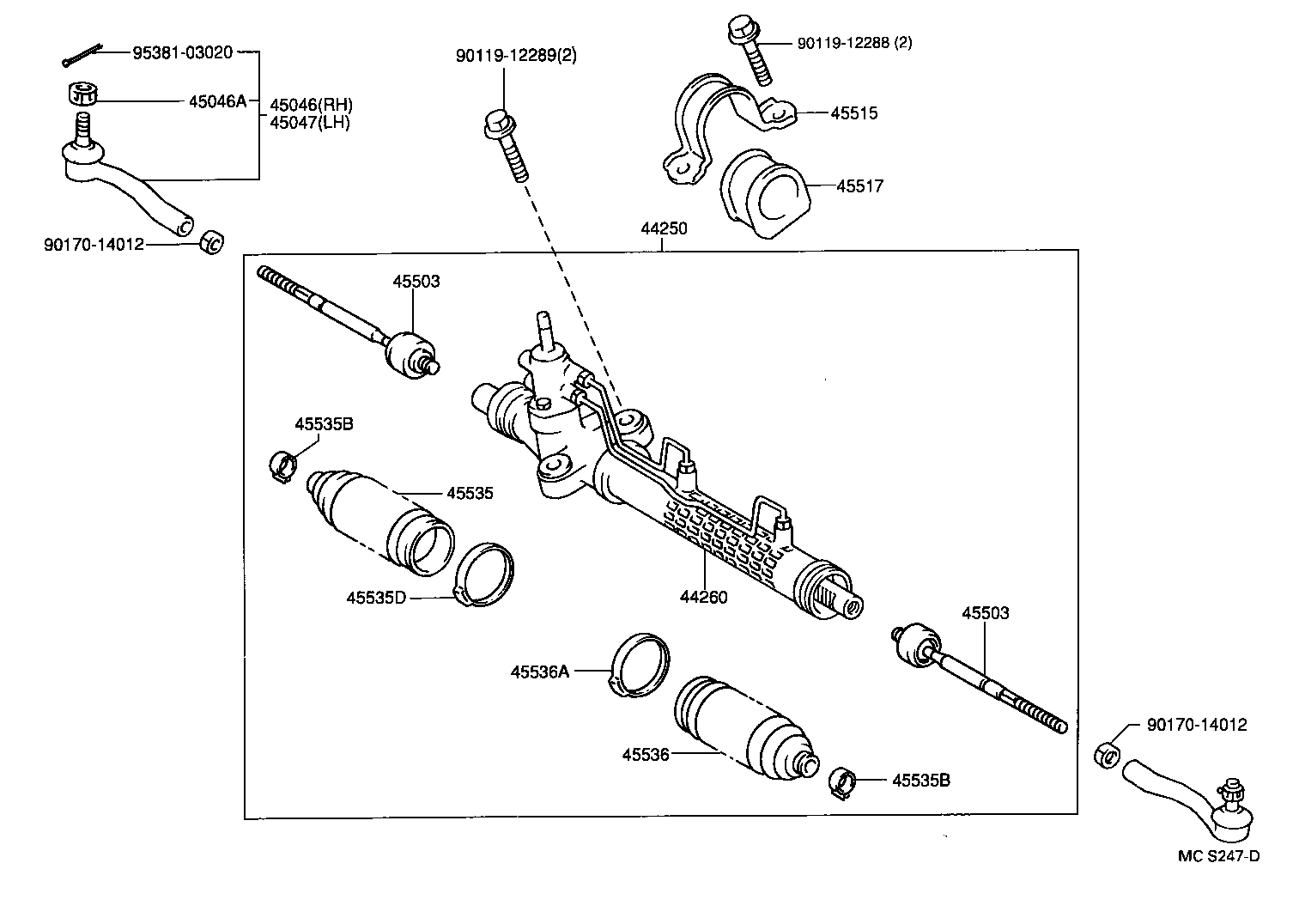

Figure MCM980B MCM980B 1992-02 → 1995-01 Figure 451436 451436 1992-02 → 1996-01 Figure MCS247D MCS247D 1994-12 → — Figure MCM989B MCM989B 1992-02 → 1996-01 Figure MCM990C MCM990C 1992-02 → 1996-01 Figure MCS248D MCS248D 1994-12 → — Figure MCV748 MCV748 1992-02 → 1995-01

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44015A Nut Sub-assy, Bearing Guide
44015B Ring, O(FOR BEARING GUIDE NUT)
44015C Seal, Oil(FOR BEARING GUIDE NUT)
44201 Valve Sub-assy, Power Steering Control
44201C Ring(FOR POWER STEERING CONTROL VALVE)
44201F Seal, Oil(FOR POWER STEERING CONTROL VALVE)
44201H Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
44203 Housing Sub-assy, Power Steering Rack
44204 Rack Sub-assy, Power Steering
44204A Ring(FOR RACK STEERING PISTON)
44206E Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
44206F Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE)
44206G Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210 Valve Assy, Power Steering Control
44210B Seat, Union(FOR POWER STEERING CONTROL VALVE)
44210C Ring, O(FOR POWER STEERING CONTROL VALVE)
44211 Housing, Control Valve
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44260 Cylinder Assy, Power Steering Power
44275 Stopper, Cylinder End
44275D Bush(FOR CYLINDER END STOPPER)
44275E Ring, O(FOR RACK END GUIDE)
44277 Seat, Rack Guide
44418A Tube, Steering Right Turn Pressure
44418B Seat, Union(FOR STEERING TURN PRESSURE TUBE)
44419A Tube, Steering Left Turn Pressure
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45222 Cover, Steering Gear Dust
45501 Housing Sub-assy, Steering Rack
45501A Seal, Type T Oil(FOR STEERING RACK HOUSING)
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45508 Cover Sub-assy, Steering Rack Guide Spring
45508A Ring, O(FOR STEERING RACK GUIDE SPRING COVER)
45509A Bearing(FOR STEERING PINION)
45510 Gear Assy, Steering
45515 Bracket, Steering Rack Housing, NO.2
45517 Grommet, Steering Rack Housing, NO.2
45521 Rack, Steering
45522 Bush, Steering Rack
45523 Guide, Rack(FOR STEERING GEAR)
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45523C Spacer(FOR RACK GUIDE)
45523F Ring, O(FOR STEERING GEAR GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45535E Screw(FOR STEERING RACK BOOT CLAMP)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45541 Pinion, Steering
45545 Screw, Pinion Bearing Adjusting
45545A Nut(FOR PINION BEARING ADJUSTING SCREW)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
