Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

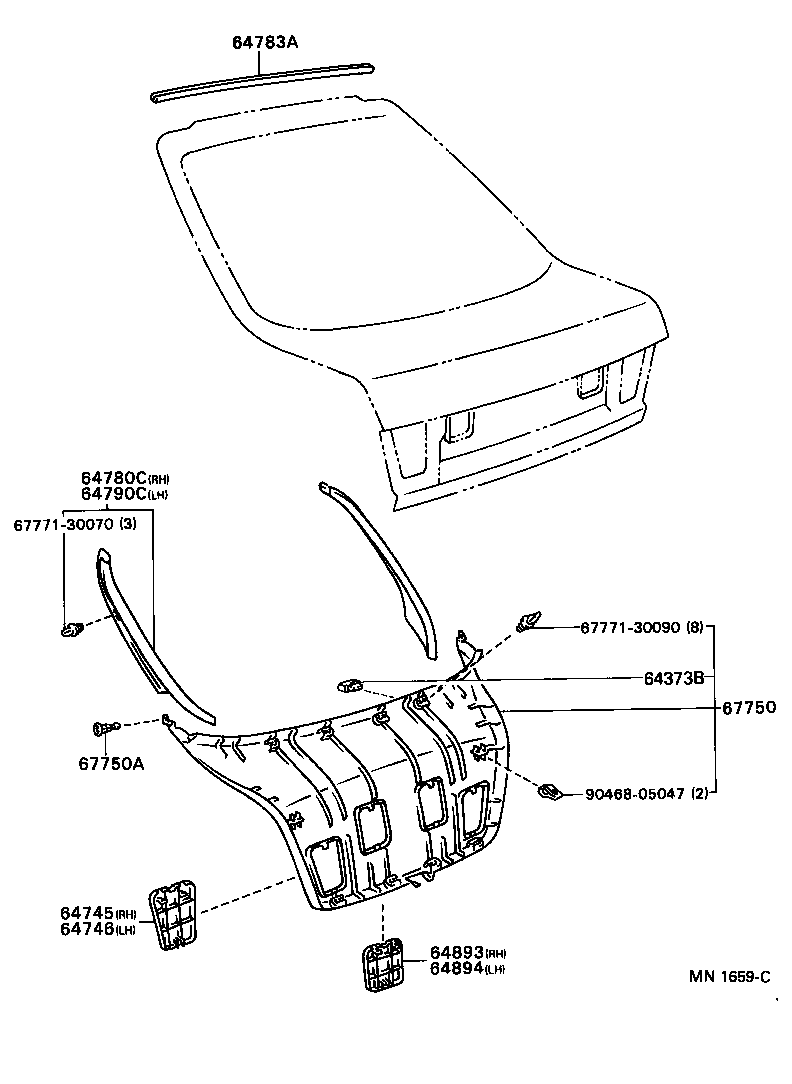

Back Door Panel & Glass
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 64373B | Stopper, Package Tray Trim |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64780C | Panel Assy, Back Door Trim, RH |
| 64783A | Trim, Back Window Panel, Upper |
| 64790C | Panel Assy, Back Door Trim, LH |
| 64795A | Trim, Back Window Opening |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64893 | Cover, Back Door Trim, Upper, RH |
| 64894 | Cover, Back Door Trim, Upper, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67272A | Cushion, Back Door Stopper, NO.2 |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67381A | Bracket, Back Window Wiper Motor, NO.1 |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
