Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

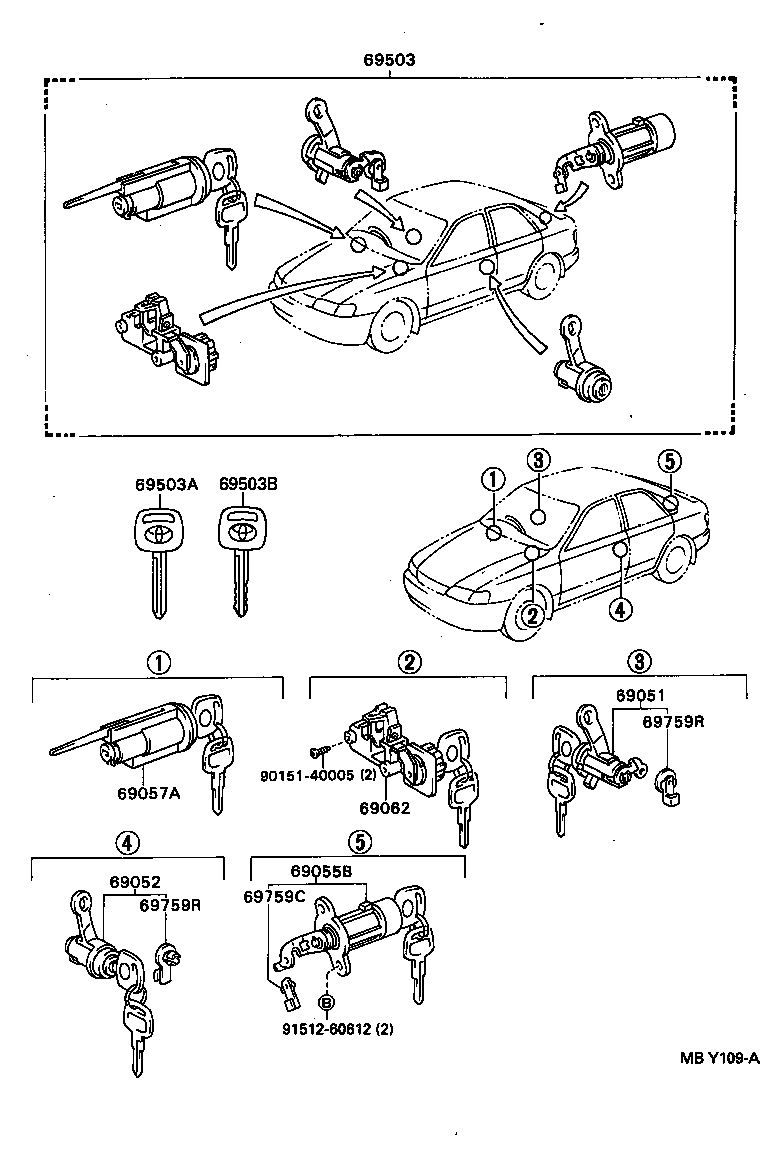

Lock Cylinder Set
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 69759C | Snap, Back Door Lock Cylinder |
| 69759G | Snap, Luggage Door Lock Cylinder |
| 69759R | Snap, Front Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
