Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

16 part groups · 3 illustrations

Illustrations

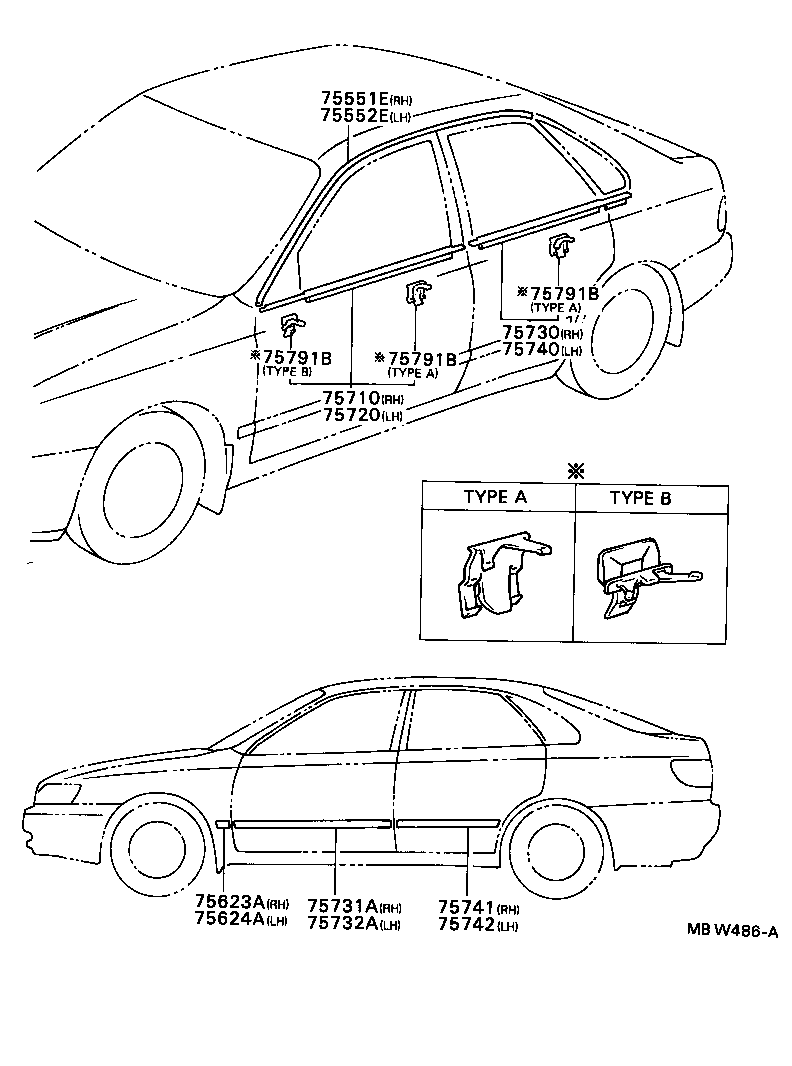

Figure MBW485B MBW485B 1992-02 → — Figure MBW486A MBW486A 1992-02 → — Figure MBX240 MBX240 1992-11 → —

Part groups

PNCDescription
62955G Retainer, Quarter Vent Louver
75307 Ornament Sub-assy, Quarter Panel, RH
75308 Ornament Sub-assy, Quarter Panel, LH
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75791B Clip, Belt Moulding Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
