Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 3 illustrations

Illustrations

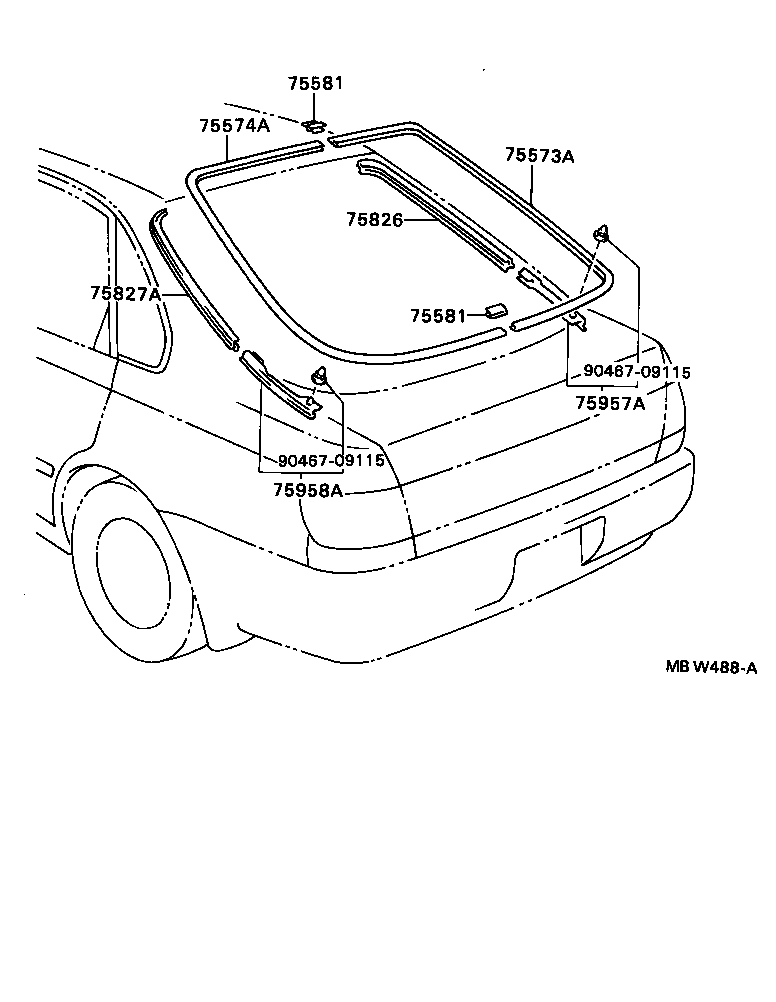

Figure 750596 750596 1992-02 → — Figure MBW488A MBW488A 1992-02 → — Figure MBX242 MBX242 1992-11 → —

Part groups

PNCDescription
75397B Clip, Back Window Moulding, NO.3
75497 Clip, Back Window Outside Moulding, NO.2
75573A Moulding, Back Window, Outside RH
75573B Moulding, Back Window, Outside
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75581 Cover, Back Window Moulding Joint, Upper
75813 Moulding, Back Door
75826 Pad, Back Door Outside Moulding, RH
75827A Pad, Back Door Outside Moulding, LH
75957A Pad, Back Window Moulding, Lower RH
75958A Pad, Back Window Moulding, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
