Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 3 illustrations

Illustrations

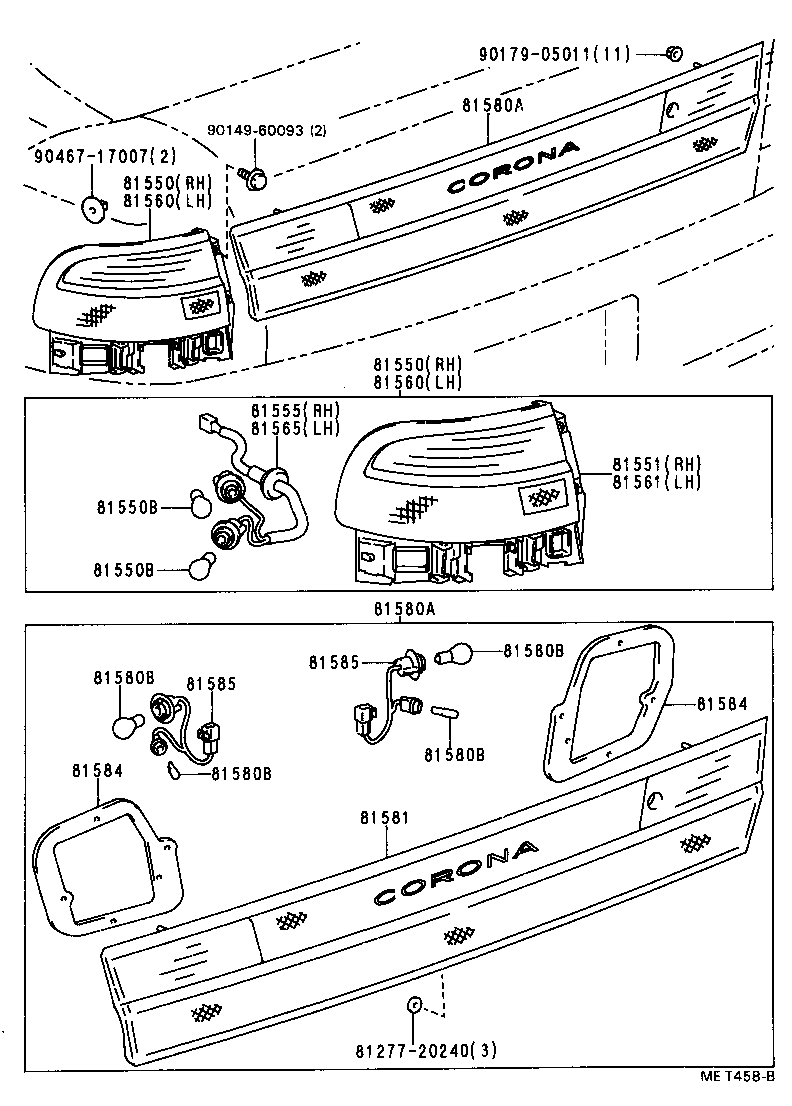

Figure MET459D MET459D 1992-02 → — Figure MET458B MET458B 1992-02 → 1994-02 Figure MEU741C MEU741C 1992-11 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81589A Gasket, Rear Lamp
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
