Toyota Carina E (UKP)
1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe
Discontinued model
Data version 1997-12

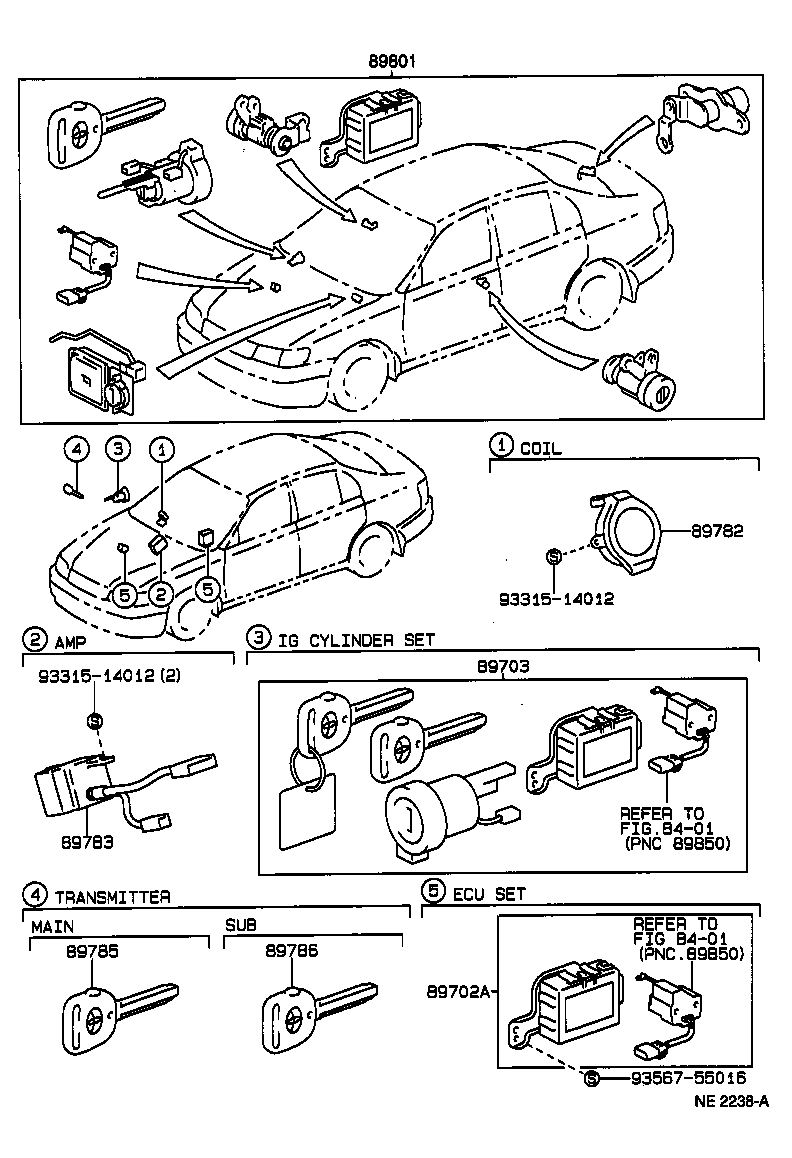

Anti-theft Device
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89702A | Computer Set, Transponder W/Valve Control |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89709 | Computer Set, Transponder Key |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
| 89801 | Computer Set, Transponder Key Diesel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
