Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 2 illustrations

Illustrations

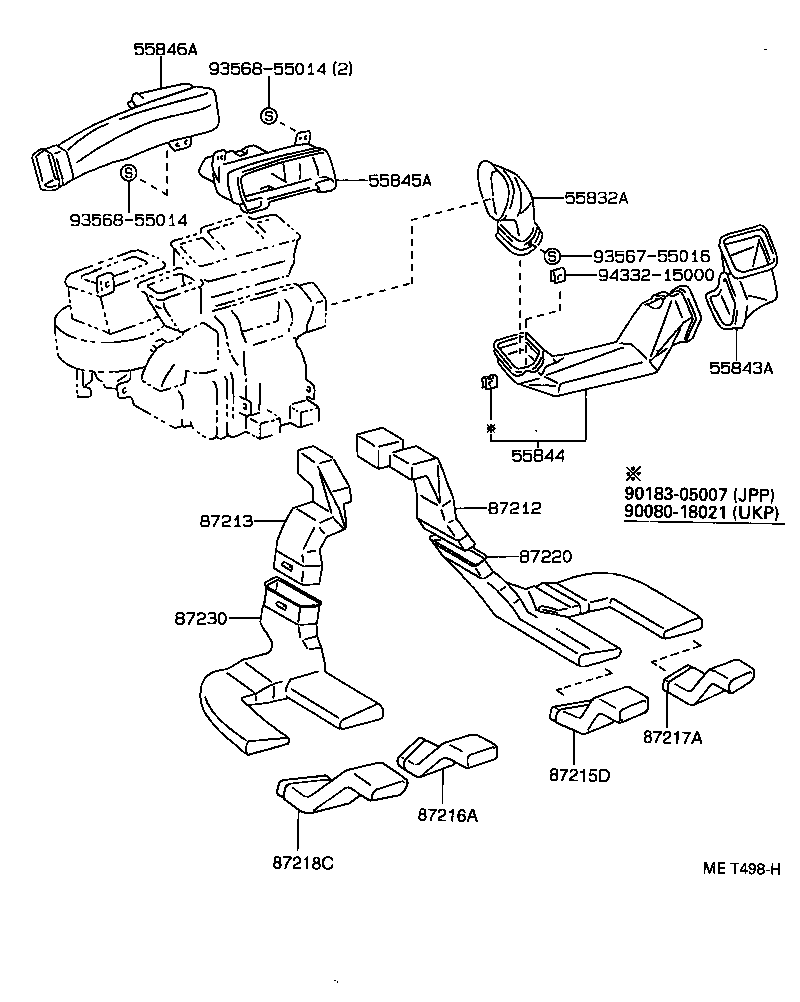

Figure 873301A 873301A 1992-02 → — Figure MET498H MET498H 1992-02 → —

Part groups

PNCDescription
55538A Cover, Cooler Switch Hole
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215D Duct, Air, Rear NO.4
87216A Duct, Air, Rear NO.5
87217A Duct, Air, Rear NO.6
87218C Duct, Air, Rear NO.6
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
