Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

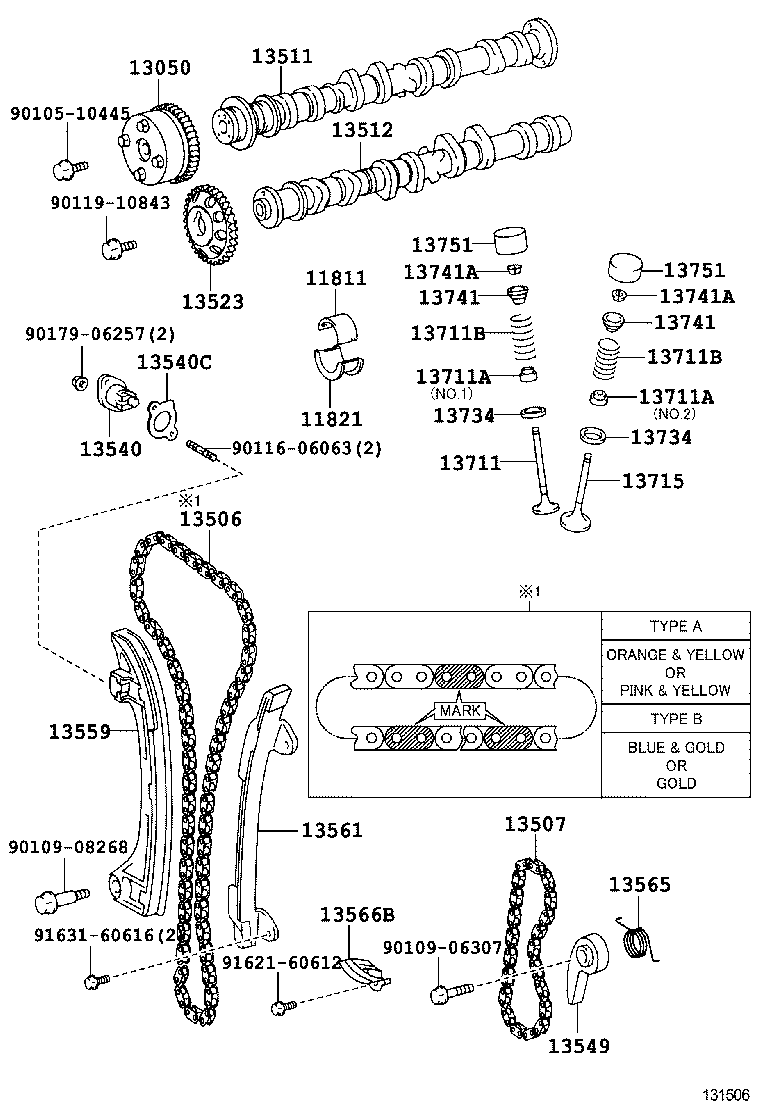

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11811 — Bearing, Camshaft, NO.1 | ||||
| 11811-28010-01 note |
Bearing, Camshaft, NO.1
2000-07 → —
|
1AZFSE AZT220 | — | |
| 11811-28010-02 note |
Bearing, Camshaft, NO.1
2000-07 → —
|
1AZFSE AZT220 | — | |
| 11811-28010-03 note |
Bearing, Camshaft, NO.1
2000-07 → —
|
1AZFSE AZT220 | — | |
| 11821 — Bearing, Camshaft, NO.2 | ||||
| 11821-28010-01 note |
Bearing, Camshaft, NO.2
2000-07 → —
|
1AZFSE AZT220 | — | |
| 11821-28010-02 note |
Bearing, Camshaft, NO.2
2000-07 → —
|
1AZFSE AZT220 | — | |
| 11821-28010-03 note |
Bearing, Camshaft, NO.2
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-22011 |
Gear Assy, Camshaft Timing
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13050-28011 |
Gear Assy, Camshaft Timing
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0D020 note |
Chain Sub-assy
2001-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13506-22030 |
Chain Sub-assy
2000-07 → 2001-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13506-22030 note |
Chain Sub-assy
2001-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13506-28010 note |
Chain Sub-assy
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13506-28020 note |
Chain Sub-assy
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-28010 |
Chain Sub-assy, NO.2
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13511 — Camshaft | ||||
| 13501-02020 |
Camshaft
1997-10 → 2000-03
ended
|
4AFE AT220 LHD | — | |
| 13501-02020 note |
Camshaft
2000-03 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 13501-02030 |
Camshaft
1997-10 → 2000-03
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13501-02030 note |
Camshaft
1997-10 → 1998-05
ended
|
4AFE AT220 LHD TERRA | — | |
| 13501-02030 note |
Camshaft
2000-03 → 2000-07
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13501-0D020 note |
Camshaft
2000-07 → 2002-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13501-0D021 note |
Camshaft
2002-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13501-15040 note |
Camshaft
2000-03 → 2000-07
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13501-15050 note |
Camshaft
2000-03 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 13501-22060 note |
Camshaft
2000-07 → 2002-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13501-22061 note |
Camshaft
2002-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13501-27010 |
Camshaft
1999-08 → 2000-05
ended
|
1CDFTV CDT220 | — | |
| 13501-27011 |
Camshaft
2000-05 → —
|
1CDFTV CDT220 | — | |
| 13501-28020 |
Camshaft
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13501-74050 |
Camshaft
1997-10 → —
|
3SFE ST220 | — | |
| 13511-64100 |
Camshaft
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-02020 |
Camshaft, NO.2
1997-10 → 2000-03
ended
|
4AFE AT220 LHD | — | |
| 13502-02020 note |
Camshaft, NO.2
2000-03 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 13502-02040 note |
Camshaft, NO.2
1997-10 → 1998-05
ended
|
4AFE AT220 LHD TERRA | — | |
| 13502-02040 |
Camshaft, NO.2
1997-10 → 2000-03
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13502-02040 note |
Camshaft, NO.2
2000-03 → 2000-07
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13502-0D020 note |
Camshaft, NO.2
2000-07 → 2002-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13502-0D021 note |
Camshaft, NO.2
2002-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13502-15030 note |
Camshaft, NO.2
2000-03 → 2000-07
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 13502-15040 note |
Camshaft, NO.2
2000-03 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 13502-22010 note |
Camshaft, NO.2
2000-07 → 2002-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13502-22011 note |
Camshaft, NO.2
2002-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13502-27010 |
Camshaft, NO.2
1999-08 → 2000-05
ended
|
1CDFTV CDT220 | — | |
| 13502-27011 |
Camshaft, NO.2
2000-05 → —
|
1CDFTV CDT220 | — | |
| 13502-28010 |
Camshaft, NO.2
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13502-74030 |
Camshaft, NO.2
1997-10 → —
|
3SFE ST220 | — | |
| 13523 — Gear OR Sprocket, Camshaft Timing | ||||
| 13523-0D020 note |
Gear OR Sprocket, Camshaft Timing
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13523-22020 |
Gear OR Sprocket, Camshaft Timing
2002-07 → —
|
1AZFSE AZT220 | — | |
| 13523-22020 note |
Gear OR Sprocket, Camshaft Timing
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13523-22020 |
Gear OR Sprocket, Camshaft Timing
2000-07 → 2002-04
ended
|
1AZFSE AZT220 | — | |
| 13523-22050 |
Gear OR Sprocket, Camshaft Timing
2002-04 → 2002-07
ended
|
1AZFSE AZT220 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0D020 note |
Tensioner Assy, Chain, NO.1
2001-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13540-22022 |
Tensioner Assy, Chain, NO.1
2000-07 → 2001-10
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13540-22022 note |
Tensioner Assy, Chain, NO.1
2001-10 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13540-27010 |
Tensioner Assy, Chain, NO.1
1999-08 → 2001-05
ended
|
1CDFTV CDT220 | — | |
| 13540-27011 |
Tensioner Assy, Chain, NO.1
2001-05 → —
|
1CDFTV CDT220 | — | |
| 13540-28010 |
Tensioner Assy, Chain, NO.1
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13540C — Gasket(FOR CHAIN TENSIONER) | ||||
| 13552-28010 |
Gasket(FOR CHAIN TENSIONER)
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13549 — Plate, Chain Tensioner | ||||
| 13549-28011 |
Plate, Chain Tensioner
2000-07 → 2001-05
ended
|
1AZFSE AZT220 | — | |
| 13549-28012 |
Plate, Chain Tensioner
2001-05 → —
|
1AZFSE AZT220 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0D020 note |
Slipper, Chain Tensioner
2002-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13559-22011 note |
Slipper, Chain Tensioner
2002-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13559-22011 |
Slipper, Chain Tensioner
2000-07 → 2002-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13559-28010 |
Slipper, Chain Tensioner
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0D020 note |
Damper, Chain Vibration, NO.1
2002-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13561-22020 |
Damper, Chain Vibration, NO.1
2000-07 → 2002-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13561-22020 note |
Damper, Chain Vibration, NO.1
2002-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13561-28010 |
Damper, Chain Vibration, NO.1
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13565 — Spring, Chain Damper | ||||
| 13565-28011 |
Spring, Chain Damper
2000-07 → 2001-05
ended
|
1AZFSE AZT220 | — | |
| 13565-28012 |
Spring, Chain Damper
2001-05 → —
|
1AZFSE AZT220 | — | |
| 13566B — Guide, Timing Chain | ||||
| 13566-28010 |
Guide, Timing Chain
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13711 — Valve, Intake | ||||
| 13711-02050 |
Valve, Intake
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 13711-0D020 note |
Valve, Intake
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13711-16060 note |
Valve, Intake
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 13711-22040 note |
Valve, Intake
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13711-27010 |
Valve, Intake
1999-08 → —
|
1CDFTV CDT220 | — | |
| 13711-28010 |
Valve, Intake
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13711-64030 |
Valve, Intake
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 13711-74101 |
Valve, Intake
1997-10 → —
|
3SFE ST220 | — | |
| 13711A — Seal OR Ring, O(FOR VALVE STEM OIL) | ||||
| 90080-31061 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90080-31062 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90913-02088 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1998-11 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 90913-02088 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-10 → 2000-10
ended
|
3SFE ST220 | — | |
| 90913-02089 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-10 → 1998-11
ended
|
4AFE,7AFE AT22# | — | |
| 90913-02090 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-10 → —
|
3SFE ST220 | — | |
| 90913-02090 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 90913-02101 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1AZFSE AZT220 | — | |
| 90913-02101 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90913-02103 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-10 → —
|
3SFE ST220 | — | |
| 90913-02111 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1AZFSE AZT220 | — | |
| 90913-02111 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90913-02116 |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 90913-02119 |
Seal OR Ring, O(FOR VALVE STEM OIL)
1999-08 → —
|
1CDFTV CDT220 | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90080-50123 |
Spring, Compression(FOR INNER)
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 90080-50190 note |
Spring, Compression(FOR INNER)
1997-10 → 1998-05
ended
|
4AFE AT220 LHD TERRA | — | |
| 90080-50190 |
Spring, Compression(FOR INNER)
1997-10 → 2000-07
ended
|
7AFE AT221;4AFE AT220 RHD | — | |
| 90080-50253 note |
Spring, Compression(FOR INNER)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90501-29048 note |
Spring, Compression(FOR INNER)
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90501-43003 |
Spring, Compression(FOR INNER)
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 90504-37002 |
Spring, Compression(FOR INNER)
1997-10 → —
|
3SFE ST220 | — | |
| 90905-01055 |
Spring, Compression(FOR INNER)
1999-08 → —
|
1CDFTV CDT220 | — | |
| 90905-01065 |
Spring, Compression(FOR INNER)
2000-07 → 2000-08
ended
|
1AZFSE AZT220 | — | |
| 90905-01066 |
Spring, Compression(FOR INNER)
2000-08 → —
|
1AZFSE AZT220 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-02030 |
Valve, Exhaust
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 13715-0D020 note |
Valve, Exhaust
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13715-22040 note |
Valve, Exhaust
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13715-27010 |
Valve, Exhaust
1999-08 → —
|
1CDFTV CDT220 | — | |
| 13715-28010 |
Valve, Exhaust
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13715-64040 |
Valve, Exhaust
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 13715-74100 |
Valve, Exhaust
1997-10 → —
|
3SFE ST220 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-74010 |
Seat, Valve Spring
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13734-74010 |
Seat, Valve Spring
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-02020 |
Retainer, Valve Spring
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 13741-16010 |
Retainer, Valve Spring
1999-08 → —
|
1CDFTV CDT220 | — | |
| 13741-22020 |
Retainer, Valve Spring
2000-07 → 2001-07
ended
|
1AZFSE AZT220 | — | |
| 13741-22020 |
Retainer, Valve Spring
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13741-22021 |
Retainer, Valve Spring
2001-07 → —
|
1AZFSE AZT220 | — | |
| 13741-43010 |
Retainer, Valve Spring
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 13741-50020 |
Retainer, Valve Spring
1997-10 → —
|
3SFE ST220 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90080-38068 |
Lock, Valve Spring Retainer
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 90080-38115 |
Lock, Valve Spring Retainer
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 90913-03014 |
Lock, Valve Spring Retainer
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
1999-08 → —
|
1CDFTV CDT220 | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
1997-10 → —
|
3SFE ST220 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751 — Lifter, Valve | ||||
| 13751-02020 |
Lifter, Valve
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 13751-16010 |
Lifter, Valve
1999-08 → —
|
1CDFTV CDT220 | — | |
| 13751-22040 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22050 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22060 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22070 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22080 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22090 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22100 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22110 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22120 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22130 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22140 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22150 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22160 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22170 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22180 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22190 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22200 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22210 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22220 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22230 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22240 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22250 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22260 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22270 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22280 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22290 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22300 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22310 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22320 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22330 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22340 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22350 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22360 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22370 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-22380 note |
Lifter, Valve
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 13751-46030 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46040 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46050 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46060 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46070 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46080 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46090 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46100 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46110 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46120 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46130 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46140 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46150 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46160 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46170 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46180 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46190 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46200 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46210 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46220 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46230 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46240 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46250 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46260 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46270 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46280 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46290 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46300 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46310 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46320 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46330 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46340 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46350 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46360 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-46370 note |
Lifter, Valve
2000-07 → —
|
1AZFSE AZT220 | — | |
| 13751-64011 |
Lifter, Valve
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 13751-74020 |
Lifter, Valve
1997-10 → —
|
3SFE ST220 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
