Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

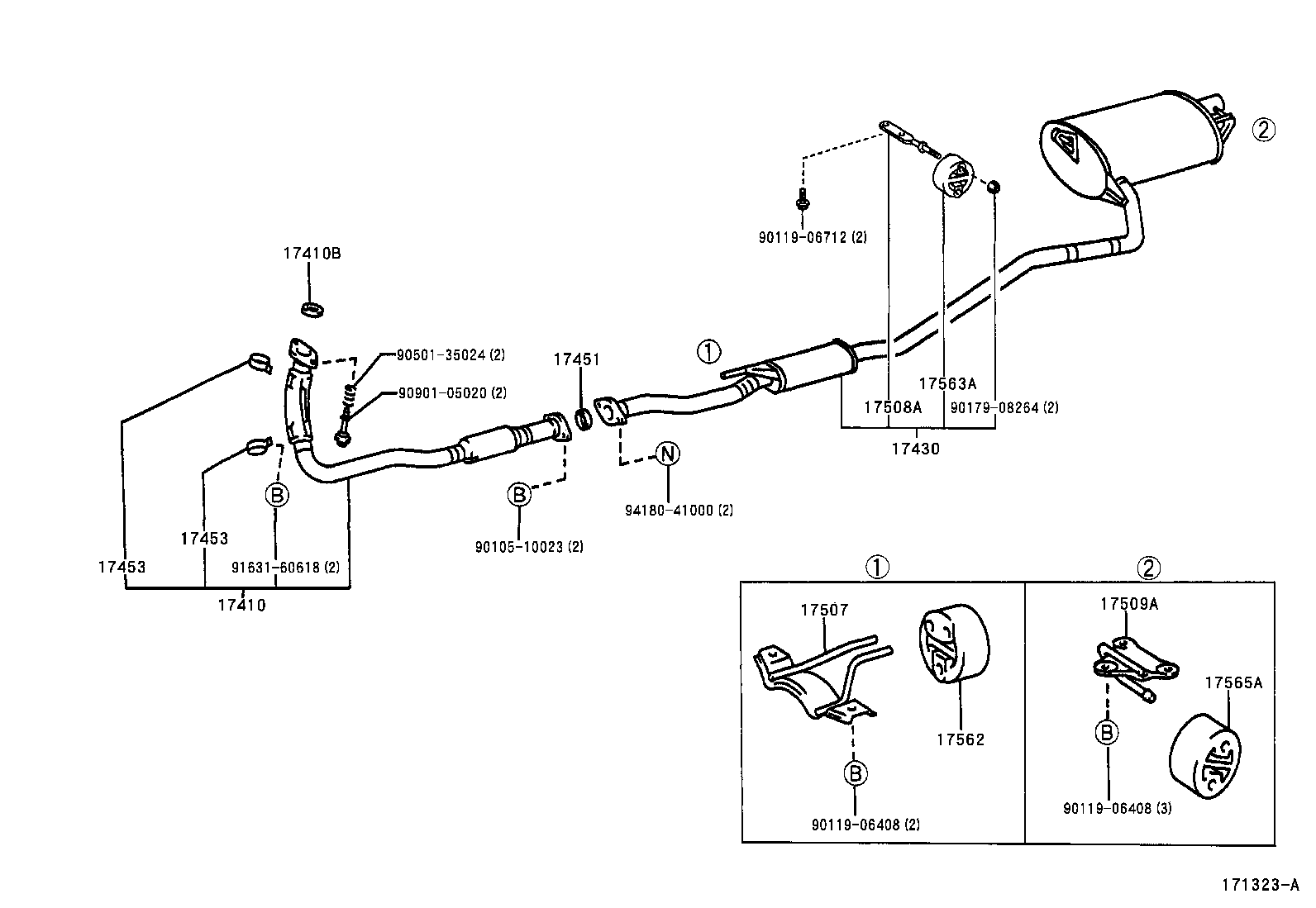

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-02180 note |
Pipe Assy, Exhaust, Front
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 17410-02190 |
Pipe Assy, Exhaust, Front
1998-05 → 2000-07
ended
|
4AFE AT220 RHD | — | |
| 17410-02190 note |
Pipe Assy, Exhaust, Front
1997-10 → 1998-05
ended
|
4AFE AT220 TERRA | — | |
| 17410-02340 |
Pipe Assy, Exhaust, Front
1997-10 → 2000-07
ended
|
7AFE AT221 | — | |
| 17410-02350 note |
Pipe Assy, Exhaust, Front
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 17410-03250 |
Pipe Assy, Exhaust, Front
1997-10 → 2003-01
ended
|
3SFE ST220 | — | |
| 17410-0B020 |
Pipe Assy, Exhaust, Front
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 17410-0B040 note |
Pipe Assy, Exhaust, Front
1999-08 → 2003-01
ended
|
1CDFTV CDT220 | — | |
| 17410-0D030 note |
Pipe Assy, Exhaust, Front
2000-07 → 2003-01
ended
|
3ZZFE ZZT220 | — | |
| 17410-0D040 note |
Pipe Assy, Exhaust, Front
2000-07 → 2003-01
ended
|
1ZZFE ZZT221 | — | |
| 17410-0H010 |
Pipe Assy, Exhaust, Front
2000-07 → 2003-01
ended
|
1AZFSE AZT220 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-02030 note |
Gasket, Exhaust Pipe
1997-10 → 2000-07
ended
|
4AFE,7AFE,3SFE AT22#,ST220 | — | |
| 17451-0B010 |
Gasket, Exhaust Pipe
1999-08 → —
|
1CDFTV CDT220 | — | |
| 17451-0H010 |
Gasket, Exhaust Pipe
2000-07 → —
|
1AZFSE AZT220 | — | |
| 17451-21030 |
Gasket, Exhaust Pipe
2000-07 → —
|
3ZZFE ZZT220 | — | |
| 17451-22020 note |
Gasket, Exhaust Pipe
2000-07 → —
|
3SFE ST220 | — | |
| 17451-64010 |
Gasket, Exhaust Pipe
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 90917-06061 note |
Gasket, Exhaust Pipe
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
2000-07 → —
|
1ZZFE ZZT221 | — | |
| 90917-06064 note |
Gasket, Exhaust Pipe
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 90917-06065 note |
Gasket, Exhaust Pipe
1998-05 → —
|
4AFE AT220 RHD;7AFE,3SFE AT221,ST220 | — | |
| 90917-06065 note |
Gasket, Exhaust Pipe
1997-10 → 1998-05
ended
|
7AFE AT221;4AFE AT220 TERRA | — | |
| 90917-06065 note |
Gasket, Exhaust Pipe
1997-10 → 1998-05
ended
|
3SFE ST220 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-02180 |
Pipe Assy, Exhaust, Tail
1997-10 → 1998-02
ended
|
4AFE,7AFE,3SFE AT22#,ST220 LB,SED | — | |
| 17430-02181 |
Pipe Assy, Exhaust, Tail
1998-02 → 2000-07
ended
|
4AFE,7AFE,3SFE AT22#,ST220 LB,SED | — | |
| 17430-02181 |
Pipe Assy, Exhaust, Tail
2000-07 → —
|
3SFE ST220 | — | |
| 17430-02200 |
Pipe Assy, Exhaust, Tail
1997-10 → 1998-02
ended
|
4AFE,7AFE,3SFE AT22#,ST220 WG | — | |
| 17430-02201 |
Pipe Assy, Exhaust, Tail
1998-02 → 2000-07
ended
|
4AFE,7AFE,3SFE AT22#,ST220 WG | — | |
| 17430-0B030 |
Pipe Assy, Exhaust, Tail
1997-10 → 1998-02
ended
|
2CT# CT220 LB,SED | — | |
| 17430-0B031 |
Pipe Assy, Exhaust, Tail
1998-02 → 2000-07
ended
|
2CT# CT220 LB,SED | — | |
| 17430-0B050 |
Pipe Assy, Exhaust, Tail
1997-10 → 1998-02
ended
|
2CTE CT220 WG | — | |
| 17430-0B051 |
Pipe Assy, Exhaust, Tail
1998-02 → 2000-07
ended
|
2CTE CT220 WG | — | |
| 17430-0B080 |
Pipe Assy, Exhaust, Tail
2000-07 → —
|
1CDFTV CDT220 | — | |
| 17430-0B080 |
Pipe Assy, Exhaust, Tail
1999-08 → 2000-07
ended
|
1CDFTV CDT220 LB,SED | — | |
| 17430-0B090 |
Pipe Assy, Exhaust, Tail
1999-08 → 2000-07
ended
|
1CDFTV CDT220 WG | — | |
| 17430-0D060 |
Pipe Assy, Exhaust, Tail
2000-07 → —
|
3ZZFE ZZT220 | — | |
| 17430-0D070 |
Pipe Assy, Exhaust, Tail
2000-07 → —
|
1ZZFE ZZT221 | — | |
| 17430-0H010 |
Pipe Assy, Exhaust, Tail
2000-07 → —
|
1AZFSE AZT220 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06046 |
Gasket, Exhaust Pipe
1997-10 → —
|
1AZFSE,1CDFTV,2CT#,1ZZFE,3ZZFE AZT220,CDT220,CT220,ZZT22# | — | |
| 90917-06046 |
Gasket, Exhaust Pipe
1997-10 → —
|
4AFE,7AFE,3SFE AT22#,ST220 | — | |
| 17453 — Clamp, Exhaust Pipe, NO.2 | ||||
| 17453-64010 |
Clamp, Exhaust Pipe, NO.2
1997-10 → 2000-07
ended
|
2CT# CT220 | — | |
| 17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support | ||||
| 17507-0B010 |
Bracket Sub-assy, Exhaust Pipe NO.2 Support
1997-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support | ||||
| 17508-02050 |
Bracket Sub-assy, Exhaust Pipe NO.3 Support
1997-10 → 2000-07
ended
|
4AFE,7AFE,1CDFTV,2CT#,3SFE AT22#,CDT220,CT220,ST220 | — | |
| 17508-02050 |
Bracket Sub-assy, Exhaust Pipe NO.3 Support
2000-07 → —
|
1AZFSE,1CDFTV,1ZZFE,3ZZFE AZT220,CDT220,ZZT22# | — | |
| 17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support | ||||
| 17509-02020 |
Bracket Sub-assy, Exhaust Pipe NO.4 Support
1997-10 → —
|
1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE 22# AT22#,AZT220,CDT220,CT220,ST220,ZZT | — | |
| 17562 — Support, Exhaust Pipe, NO.2 | ||||
| 17565-16270 |
Support, Exhaust Pipe, NO.2
2000-07 → —
|
1CDFTV CDT220 | — | |
| 17565-64180 |
Support, Exhaust Pipe, NO.2
1997-10 → 2000-07
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 17563A — Support, Exhaust Pipe, NO.3 | ||||
| 17565-16270 |
Support, Exhaust Pipe, NO.3
1997-10 → 2000-07
ended
|
4AFE,7AFE,1CDFTV,2CT#,3SFE AT22#,CDT220,CT220,ST220 | — | |
| 17565-16270 |
Support, Exhaust Pipe, NO.3
2000-07 → —
|
1AZFSE,1CDFTV,1ZZFE,3ZZFE AZT220,CDT220,ZZT22# | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-16270 |
Support, Exhaust Pipe, NO.4
1997-10 → 2000-07
ended
|
4AFE,7AFE,1CDFTV,2CT#,3SFE AT22#,CDT220,CT220,ST220 | — | |
| 17565-16270 |
Support, Exhaust Pipe, NO.4
2000-07 → —
|
1AZFSE,3SFE,1ZZFE,3ZZFE AZT220,ST220,ZZT22# | — | |
| 17565-64180 |
Support, Exhaust Pipe, NO.4
2000-07 → —
|
1CDFTV CDT220 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
