Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

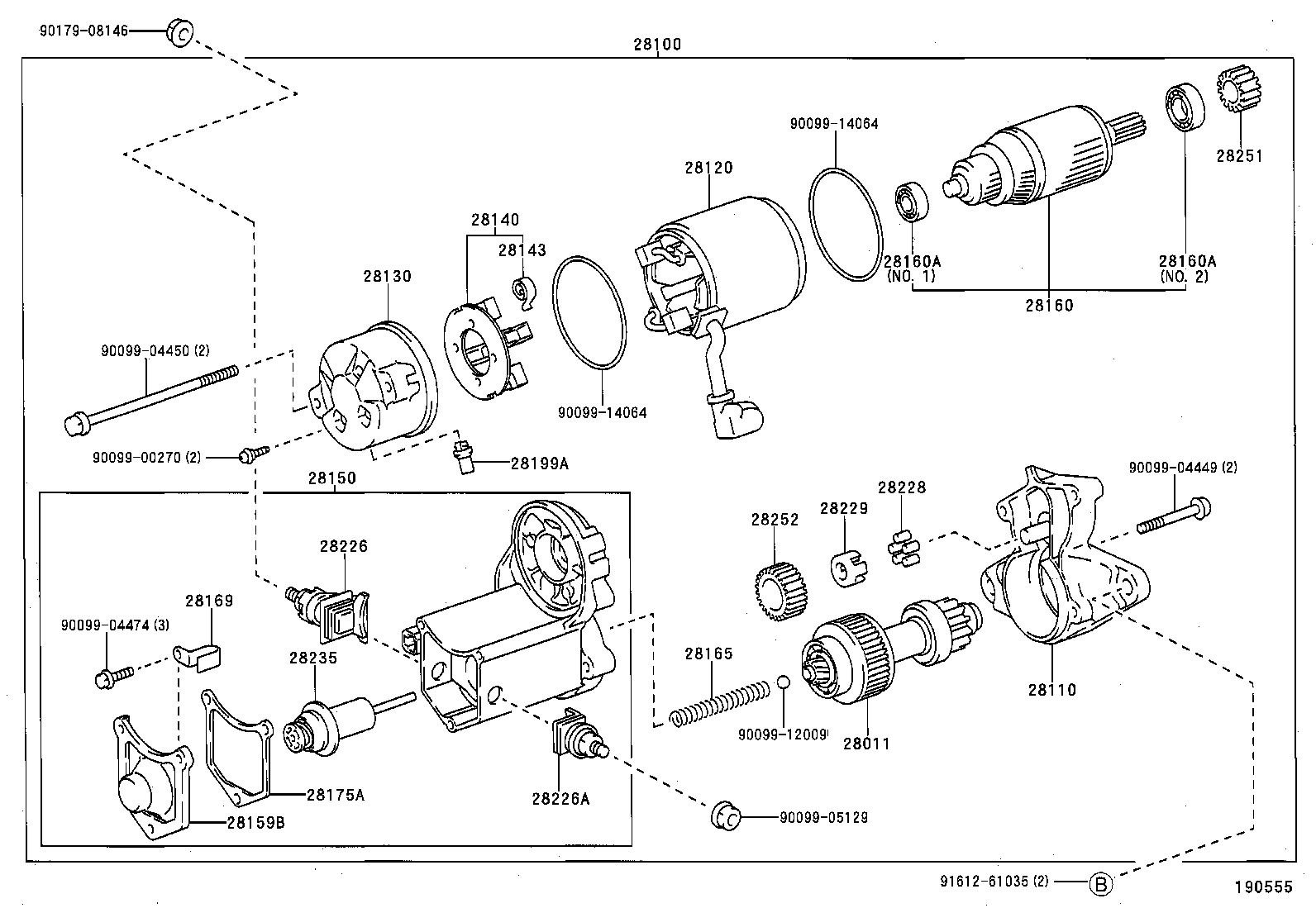

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28011 — Clutch Sub-assy, Starter | ||||
| 28011-02010 |
Clutch Sub-assy, Starter
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28011-0B020 |
Clutch Sub-assy, Starter
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28011-0D030 note |
Clutch Sub-assy, Starter
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28011-0G010 |
Clutch Sub-assy, Starter
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28011-70020 note |
Clutch Sub-assy, Starter
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28011-70020 note |
Clutch Sub-assy, Starter
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28011-74060 note |
Clutch Sub-assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28011-74070 note |
Clutch Sub-assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28100 — Starter Assy | ||||
| 28100-02080 note |
Starter Assy
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28100-0B020 note |
Starter Assy
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28100-0D030 note |
Starter Assy
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28100-0G010 note |
Starter Assy
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28100-22040 note |
Starter Assy
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28100-22040 note |
Starter Assy
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28100-28010 note |
Starter Assy
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28100-74130 note |
Starter Assy
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28100-74200 note |
Starter Assy
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28100-74300 note |
Starter Assy
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-02080 |
Housing Assy, Starter Drive
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28110-0B020 |
Housing Assy, Starter Drive
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28110-0D030 note |
Housing Assy, Starter Drive
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28110-0G010 |
Housing Assy, Starter Drive
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28110-22030 note |
Housing Assy, Starter Drive
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28110-22030 note |
Housing Assy, Starter Drive
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28110-74100 note |
Housing Assy, Starter Drive
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28110-74110 note |
Housing Assy, Starter Drive
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28110-74270 note |
Housing Assy, Starter Drive
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28110-74300 note |
Housing Assy, Starter Drive
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-02020 |
Yoke Assy, Starter
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28120-02020 note |
Yoke Assy, Starter
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28120-0B020 |
Yoke Assy, Starter
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28120-0G010 |
Yoke Assy, Starter
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28120-16180 note |
Yoke Assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28120-26071 note |
Yoke Assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28120-70050 note |
Yoke Assy, Starter
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28120-70050 note |
Yoke Assy, Starter
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-02050 |
Frame Assy, Starter Commutator End
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28130-02050 note |
Frame Assy, Starter Commutator End
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28130-0B020 |
Frame Assy, Starter Commutator End
1997-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28130-15190 note |
Frame Assy, Starter Commutator End
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28130-15190 note |
Frame Assy, Starter Commutator End
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28130-74110 note |
Frame Assy, Starter Commutator End
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28130-74120 note |
Frame Assy, Starter Commutator End
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28130-74270 note |
Frame Assy, Starter Commutator End
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28130-74300 note |
Frame Assy, Starter Commutator End
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-02020 note |
Holder Assy, Starter Brush
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28140-02020 |
Holder Assy, Starter Brush
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28140-0B020 |
Holder Assy, Starter Brush
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28140-0G010 |
Holder Assy, Starter Brush
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28140-70020 note |
Holder Assy, Starter Brush
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28140-70020 note |
Holder Assy, Starter Brush
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28140-74010 note |
Holder Assy, Starter Brush
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28140-74120 note |
Holder Assy, Starter Brush
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28143 — Spring, Starter Brush | ||||
| 28143-70020 |
Spring, Starter Brush
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28143-76060 note |
Spring, Starter Brush
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 90099-17112 note |
Spring, Starter Brush
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-02080 |
Switch Assy, Magnet Starter
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28150-0B020 |
Switch Assy, Magnet Starter
1997-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28150-0D030 note |
Switch Assy, Magnet Starter
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28150-28010 note |
Switch Assy, Magnet Starter
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28150-70030 note |
Switch Assy, Magnet Starter
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28150-70030 note |
Switch Assy, Magnet Starter
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28150-74140 note |
Switch Assy, Magnet Starter
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28150-74200 note |
Switch Assy, Magnet Starter
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28150-74300 note |
Switch Assy, Magnet Starter
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28159B — Cover, Magnet Switch | ||||
| 28159-10040 note |
Cover, Magnet Switch
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28159-55050 note |
Cover, Magnet Switch
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-02080 |
Armature Assy, Starter
1997-10 → 2000-07
ended
|
4AFE,7AFE AT22# | — | |
| 28160-02080 note |
Armature Assy, Starter
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28160-0B020 |
Armature Assy, Starter
1997-10 → 1999-10
ended
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28160-0G010 |
Armature Assy, Starter
1999-10 → —
|
1CDFTV,2CT# CDT220,CT220 | — | |
| 28160-26071 note |
Armature Assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28160-70050 note |
Armature Assy, Starter
2001-04 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28160-70050 note |
Armature Assy, Starter
2000-07 → 2001-04
ended
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28160-76060 note |
Armature Assy, Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28160A — Bearing, Starter Armature | ||||
| 28253-45020 note |
Bearing, Starter Armature
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 90099-10113 note |
Bearing, Starter Armature
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 90099-10196 note |
Bearing, Starter Armature
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 90099-10197 note |
Bearing, Starter Armature
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28165 — Spring, Starter Magnet Switch Return | ||||
| 28165-74010 note |
Spring, Starter Magnet Switch Return
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28165-74070 note |
Spring, Starter Magnet Switch Return
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28169 — Clamp, Starter Motor Lead Wire | ||||
| 28169-10040 |
Clamp, Starter Motor Lead Wire
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28169-55050 |
Clamp, Starter Motor Lead Wire
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28175A — Gasket, Magnet Switch Cover | ||||
| 28175-10040 note |
Gasket, Magnet Switch Cover
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28175-55050 note |
Gasket, Magnet Switch Cover
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28199A — Protector, Dust Starter | ||||
| 28199-46080 |
Protector, Dust Starter
2000-07 → —
|
1ZZFE,3ZZFE ZZT22# | — | |
| 28199-74110 |
Protector, Dust Starter
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28226 — Starter Kit, Battery Terminal | ||||
| 28226-55050 note |
Starter Kit, Battery Terminal
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28226-64370 note |
Starter Kit, Battery Terminal
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28226-70040 note |
Starter Kit, Battery Terminal
1997-10 → 2000-07
ended
|
3SFE ST220 | — | |
| 28226-74300 note |
Starter Kit, Battery Terminal
2000-07 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28226A — Starter Kit, Motor Terminal | ||||
| 28226-72010 note |
Starter Kit, Motor Terminal
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28226-74070 note |
Starter Kit, Motor Terminal
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28228 — Roller, Starter Idle Gear Clutch | ||||
| 28228-26040 |
Roller, Starter Idle Gear Clutch
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28229 — Retainer, Starter Idle Gear | ||||
| 28229-26040 note |
Retainer, Starter Idle Gear
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28229-74070 note |
Retainer, Starter Idle Gear
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28235 — Plunger, Magnet Switch | ||||
| 28235-74060 note |
Plunger, Magnet Switch
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28235-74130 note |
Plunger, Magnet Switch
1997-10 → —
|
1AZFSE,3SFE AZT220,ST220 | — | |
| 28251 — Pinion, Starter Drive | ||||
| 28254-54070 note |
Pinion, Starter Drive
1997-10 → —
|
3SFE ST220 | — | |
| 28254-54070 |
Pinion, Starter Drive
2000-07 → —
|
1AZFSE AZT220 | — | |
| 28252 — Gear, Starter Idle | ||||
| 28254-74070 note |
Gear, Starter Idle
1997-10 → —
|
3SFE ST220 | — | |
| 28254-74070 |
Gear, Starter Idle
2000-07 → —
|
1AZFSE AZT220 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
