Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

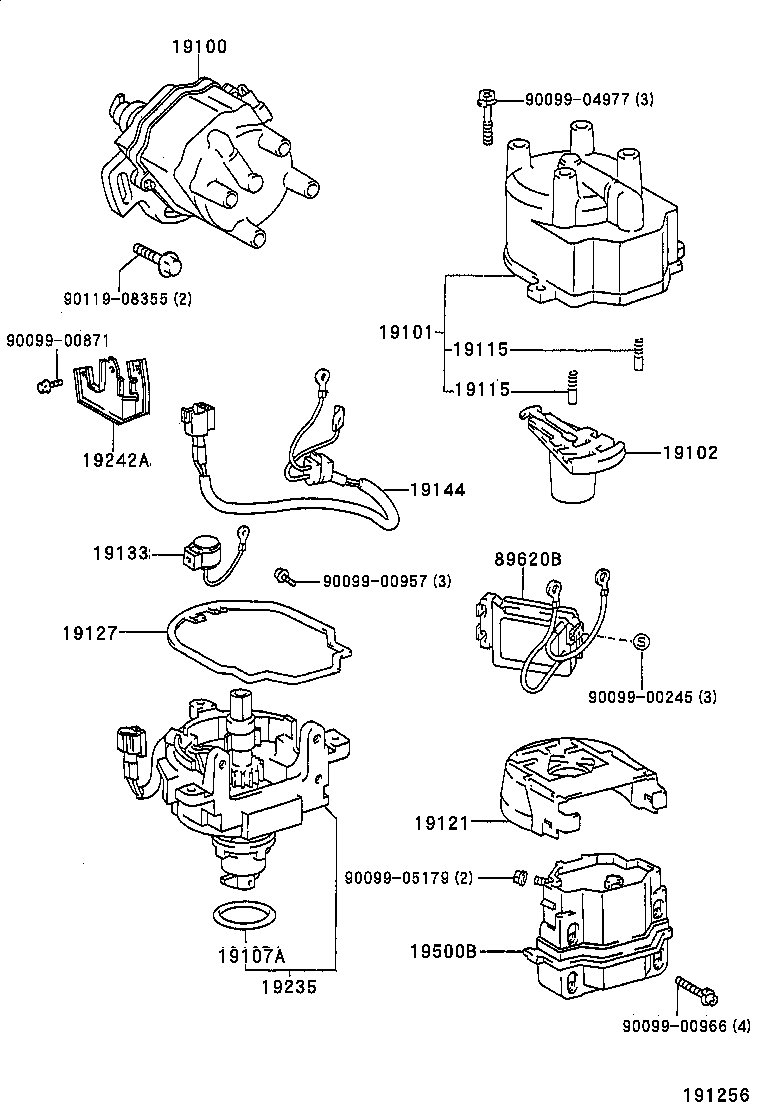

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100 — Distributor Assy | ||||
| 19020-16260 note |
Distributor Assy
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19100-02020 |
Distributor Assy
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 19101 — Cap Sub-assy, Distributor | ||||
| 19101-02020 |
Cap Sub-assy, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 19101-11060 note |
Cap Sub-assy, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19102 — Rotor Sub-assy, Distributor | ||||
| 19102-02020 |
Rotor Sub-assy, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 19102-11370 note |
Rotor Sub-assy, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19107A — Ring, O, Distributor Housing | ||||
| 90069-08014 |
Ring, O, Distributor Housing
1997-10 → 2000-07
ended
|
4AFE AT220 LHD | — | |
| 90099-14127 note |
Ring, O, Distributor Housing
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19115 — Piece, Distributor Cap, Center | ||||
| 19115-63010 |
Piece, Distributor Cap, Center
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19121 — Cover, Dust Proof | ||||
| 19121-11080 |
Cover, Dust Proof
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19127 — Packing, Dust Proof | ||||
| 19127-15120 |
Packing, Dust Proof
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19133 — Condenser, Distributor | ||||
| 19133-16240 |
Condenser, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19144 — Lead, Distributor Breaker | ||||
| 19144-16020 |
Lead, Distributor Breaker
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19235 — Housing, Distributor | ||||
| 19235-16270 |
Housing, Distributor
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19242A — Clamp, Cord, NO.2 | ||||
| 19242-15180 |
Clamp, Cord, NO.2
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 19500B — Coil Assy, Ignition | ||||
| 90919-02164 |
Coil Assy, Ignition
1997-10 → 2000-07
ended
|
4AFE AT220 LHD SED +1 | — | |
| 89620B — Igniter Assy | ||||
| 89620-16260 |
Igniter Assy
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
