Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

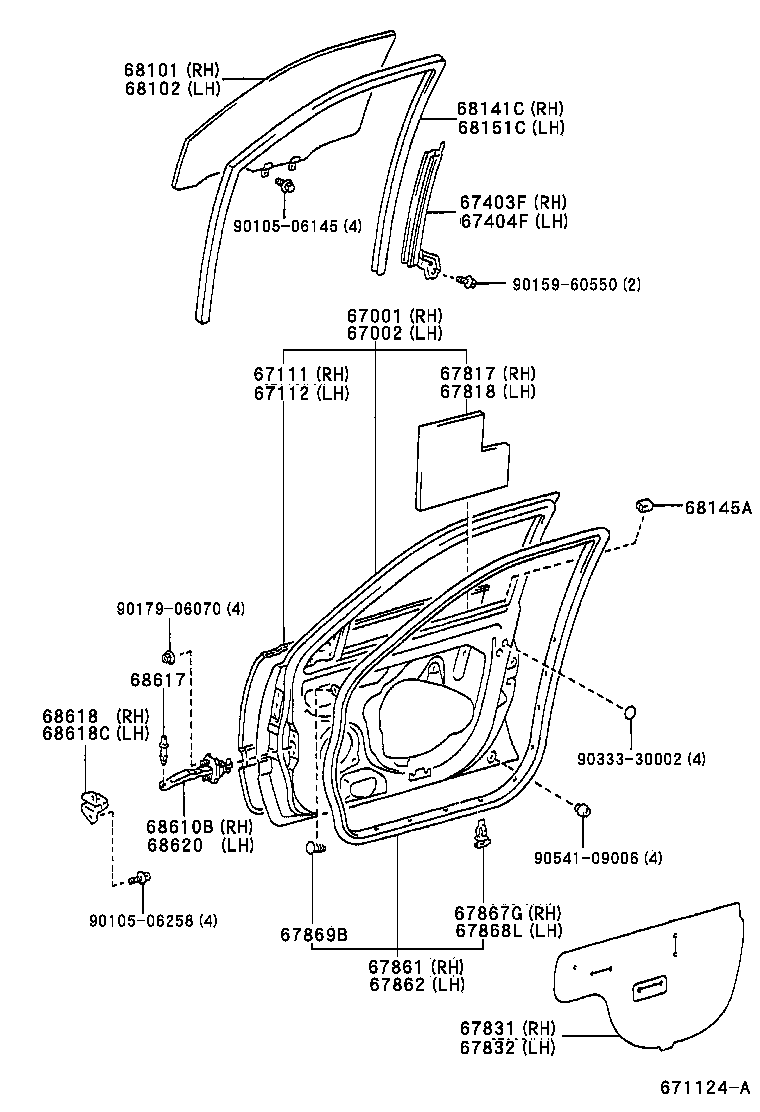

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67001 — Panel Sub-assy, Front Door, RH | ||||
| 67001-05030 |
Panel Sub-assy, Front Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 67001-05030 |
Panel Sub-assy, Front Door, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67001-05040 |
Panel Sub-assy, Front Door, RH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67002 — Panel Sub-assy, Front Door, LH | ||||
| 67002-05030 |
Panel Sub-assy, Front Door, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67002-05030 |
Panel Sub-assy, Front Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 67002-05040 |
Panel Sub-assy, Front Door, LH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67111 — Panel, Front Door, Outer RH | ||||
| 67111-05020 |
Panel, Front Door, Outer RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67112 — Panel, Front Door, Outer LH | ||||
| 67112-05020 |
Panel, Front Door, Outer LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67403F — Frame Sub-assy, Front Door, Rear Lower RH | ||||
| 67403-05020 note |
Frame Sub-assy, Front Door, Rear Lower RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67403-20140 note |
Frame Sub-assy, Front Door, Rear Lower RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67404F — Frame Sub-assy, Front Door, Rear Lower LH | ||||
| 67404-05020 note |
Frame Sub-assy, Front Door, Rear Lower LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67404-20120 note |
Frame Sub-assy, Front Door, Rear Lower LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67817 — Packing, Front Door Protector, RH | ||||
| 67817-20020 |
Packing, Front Door Protector, RH
1999-02 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67818 — Packing, Front Door Protector, LH | ||||
| 67818-20020 |
Packing, Front Door Protector, LH
1999-02 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67831 — Cover, Front Door Service Hole, RH | ||||
| 67801-05030 |
Cover, Front Door Service Hole, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67801-05040 |
Cover, Front Door Service Hole, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 67832 — Cover, Front Door Service Hole, LH | ||||
| 67802-05030 |
Cover, Front Door Service Hole, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67802-05040 |
Cover, Front Door Service Hole, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 67861 — Weatherstrip, Front Door, RH | ||||
| 67861-05020 |
Weatherstrip, Front Door, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67862 — Weatherstrip, Front Door, LH | ||||
| 67862-05020 |
Weatherstrip, Front Door, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67867G — Retainer, Door Weatherstrip, RH | ||||
| 67867-12150 |
Retainer, Door Weatherstrip, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67868L — Retainer, Door Weatherstrip, LH | ||||
| 67867-12150 |
Retainer, Door Weatherstrip, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67869B — Clip, Front Door Weatherstrip | ||||
| 67869-20030 |
Clip, Front Door Weatherstrip
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68101 — Glass Sub-assy, Front Door, RH | ||||
| 68101-05020 note |
Glass Sub-assy, Front Door, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68102 — Glass Sub-assy, Front Door, LH | ||||
| 68102-05020 note |
Glass Sub-assy, Front Door, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68141C — Run, Front Door Glass, RH | ||||
| 68141-05020 |
Run, Front Door Glass, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68145A — Cushion, Front Door Window | ||||
| 68145-05020 |
Cushion, Front Door Window
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68151C — Run, Front Door Glass, LH | ||||
| 68151-05020 |
Run, Front Door Glass, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68610B — Check Assy, Front Door, RH | ||||
| 68610-05030 |
Check Assy, Front Door, RH
1997-10 → 1999-12
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 68610-05031 |
Check Assy, Front Door, RH
1999-12 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68617 — Pin, Front Door Check | ||||
| 68617-20011 |
Pin, Front Door Check
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618 — Bracket, Front Door Check Arm, RH | ||||
| 68618-20020 |
Bracket, Front Door Check Arm, RH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618-20030 |
Bracket, Front Door Check Arm, RH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 68618C — Bracket, Front Door Check Arm, LH | ||||
| 68618-20020 |
Bracket, Front Door Check Arm, LH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618-20030 |
Bracket, Front Door Check Arm, LH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 68620 — Check Assy, Front Door, LH | ||||
| 68610-05030 |
Check Assy, Front Door, LH
1997-10 → 1999-12
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 68610-05031 |
Check Assy, Front Door, LH
1999-12 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
