Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

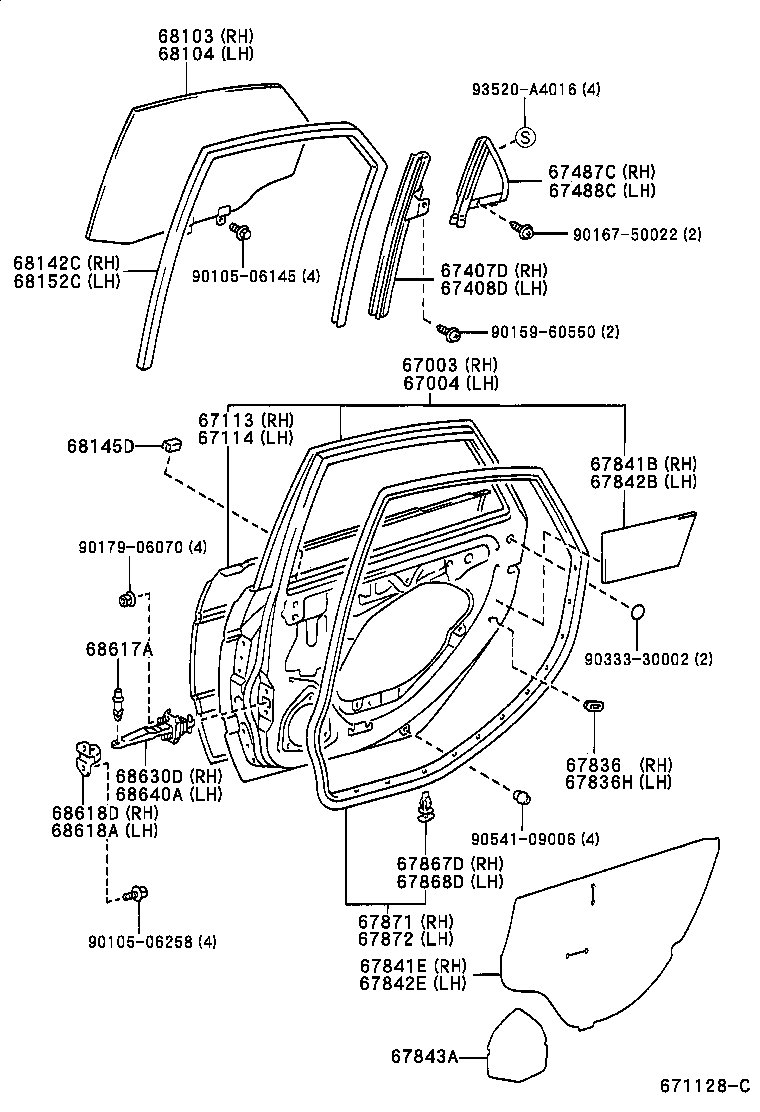

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67003 — Panel Sub-assy, Rear Door, RH | ||||
| 67003-05050 |
Panel Sub-assy, Rear Door, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 SED | — | |
| 67003-05050 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD SED | — | |
| 67003-05060 |
Panel Sub-assy, Rear Door, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LB | — | |
| 67003-05060 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD LB | — | |
| 67003-05070 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD WG | — | |
| 67003-05070 |
Panel Sub-assy, Rear Door, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 WG | — | |
| 67003-05080 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD SED | — | |
| 67003-05090 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD LB | — | |
| 67003-05100 |
Panel Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD WG | — | |
| 67004 — Panel Sub-assy, Rear Door, LH | ||||
| 67004-05050 |
Panel Sub-assy, Rear Door, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 SED | — | |
| 67004-05050 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD SED | — | |
| 67004-05060 |
Panel Sub-assy, Rear Door, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LB | — | |
| 67004-05060 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD LB | — | |
| 67004-05070 |
Panel Sub-assy, Rear Door, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 WG | — | |
| 67004-05070 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# LHD WG | — | |
| 67004-05080 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD SED | — | |
| 67004-05090 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD LB | — | |
| 67004-05100 |
Panel Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD WG | — | |
| 67113 — Panel, Rear Door, Outer RH | ||||
| 67113-05020 |
Panel, Rear Door, Outer RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67114 — Panel, Rear Door, Outer LH | ||||
| 67114-05020 |
Panel, Rear Door, Outer LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67407D — Guide Sub-assy, Rear Door Window, Rear RH | ||||
| 67407-05040 note |
Guide Sub-assy, Rear Door Window, Rear RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB,WG | — | |
| 67407-20300 note |
Guide Sub-assy, Rear Door Window, Rear RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB,WG | — | |
| 67408D — Guide Sub-assy, Rear Door Window, Rear LH | ||||
| 67408-05040 note |
Guide Sub-assy, Rear Door Window, Rear LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB,WG | — | |
| 67408-20290 note |
Guide Sub-assy, Rear Door Window, Rear LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB,WG | — | |
| 67487C — Seal, Rear Door Rear Guide, RH | ||||
| 67487-05030 |
Seal, Rear Door Rear Guide, RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 67487-05040 |
Seal, Rear Door Rear Guide, RH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 67488C — Seal, Rear Door Rear Guide, LH | ||||
| 67488-05030 |
Seal, Rear Door Rear Guide, LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 67488-05040 |
Seal, Rear Door Rear Guide, LH
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 67836 — Cover, Rear Door Lock Child Protection, RH | ||||
| 67836-02020 |
Cover, Rear Door Lock Child Protection, RH
2000-07 → 2002-03
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67836-12040 |
Cover, Rear Door Lock Child Protection, RH
2002-03 → —
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67836H — Cover, Rear Door Lock Child Protection, LH | ||||
| 67836-02020 |
Cover, Rear Door Lock Child Protection, LH
2000-07 → 2002-03
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67836-12040 |
Cover, Rear Door Lock Child Protection, LH
2002-03 → —
|
AZT220,CDT220,ZZT22# RHD | — | |
| 67841B — Cover, Rear Door Service Hole | ||||
| 67841-20370 |
Cover, Rear Door Service Hole
1999-02 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67841E — Cover, Rear Door Service Hole, RH | ||||
| 67805-05040 |
Cover, Rear Door Service Hole, RH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67805-05050 |
Cover, Rear Door Service Hole, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 67842B — Cover, Rear Door Service Hole, Lower | ||||
| 67842-20260 |
Cover, Rear Door Service Hole, Lower
1999-02 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67842E — Cover, Rear Door Service Hole, LH | ||||
| 67805-05040 |
Cover, Rear Door Service Hole, LH
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67806-05030 |
Cover, Rear Door Service Hole, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 67843A — Cover, Rear Door Service Hole, NO.2 | ||||
| 67843-05020 |
Cover, Rear Door Service Hole, NO.2
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 67867D — Retainer, Rear Door Weatherstrip, RH | ||||
| 67867-05030 note |
Retainer, Rear Door Weatherstrip, RH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# LB | — | |
| 67867-12150 note |
Retainer, Rear Door Weatherstrip, RH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# LB | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# SED,WG | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67868D — Retainer, Rear Door Weatherstrip, LH | ||||
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 67867-12150 note |
Retainer, Rear Door Weatherstrip, LH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# LB | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# SED,WG | — | |
| 67868-05030 note |
Retainer, Rear Door Weatherstrip, LH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# LB | — | |
| 67871 — Weatherstrip, Rear Door, RH | ||||
| 67871-05040 |
Weatherstrip, Rear Door, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SED | — | |
| 67871-05050 |
Weatherstrip, Rear Door, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 67871-05060 |
Weatherstrip, Rear Door, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 67872 — Weatherstrip, Rear Door, LH | ||||
| 67872-05040 |
Weatherstrip, Rear Door, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SED | — | |
| 67872-05050 |
Weatherstrip, Rear Door, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 67872-05060 |
Weatherstrip, Rear Door, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 68103 — Glass Sub-assy, Rear Door, RH | ||||
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-04
ended
|
AT22#,CT220 SED TERRA | — | |
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
2001-06 → —
|
ZZT220 SED;ST220 SED ATM;CDT220 +5 | — | |
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
1999-01 → 1999-04
ended
|
ST220 RHD SED | — | |
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
2000-07 → —
|
ST220 SED MTM | — | |
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# SED TERRA | — | |
| 68103-05040 note |
Glass Sub-assy, Rear Door, RH
1999-04 → 2000-07
ended
|
ST220 SED;AT22#,CT220 SED TERRA | — | |
| 68103-05050 note |
Glass Sub-assy, Rear Door, RH
2001-06 → —
|
ST220 LB;AZT220,CDT220,ZZT22# LB TERRA | — | |
| 68103-05050 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# LB TERRA | — | |
| 68103-05050 note |
Glass Sub-assy, Rear Door, RH
1999-04 → 2000-07
ended
|
ST220 LB;AT22#,CT220 LB TERRA | — | |
| 68103-05050 note |
Glass Sub-assy, Rear Door, RH
1999-01 → 1999-04
ended
|
ST220 RHD LB | — | |
| 68103-05050 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-04
ended
|
AT22#,CT220 LB TERRA | — | |
| 68103-05060 note |
Glass Sub-assy, Rear Door, RH
1999-04 → 2000-07
ended
|
ST220 WG;AT22#,CT220 WG TERRA | — | |
| 68103-05060 note |
Glass Sub-assy, Rear Door, RH
1999-01 → 1999-04
ended
|
ST220 RHD WG | — | |
| 68103-05060 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# WG TERRA | — | |
| 68103-05060 note |
Glass Sub-assy, Rear Door, RH
2001-06 → —
|
ST220 WG;AZT220,CDT220,ZZT22# WG TERRA | — | |
| 68103-05060 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-04
ended
|
AT22#,CT220 WG TERRA | — | |
| 68103-05070 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 SED (DCR,EFI,TDEFI) | — | |
| 68103-05070 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 SED SOL | — | |
| 68103-05070 note |
Glass Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# SED SOL | — | |
| 68103-05080 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LB SOL | — | |
| 68103-05080 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LB | — | |
| 68103-05080 note |
Glass Sub-assy, Rear Door, RH
2001-06 → —
|
AZT220,CDT220,ZZT22# LB SOL | — | |
| 68103-05080 note |
Glass Sub-assy, Rear Door, RH
2000-07 → 2001-06
ended
|
AZT220,CDT220,ST220,ZZT22# LB SOL | — | |
| 68103-05090 note |
Glass Sub-assy, Rear Door, RH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 WG SOL | — | |
| 68103-05090 note |
Glass Sub-assy, Rear Door, RH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 WG | — | |
| 68103-05090 note |
Glass Sub-assy, Rear Door, RH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# WG SOL | — | |
| 68104 — Glass Sub-assy, Rear Door, LH | ||||
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-04
ended
|
AT22#,CT220 SED TERRA | — | |
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
2001-06 → —
|
ZZT220 SED;ST220 SED ATM;CDT220 +5 | — | |
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
1999-01 → 1999-04
ended
|
ST220 RHD SED | — | |
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
2000-07 → —
|
ST220 SED MTM | — | |
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# SED TERRA | — | |
| 68104-05040 note |
Glass Sub-assy, Rear Door, LH
1999-04 → 2000-07
ended
|
ST220 SED;AT22#,CT220 SED TERRA | — | |
| 68104-05050 note |
Glass Sub-assy, Rear Door, LH
2001-06 → —
|
ST220 LB;AZT220,CDT220,ZZT22# LB TERRA | — | |
| 68104-05050 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# LB TERRA | — | |
| 68104-05050 note |
Glass Sub-assy, Rear Door, LH
1999-04 → 2000-07
ended
|
ST220 LB;AT22#,CT220 LB TERRA | — | |
| 68104-05050 note |
Glass Sub-assy, Rear Door, LH
1999-01 → 1999-04
ended
|
ST220 RHD LB | — | |
| 68104-05050 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-04
ended
|
AT22#,CT220 LB TERRA | — | |
| 68104-05060 note |
Glass Sub-assy, Rear Door, LH
1999-04 → 2000-07
ended
|
ST220 WG;AT22#,CT220 WG TERRA | — | |
| 68104-05060 note |
Glass Sub-assy, Rear Door, LH
2001-06 → —
|
ST220 WG;AZT220,CDT220,ZZT22# WG TERRA | — | |
| 68104-05060 note |
Glass Sub-assy, Rear Door, LH
1999-01 → 1999-04
ended
|
ST220 RHD WG | — | |
| 68104-05060 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2001-06
ended
|
AZT220,CDT220,ZZT22# WG TERRA | — | |
| 68104-05060 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-04
ended
|
AT22#,CT220 WG TERRA | — | |
| 68104-05070 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 SED (DCR,EFI,TDEFI) | — | |
| 68104-05070 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 SED SOL | — | |
| 68104-05070 note |
Glass Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# SED SOL | — | |
| 68104-05080 note |
Glass Sub-assy, Rear Door, LH
2001-06 → —
|
AZT220,CDT220,ZZT22# LB SOL | — | |
| 68104-05080 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LB SOL | — | |
| 68104-05080 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LB | — | |
| 68104-05080 note |
Glass Sub-assy, Rear Door, LH
2000-07 → 2001-06
ended
|
AZT220,CDT220,ST220,ZZT22# LB SOL | — | |
| 68104-05090 note |
Glass Sub-assy, Rear Door, LH
2000-07 → —
|
AZT220,CDT220,ST220,ZZT22# WG SOL | — | |
| 68104-05090 note |
Glass Sub-assy, Rear Door, LH
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 WG SOL | — | |
| 68104-05090 note |
Glass Sub-assy, Rear Door, LH
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 WG | — | |
| 68142C — Run, Rear Door Glass, RH | ||||
| 68142-05040 |
Run, Rear Door Glass, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SED | — | |
| 68142-05050 |
Run, Rear Door Glass, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 68142-05060 |
Run, Rear Door Glass, RH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 68145D — Cushion, Rear Door Window | ||||
| 68145-05020 |
Cushion, Rear Door Window
1997-10 → 1998-01
ended
|
AT22#,CT220,ST220 | — | |
| 68145-05040 |
Cushion, Rear Door Window
1998-01 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB,WG | — | |
| 68145-20050 |
Cushion, Rear Door Window
1998-01 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 SED | — | |
| 68152C — Run, Rear Door Glass, LH | ||||
| 68152-05040 |
Run, Rear Door Glass, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SED | — | |
| 68152-05050 |
Run, Rear Door Glass, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LB | — | |
| 68152-05060 |
Run, Rear Door Glass, LH
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# WG | — | |
| 68617A — Pin, Rear Door Check | ||||
| 68617-20011 |
Pin, Rear Door Check
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618A — Bracket, Rear Door Check Arm, LH | ||||
| 68618-20020 |
Bracket, Rear Door Check Arm, LH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618-20030 |
Bracket, Rear Door Check Arm, LH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 68618D — Bracket, Rear Door Check Arm, RH | ||||
| 68618-20020 |
Bracket, Rear Door Check Arm, RH
1997-10 → 2000-12
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68618-20030 |
Bracket, Rear Door Check Arm, RH
2000-12 → —
|
AZT220,CDT220,ST220,ZZT22# | — | |
| 68630D — Check Assy, Rear Door, RH | ||||
| 68630-05030 |
Check Assy, Rear Door, RH
1997-10 → 1999-12
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 68630-05031 |
Check Assy, Rear Door, RH
1999-12 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 68640A — Check Assy, Rear Door, LH | ||||
| 68630-05030 |
Check Assy, Rear Door, LH
1997-10 → 1999-12
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 68630-05031 |
Check Assy, Rear Door, LH
1999-12 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
