Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

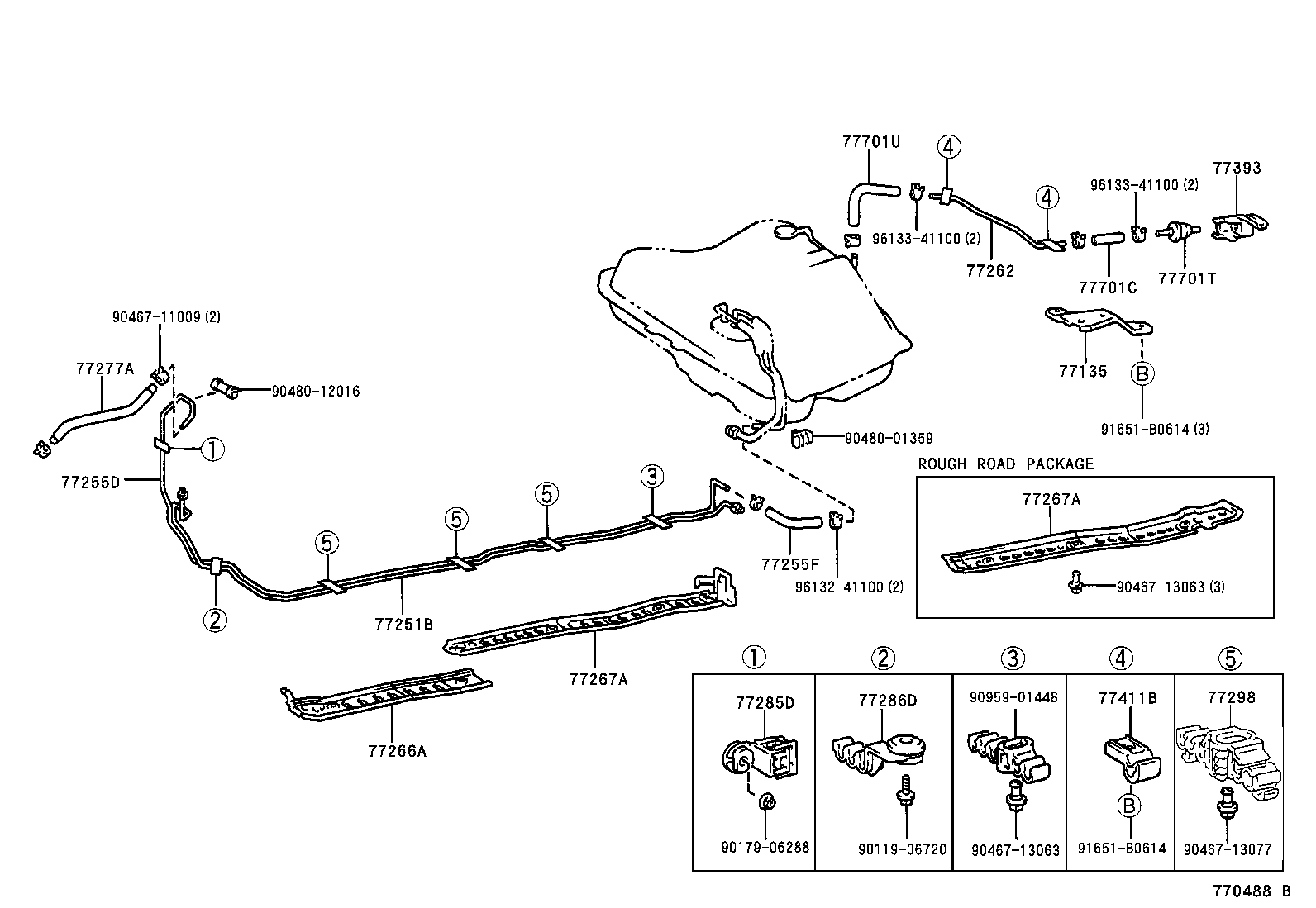

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77135 — Bracket, Check Valve | ||||
| 77277-20220 |
Bracket, Check Valve
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-05090 |
Tube, Fuel Main
1997-10 → 2000-07
ended
|
AT22#,ST220 RHD | — | |
| 77251-05100 |
Tube, Fuel Main
1997-10 → —
|
AT22#,ST220 LHD | — | |
| 77251-05110 |
Tube, Fuel Main
1997-10 → 2000-07
ended
|
CDT220,CT220 RHD | — | |
| 77251-05120 |
Tube, Fuel Main
1997-10 → 1998-08
ended
|
CT220 LHD | — | |
| 77251-05130 |
Tube, Fuel Main
1998-08 → 2000-07
ended
|
CDT220,CT220 LHD | — | |
| 77251-05140 |
Tube, Fuel Main
2000-07 → —
|
AZT220,ZZT22# RHD | — | |
| 77251-05150 |
Tube, Fuel Main
2000-07 → —
|
AZT220,ZZT22# LHD | — | |
| 77251-05160 |
Tube, Fuel Main
2000-07 → —
|
CDT220 RHD | — | |
| 77251-05170 |
Tube, Fuel Main
2000-07 → —
|
CDT220 LHD | — | |
| 77255D — Tube, Fuel Return | ||||
| 77255-05080 |
Tube, Fuel Return
1997-10 → 1998-02
ended
|
ST220 LHD SED;AT220 LHD +2 | — | |
| 77255-05080 |
Tube, Fuel Return
1998-02 → —
|
ST220 LHD;AT220 LHD SED +1 | — | |
| 77255-05090 |
Tube, Fuel Return
2000-07 → —
|
AZT220 | — | |
| 77255-05100 |
Tube, Fuel Return
1997-10 → 2000-07
ended
|
CDT220,CT220 RHD | — | |
| 77255-05110 |
Tube, Fuel Return
1997-10 → 2000-07
ended
|
CDT220,CT220 LHD | — | |
| 77255-05120 |
Tube, Fuel Return
2000-07 → —
|
CDT220 RHD | — | |
| 77255-05130 |
Tube, Fuel Return
2000-07 → —
|
CDT220 LHD | — | |
| 77255F — Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-53010 note |
Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
2000-07 → —
|
AZT220 | — | |
| 95333-06020 note |
Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1997-10 → 1998-02
ended
|
ST220 LHD SED;AT220 LHD +2 | — | |
| 95333-06020 note |
Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1997-10 → —
|
CDT220,CT220 | — | |
| 95333-06020 note |
Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1998-02 → —
|
AZT220;ST220 LHD;AT220 LHD SED +1 | — | |
| 77262 — Tube, Fuel Emission, NO.2 | ||||
| 77262-20020 |
Tube, Fuel Emission, NO.2
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
| 77266A — Protector, Fuel Tube, NO.1 | ||||
| 77266-05010 |
Protector, Fuel Tube, NO.1
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 77266-05010 |
Protector, Fuel Tube, NO.1
2000-07 → —
|
ST220 | — | |
| 77267A — Protector, Fuel Tube, NO.2 | ||||
| 77267-05030 |
Protector, Fuel Tube, NO.2
1999-08 → 2000-07
ended
|
CDT220 | — | |
| 77267-05030 note |
Protector, Fuel Tube, NO.2
1997-10 → —
|
AT22#,CT220,ST220 | — | |
| 77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77439-20010 |
Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2000-07 → —
|
AZT220 | — | |
| 90447-12084 note |
Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
| 90447-12153 note |
Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1997-10 → 1998-01
ended
|
ST220 LHD SED | — | |
| 90447-12153 note |
Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1998-01 → —
|
ST220 LHD | — | |
| 95337-06030 note |
Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2000-07 → —
|
AZT220,ZZT22# | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-20120 |
Clamp, Fuel Tube, NO.1
1997-10 → —
|
CDT220,CT220 | — | |
| 77285-20170 |
Clamp, Fuel Tube, NO.1
1997-10 → —
|
AT22#,ST220 | — | |
| 77285-20220 |
Clamp, Fuel Tube, NO.1
2000-07 → —
|
AZT220,ZZT22# | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77286-20151 |
Clamp, Fuel Tube, NO.2
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 77286-20151 |
Clamp, Fuel Tube, NO.2
2000-07 → —
|
ST220 | — | |
| 77286-20180 |
Clamp, Fuel Tube, NO.2
2000-07 → —
|
AZT220,ZZT22# | — | |
| 77298 — Clamp, Fuel Tube W/Grommet, NO.4 | ||||
| 77298-20050 |
Clamp, Fuel Tube W/Grommet, NO.4
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 | — | |
| 77298-20050 |
Clamp, Fuel Tube W/Grommet, NO.4
2000-07 → —
|
ST220 | — | |
| 77298-20090 |
Clamp, Fuel Tube W/Grommet, NO.4
2000-07 → —
|
AZT220,CDT220,ZZT22# | — | |
| 77393 — Protector, Check Valve | ||||
| 77393-20010 |
Protector, Check Valve
1997-10 → —
|
CDT220,CT220;AT220 LHD SED TERRA | — | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77412-30030 |
Support, Fuel Tube Grommet, NO.1
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
| 77701C — Hose, Fuel, NO.3 (FOR BREATHER VALVE) | ||||
| 95333-06010 note |
Hose, Fuel, NO.3 (FOR BREATHER VALVE)
1997-10 → 2000-07
ended
|
AT220 LHD SED TERRA | — | |
| 77701T — Valve, Check (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
Valve, Check (FOR MAIN FUEL TANK)
1997-10 → —
|
CDT220,CT220;AT220 LHD SED TERRA | — | |
| 77701U — Hose, Fuel (FOR CHECK VALVE) | ||||
| 95333-06030 note |
Hose, Fuel (FOR CHECK VALVE)
1997-10 → —
|
CDT220,CT220;AT220 LHD SED TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
