Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

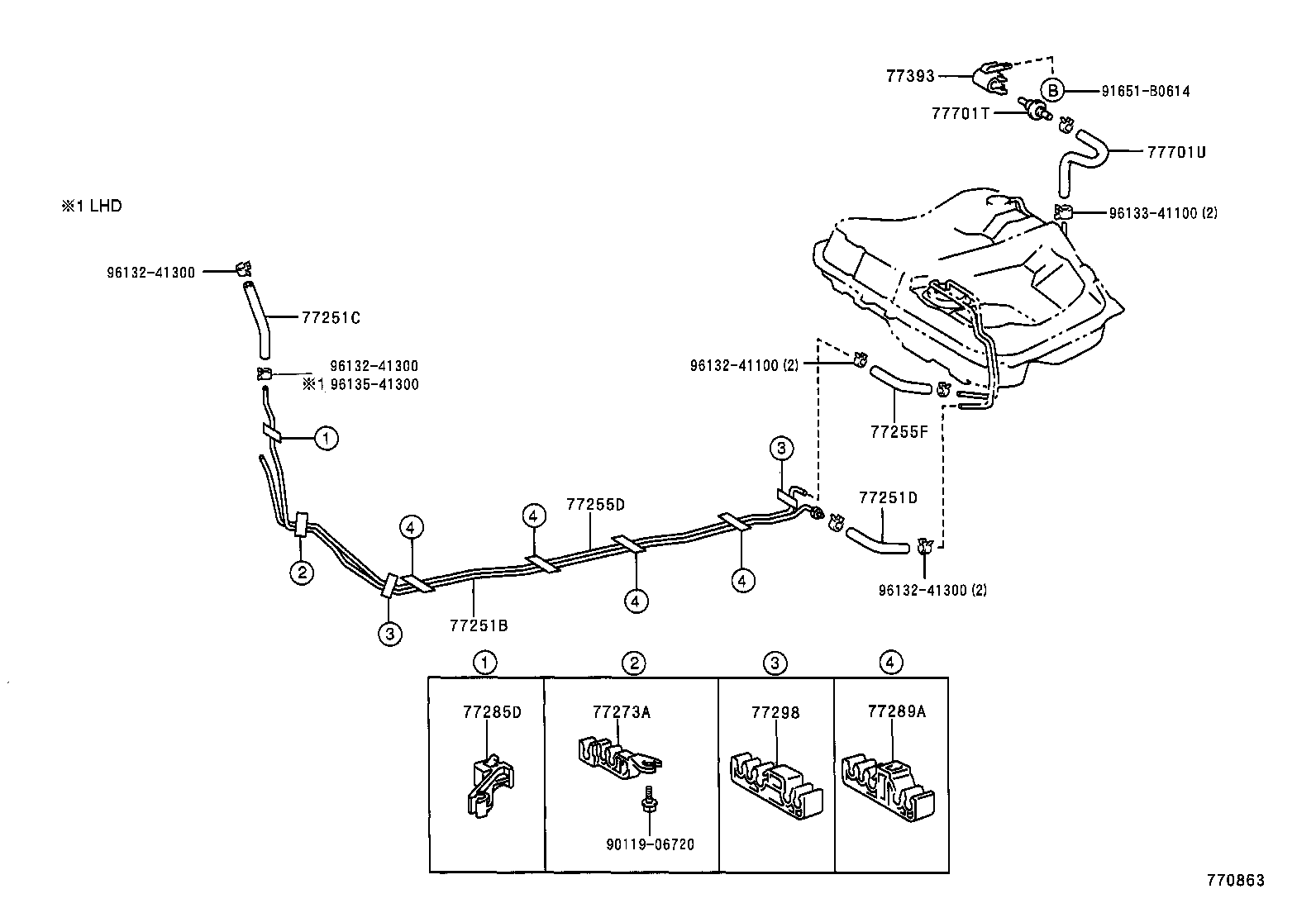

38 parts on this figure

Part number	Description	Fitment	Price
77251B — Tube, Fuel Main
77251-05090	Tube, Fuel Main 1997-10 → 2000-07 ended	AT22#,ST220 RHD	—
77251-05100	Tube, Fuel Main 1997-10 → —	AT22#,ST220 LHD	—
77251-05110	Tube, Fuel Main 1997-10 → 2000-07 ended	CDT220,CT220 RHD	—
77251-05120	Tube, Fuel Main 1997-10 → 1998-08 ended	CT220 LHD	—
77251-05130	Tube, Fuel Main 1998-08 → 2000-07 ended	CDT220,CT220 LHD	—
77251-05140	Tube, Fuel Main 2000-07 → —	AZT220,ZZT22# RHD	—
77251-05150	Tube, Fuel Main 2000-07 → —	AZT220,ZZT22# LHD	—
77251-05160	Tube, Fuel Main 2000-07 → —	CDT220 RHD	—
77251-05170	Tube, Fuel Main 2000-07 → —	CDT220 LHD	—
77251C — Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77259-20200 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1999-05 → 2000-07 ended	CT220 RHD	—
77259-20210 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1999-05 → 2000-07 ended	CT220 LHD	—
77259-20220 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1999-08 → —	CDT220	—
95333-08020 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1997-10 → 1998-08 ended	CT220 LHD	—
95333-08020 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1997-10 → 1999-05 ended	CT220 RHD	—
95333-08030 note	Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) 1998-08 → 1999-05 ended	CT220 LHD	—
77251D — Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
95333-08020 note	Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) 1997-10 → —	CDT220,CT220	—
77255D — Tube, Fuel Return
77255-05080	Tube, Fuel Return 1998-02 → —	ST220 LHD;AT220 LHD SED +1	—
77255-05080	Tube, Fuel Return 1997-10 → 1998-02 ended	ST220 LHD SED;AT220 LHD +2	—
77255-05090	Tube, Fuel Return 2000-07 → —	AZT220	—
77255-05100	Tube, Fuel Return 1997-10 → 2000-07 ended	CDT220,CT220 RHD	—
77255-05110	Tube, Fuel Return 1997-10 → 2000-07 ended	CDT220,CT220 LHD	—
77255-05120	Tube, Fuel Return 2000-07 → —	CDT220 RHD	—
77255-05130	Tube, Fuel Return 2000-07 → —	CDT220 LHD	—
77255F — Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77259-53010 note	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) 2000-07 → —	AZT220	—
95333-06020 note	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) 1997-10 → 1998-02 ended	ST220 LHD SED;AT220 LHD +2	—
95333-06020 note	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) 1997-10 → —	CDT220,CT220	—
95333-06020 note	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) 1998-02 → —	AZT220;ST220 LHD;AT220 LHD SED +1	—
77273A — Clamp, Fuel Tube W/Grommet, NO.6
77273-20050	Clamp, Fuel Tube W/Grommet, NO.6 2000-07 → —	AZT220,CDT220,ZZT22#	—
77285D — Clamp, Fuel Tube, NO.1
77285-20120	Clamp, Fuel Tube, NO.1 1997-10 → —	CDT220,CT220	—
77285-20170	Clamp, Fuel Tube, NO.1 1997-10 → —	AT22#,ST220	—
77285-20220	Clamp, Fuel Tube, NO.1 2000-07 → —	AZT220,ZZT22#	—
77289A — Clamp, Fuel Tube W/Grommet, NO.3
77289-20070	Clamp, Fuel Tube W/Grommet, NO.3 2000-07 → —	AZT220,CDT220,ZZT22#	—
77298 — Clamp, Fuel Tube W/Grommet, NO.4
77298-20050	Clamp, Fuel Tube W/Grommet, NO.4 1997-10 → 2000-07 ended	AT22#,CDT220,CT220,ST220	—
77298-20050	Clamp, Fuel Tube W/Grommet, NO.4 2000-07 → —	ST220	—
77298-20090	Clamp, Fuel Tube W/Grommet, NO.4 2000-07 → —	AZT220,CDT220,ZZT22#	—
77393 — Protector, Check Valve
77393-20010	Protector, Check Valve 1997-10 → —	CDT220,CT220;AT220 LHD SED TERRA	—
77701T — Valve, Check (FOR MAIN FUEL TANK)
90917-10082	Valve, Check (FOR MAIN FUEL TANK) 1997-10 → —	CDT220,CT220;AT220 LHD SED TERRA	—
77701U — Hose, Fuel (FOR CHECK VALVE)
95333-06030 note	Hose, Fuel (FOR CHECK VALVE) 1997-10 → —	CDT220,CT220;AT220 LHD SED TERRA	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
