Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

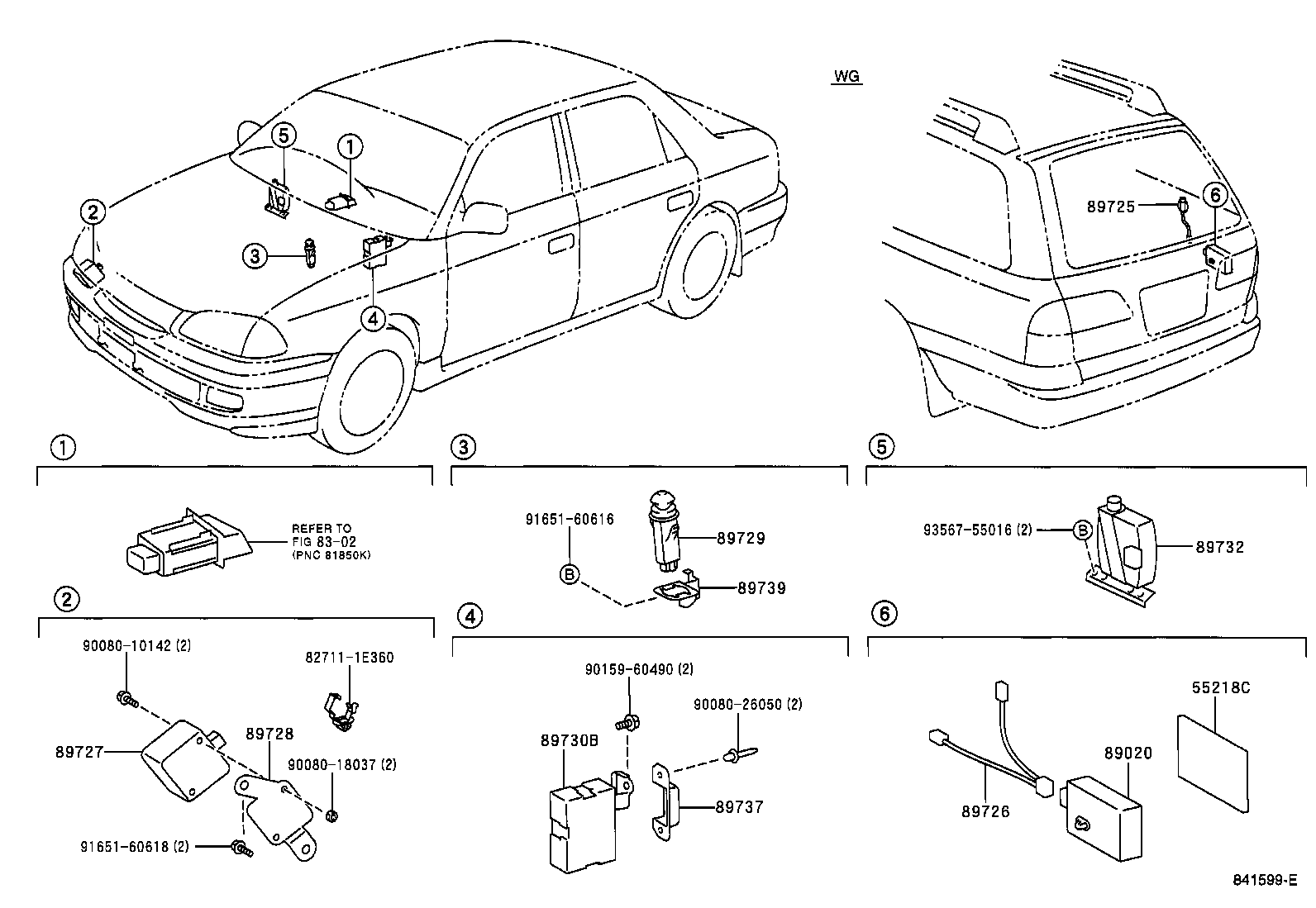

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55218C — Seal, Dash Panel Insulator | ||||
| 55218-20080 |
Seal, Dash Panel Insulator
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD WG | — | |
| 89020 — Computer Assy, Glass Breakage Sensor | ||||
| 89020-05010 |
Computer Assy, Glass Breakage Sensor
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD WG | — | |
| 89725 — Microphone, Glass Breakage Sensor | ||||
| 89725-05010 |
Microphone, Glass Breakage Sensor
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD WG | — | |
| 89726 — Harness, Glass Breakage Sensor Wire | ||||
| 89726-05010 |
Harness, Glass Breakage Sensor Wire
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD WG | — | |
| 89727 — Siren, Theft Warning | ||||
| 89727-05010 |
Siren, Theft Warning
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89728 — Bracket, Theft Warning Siren | ||||
| 89728-05010 |
Bracket, Theft Warning Siren
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89729 — Switch, Theft Warning Courtesy | ||||
| 84243-22010 |
Switch, Theft Warning Courtesy
2000-07 → —
|
AZT220,CDT220,ZZT22# RHD | — | |
| 89729-05010 |
Switch, Theft Warning Courtesy
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89730B — Computer Assy, Theft Warning | ||||
| 89730-05010 |
Computer Assy, Theft Warning
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89732 — Sensor, Theft Warning Radar | ||||
| 89732-05010 |
Sensor, Theft Warning Radar
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89737 — Bracket, Theft Warning Computer, NO.1 | ||||
| 89737-05010 |
Bracket, Theft Warning Computer, NO.1
1997-10 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 89739 — Bracket, Theft Warning Courtesy Switch | ||||
| 89739-05010 |
Bracket, Theft Warning Courtesy Switch
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
