Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

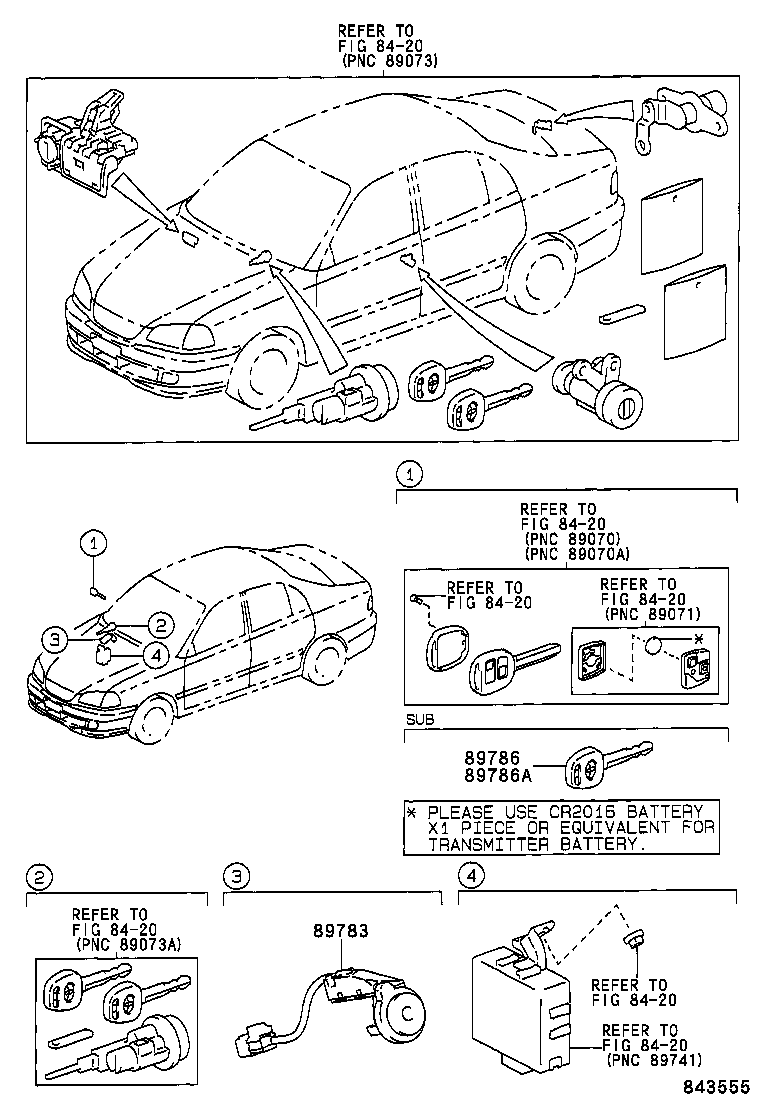

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89783 — Amplifier, Transponder Key | ||||
| 89783-02010 |
Amplifier, Transponder Key
2000-07 → —
|
AZT220,ZZT22# | — | |
| 89786 — Transmitter, Transponder Key Sub | ||||
| 89786-02020 |
Transmitter, Transponder Key Sub
1999-01 → —
|
AT22#,CDT220,CT220,ST220 DCR,EFI,TDEFI | — | |
| 89786-05020 |
Transmitter, Transponder Key Sub
1997-10 → 1999-01
ended
|
AT22#,CT220,ST220 EFI,TDEFI | — | |
| 89786-05020 |
Transmitter, Transponder Key Sub
2000-07 → —
|
AZT220,ZZT22# | — | |
| 89786A — Transmitter, Transponder Cut Key Sub | ||||
| 89786-02030 |
Transmitter, Transponder Cut Key Sub
1999-01 → —
|
AT22#,CDT220,CT220,ST220 DCR,EFI,TDEFI | — | |
| 89786-05030 |
Transmitter, Transponder Cut Key Sub
1997-10 → 1999-01
ended
|
AT22#,CT220,ST220 EFI,TDEFI | — | |
| 89786-05030 |
Transmitter, Transponder Cut Key Sub
2000-07 → —
|
AZT220,ZZT22# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
