Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

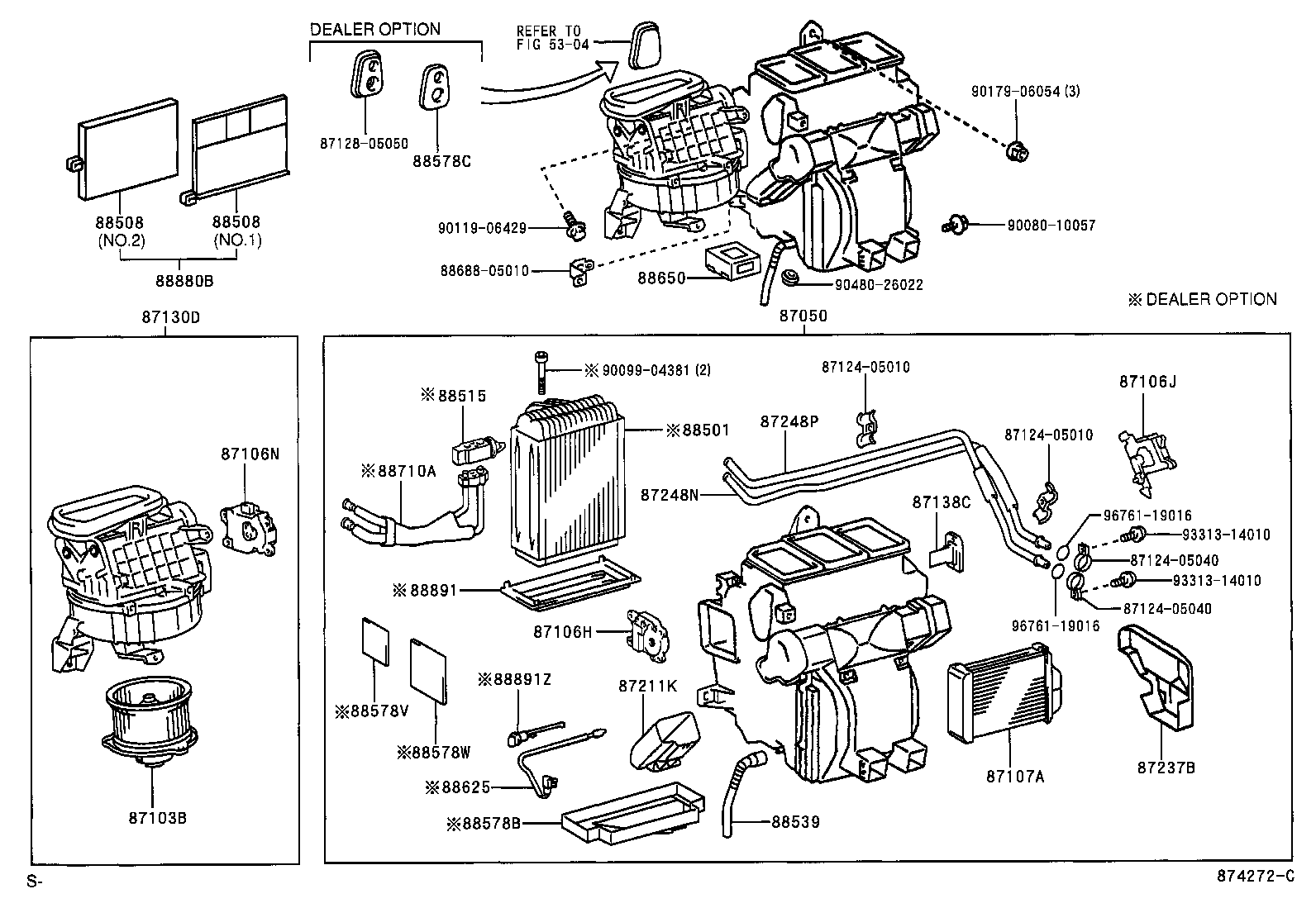

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-05130 |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 RHD | — | |
| 87050-05140 |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 LHD | — | |
| 87050-05150 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 LHD (EFI,TDEFI) | — | |
| 87050-05160 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220 RHD | — | |
| 87050-05170 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220 LHD | — | |
| 87050-05180 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
AT22#,CT220 LHD (EFI,TDEFI) | — | |
| 87050-05190 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
ST220 RHD | — | |
| 87050-05200 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
ST220 LHD | — | |
| 87050-05210 note |
Radiator Assy, Air Conditioner
1997-10 → 1999-05
ended
|
ST220 LHD | — | |
| 87050-05240 |
Radiator Assy, Air Conditioner
1999-08 → 2000-07
ended
|
CDT220 RHD | — | |
| 87050-05250 |
Radiator Assy, Air Conditioner
1999-08 → 2000-07
ended
|
CDT220 LHD | — | |
| 87050-05260 note |
Radiator Assy, Air Conditioner
1999-08 → 2000-07
ended
|
CDT220 RHD | — | |
| 87050-05270 note |
Radiator Assy, Air Conditioner
1999-08 → 2000-07
ended
|
CDT220 LHD | — | |
| 87050-05310 |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CT220,ST220 RHD | — | |
| 87050-05320 |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CT220,ST220 LHD | — | |
| 87050-05330 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LHD (DCR,EFI,TDEFI) | — | |
| 87050-05340 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CT220 RHD | — | |
| 87050-05350 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CT220 LHD | — | |
| 87050-05360 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
AT22#,CT220 LHD (EFI,TDEFI) | — | |
| 87050-05360 note |
Radiator Assy, Air Conditioner
1999-08 → 2000-07
ended
|
CDT220 LHD | — | |
| 87050-05370 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
ST220 RHD | — | |
| 87050-05380 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
ST220 LHD | — | |
| 87050-05390 note |
Radiator Assy, Air Conditioner
1999-05 → 2000-07
ended
|
ST220 LHD | — | |
| 87050-05410 |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220,ZZT22# RHD | — | |
| 87050-05420 |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
CDT220 RHD | — | |
| 87050-05490 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220,ZZT22# RHD | — | |
| 87050-05500 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
CDT220 RHD | — | |
| 87050-05510 |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220,ST220,ZZT22# LHD | — | |
| 87050-05520 |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
CDT220 LHD | — | |
| 87050-05530 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220,CDT220,ZZT22# LHD | — | |
| 87050-05540 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
ST220,ZZT22# LHD | — | |
| 87050-05550 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
CDT220,ZZT22# LHD | — | |
| 87050-05560 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
CDT220 LHD | — | |
| 87050-05570 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220 LHD | — | |
| 87050-05580 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220 LHD | — | |
| 87050-05590 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220 LHD | — | |
| 87050-05600 note |
Radiator Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220 LHD | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-05010 |
Motor Sub-assy, Blower W/Fan
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 RHD | — | |
| 87103-05010 |
Motor Sub-assy, Blower W/Fan
2000-07 → 2002-10
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87103-05020 |
Motor Sub-assy, Blower W/Fan
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 87103-05020 |
Motor Sub-assy, Blower W/Fan
2000-07 → 2002-10
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87103-05030 |
Motor Sub-assy, Blower W/Fan
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 87103-05040 |
Motor Sub-assy, Blower W/Fan
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LHD | — | |
| 87103-20090 |
Motor Sub-assy, Blower W/Fan
2002-10 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87103-22120 |
Motor Sub-assy, Blower W/Fan
2002-10 → 2003-01
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87106H — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-20350 |
Servo Sub-assy, Damper(FOR AIRMIX)
1997-10 → 2000-07
ended
|
ST220 | — | |
| 87106-20390 |
Servo Sub-assy, Damper(FOR AIRMIX)
2002-10 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87106-20500 |
Servo Sub-assy, Damper(FOR AIRMIX)
2000-07 → 2002-10
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87106-20510 |
Servo Sub-assy, Damper(FOR AIRMIX)
2000-07 → 2003-01
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-20460 |
Servo Sub-assy, Damper(FOR MODE)
2000-07 → 2003-01
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87106-20480 |
Servo Sub-assy, Damper(FOR MODE)
2000-07 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87106N — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-20360 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2000-07 → 2003-01
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87106-20490 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2000-07 → 2002-10
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87106-20490 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2002-10 → 2003-01
ended
|
AZT220,CDT220,ZZT22# LHD | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-05050 |
Unit Sub-assy, Heater Radiator
1997-10 → 2003-01
ended
|
AT22#,AZT220,CT220,ST220,ZZT22# RHD | — | |
| 87107-05060 |
Unit Sub-assy, Heater Radiator
1997-10 → 2003-01
ended
|
AT22#,AZT220,CT220,ST220,ZZT22# LHD | — | |
| 87107-05070 note |
Unit Sub-assy, Heater Radiator
1997-10 → 2000-07
ended
|
AT22#,CT220,ST220 LHD (EFI,TDEFI) | — | |
| 87107-05070 |
Unit Sub-assy, Heater Radiator
1999-08 → 2003-01
ended
|
CDT220 LHD | — | |
| 87107-05070 note |
Unit Sub-assy, Heater Radiator
2000-07 → 2003-01
ended
|
AZT220,ZZT22# LHD | — | |
| 87107-05080 |
Unit Sub-assy, Heater Radiator
1999-08 → 2003-01
ended
|
CDT220 RHD | — | |
| 87130D — Blower Assy | ||||
| 87130-05050 |
Blower Assy
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 RHD | — | |
| 87130-05060 |
Blower Assy
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 LHD | — | |
| 87130-05070 |
Blower Assy
1999-05 → 1999-08
ended
|
AT22#,CT220,ST220 RHD | — | |
| 87130-05080 |
Blower Assy
1999-05 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 87130-05100 |
Blower Assy
2000-07 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87130-05110 |
Blower Assy
2000-07 → 2003-01
ended
|
AZT220,CDT220,ZZT22# RHD | — | |
| 87130-05120 |
Blower Assy
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 RHD | — | |
| 87130-05130 |
Blower Assy
1999-08 → 2000-07
ended
|
AT22#,CDT220,CT220,ST220 LHD | — | |
| 87138C — Resistor, Blower | ||||
| 87138-05030 |
Resistor, Blower
1999-02 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 87138-20340 |
Resistor, Blower
1997-10 → 1999-02
ended
|
AT22#,CT220,ST220 | — | |
| 87138-20340 |
Resistor, Blower
1999-02 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 87211K — Duct, Air | ||||
| 87201-05150 |
Duct, Air
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 87201-05160 |
Duct, Air
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 87237B — Cover, Heater Piping | ||||
| 87237-05030 |
Cover, Heater Piping
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 87237-05040 |
Cover, Heater Piping
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 87248N — Pipe, Heater Water Inlet | ||||
| 87248-05010 |
Pipe, Heater Water Inlet
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 87248-05030 |
Pipe, Heater Water Inlet
1997-10 → 2002-10
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 87248-05050 |
Pipe, Heater Water Inlet
2002-10 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 87248P — Pipe, Heater Water Outlet | ||||
| 87248-05020 |
Pipe, Heater Water Outlet
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 87248-05040 |
Pipe, Heater Water Outlet
1997-10 → 2002-10
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 87248-05060 |
Pipe, Heater Water Outlet
2002-10 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-05030 note |
Evaporator Sub-assy, Cooler, NO.1
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 | — | |
| 88501-05030 note |
Evaporator Sub-assy, Cooler, NO.1
1999-05 → 2000-07
ended
|
CT220 TD | — | |
| 88501-05030 |
Evaporator Sub-assy, Cooler, NO.1
1999-05 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# D4,DCR,EFI,TDEFI | — | |
| 88501-05040 note |
Evaporator Sub-assy, Cooler, NO.1
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88508 — Filter Sub-assy, Clean Air | ||||
| 88508-20060 note |
Filter Sub-assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 RHD | — | |
| 88508-20070 note |
Filter Sub-assy, Clean Air
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88508-20080 note |
Filter Sub-assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88508-20090 note |
Filter Sub-assy, Clean Air
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88508-20100 note |
Filter Sub-assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 RHD | — | |
| 88508-20110 note |
Filter Sub-assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88508-20130 note |
Filter Sub-assy, Clean Air
1999-08 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88508-20150 note |
Filter Sub-assy, Clean Air
1999-08 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88508-20170 note |
Filter Sub-assy, Clean Air
1999-08 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88508-20180 note |
Filter Sub-assy, Clean Air
1999-08 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-20100 |
Valve, Cooler Expansion
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-05030 |
Hose, Cooler Unit Drain, NO.1
1999-05 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 88539-20270 |
Hose, Cooler Unit Drain, NO.1
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 RHD | — | |
| 88539-20280 |
Hose, Cooler Unit Drain, NO.1
1997-10 → 1999-05
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88578B — Packing, Cooling Unit, NO.1 | ||||
| 88578-05010 |
Packing, Cooling Unit, NO.1
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88578-05020 |
Packing, Cooling Unit, NO.1
1997-10 → —
|
AT22#,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88578C — Packing, Cooling Unit, NO.2 | ||||
| 88578-05030 |
Packing, Cooling Unit, NO.2
1997-10 → —
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88578-05040 |
Packing, Cooling Unit, NO.2
1997-10 → —
|
AT22#,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88578V — Packing, Cooling Unit, NO.3 | ||||
| 88578-16260 |
Packing, Cooling Unit, NO.3
2000-07 → —
|
AZT220 RHD;CDT220,ST220,ZZT22# | — | |
| 88578W — Packing, Cooling Unit, NO.4 | ||||
| 88578-38010 |
Packing, Cooling Unit, NO.4
2000-07 → —
|
AZT220 RHD;CDT220,ST220,ZZT22# | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-3A090 |
Thermistor, Cooler, NO.1
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-05050 |
Amplifier Assy, Cooler Stabilizer
1997-10 → 2000-07
ended
|
AT22# | — | |
| 88650-05060 |
Amplifier Assy, Cooler Stabilizer
1997-10 → —
|
AZT220,CDT220,CT220,ST220,ZZT22# D4,DCR,EFI,TDEFI | — | |
| 88650-05070 |
Amplifier Assy, Cooler Stabilizer
1997-10 → 2000-07
ended
|
CT220 TD | — | |
| 88650-05080 note |
Amplifier Assy, Cooler Stabilizer
1997-10 → 2000-07
ended
|
ST220 | — | |
| 88710A — Tube Assy, Air Conditioner | ||||
| 88710-05020 |
Tube Assy, Air Conditioner
1997-10 → 2003-01
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88710-05030 |
Tube Assy, Air Conditioner
1997-10 → 2003-01
ended
|
AT22#,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88710-05210 |
Tube Assy, Air Conditioner
2000-07 → 2003-01
ended
|
AZT220 LHD | — | |
| 88880B — Filter Assy, Clean Air | ||||
| 88880-20060 note |
Filter Assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88880-20070 |
Filter Assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 RHD | — | |
| 88880-20080 |
Filter Assy, Clean Air
1997-10 → 1999-08
ended
|
AT22#,CT220,ST220 LHD | — | |
| 88880-20110 note |
Filter Assy, Clean Air
1999-08 → 2001-07
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88880-20120 |
Filter Assy, Clean Air
1999-08 → 2001-07
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# RHD | — | |
| 88880-20130 |
Filter Assy, Clean Air
1999-08 → 2001-07
ended
|
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LHD | — | |
| 88891 — Packing (FOR COOLER) | ||||
| 88891-20160 |
Packing (FOR COOLER)
1997-10 → —
|
AT22# LHD;AZT220 RHD;CDT220,CT220,ST220,ZZT22# | — | |
| 88891Z — Bracket, Cooler Thermistor | ||||
| 88891-20240 |
Bracket, Cooler Thermistor
1997-10 → 2000-07
ended
|
CDT220;AT22#,CT220,ST220 RHD | — | |
| 88891-20240 note |
Bracket, Cooler Thermistor
2000-07 → 2003-01
ended
|
AZT220 RHD;CDT220,ST220,ZZT22# | — | |
| 88891-44050 |
Bracket, Cooler Thermistor
1997-10 → 2000-07
ended
|
CT220 TD | — | |
| 88891-44050 |
Bracket, Cooler Thermistor
2000-07 → 2003-01
ended
|
AZT220,CDT220,ST220,ZZT22# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
