Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Radiator & Water Outlet

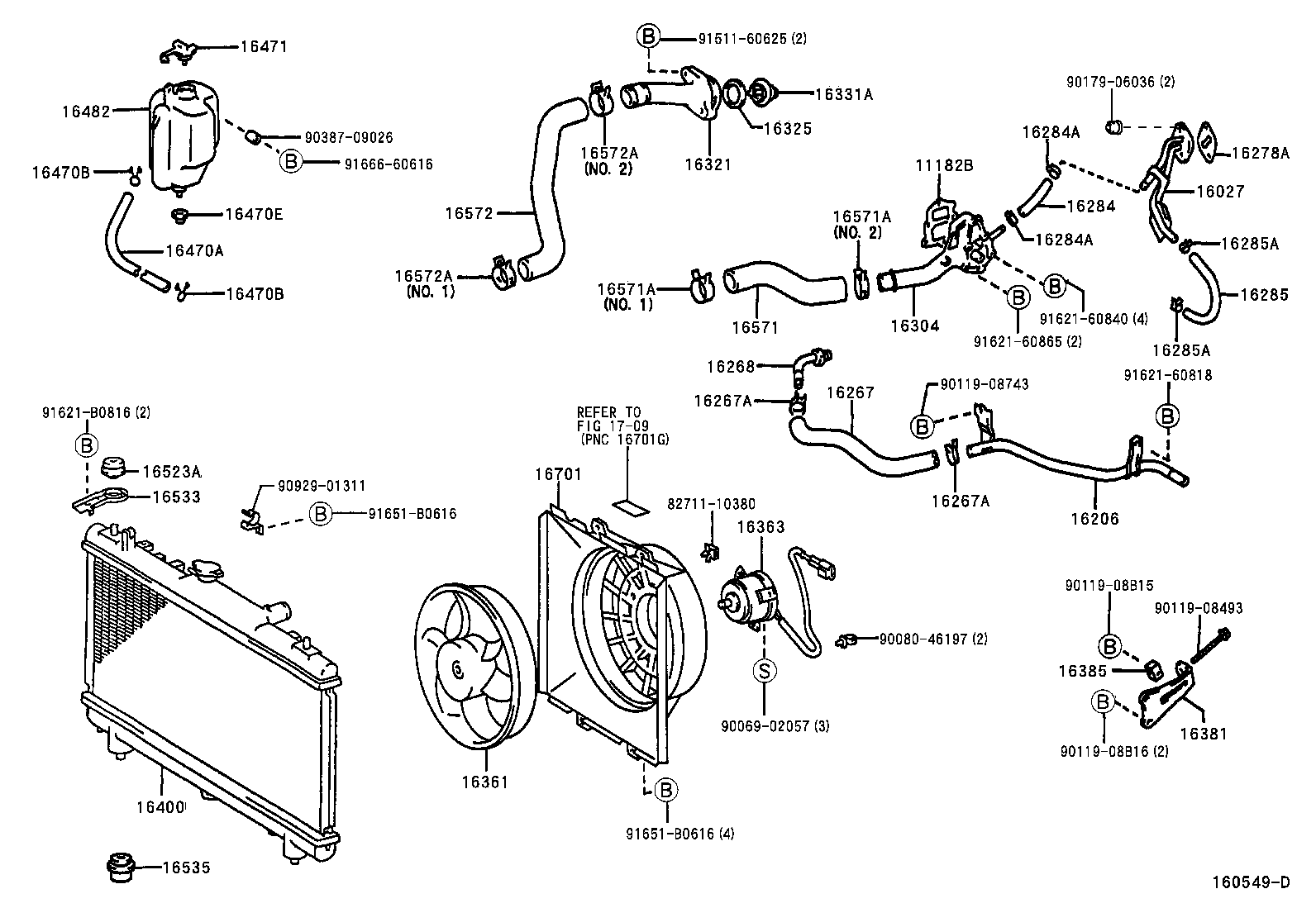

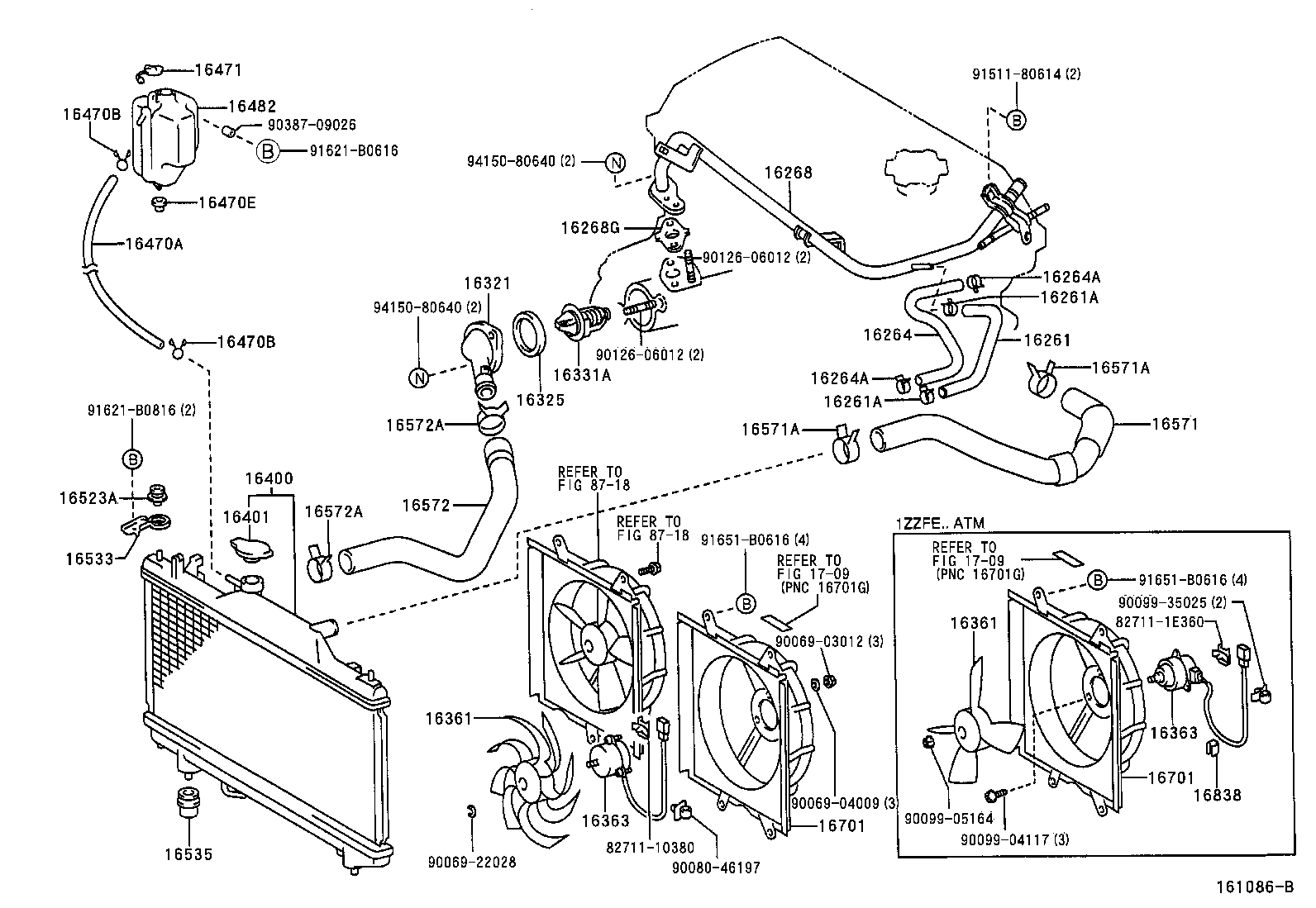

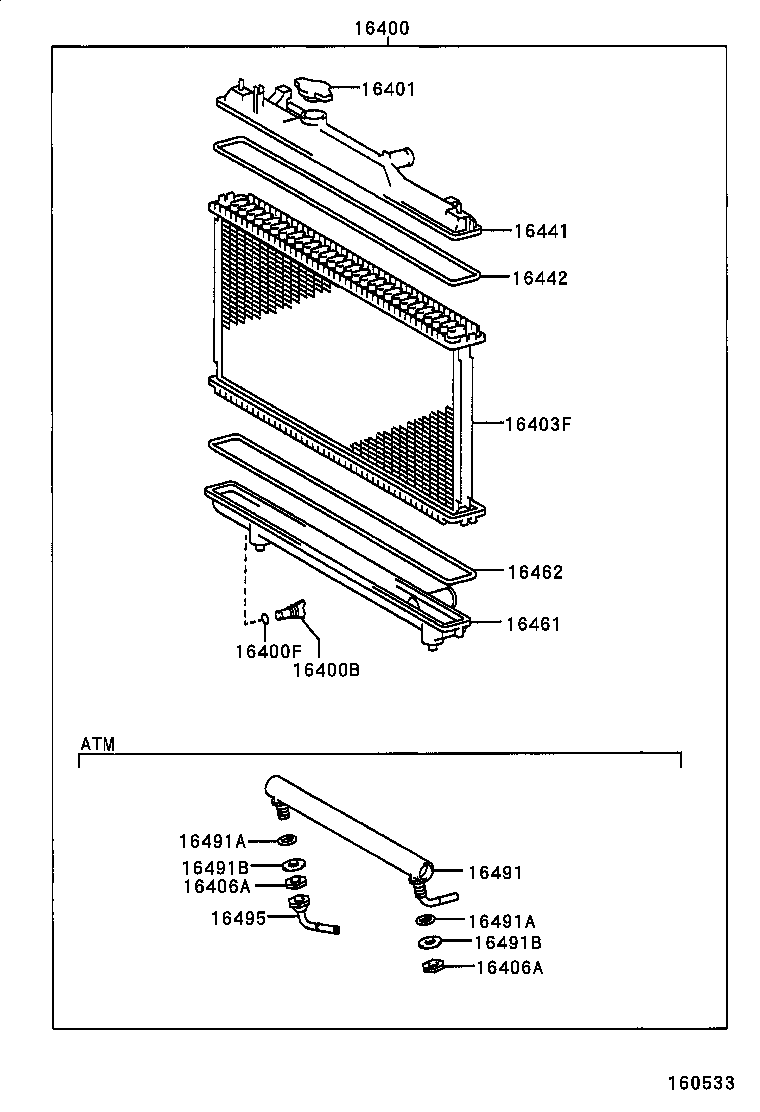

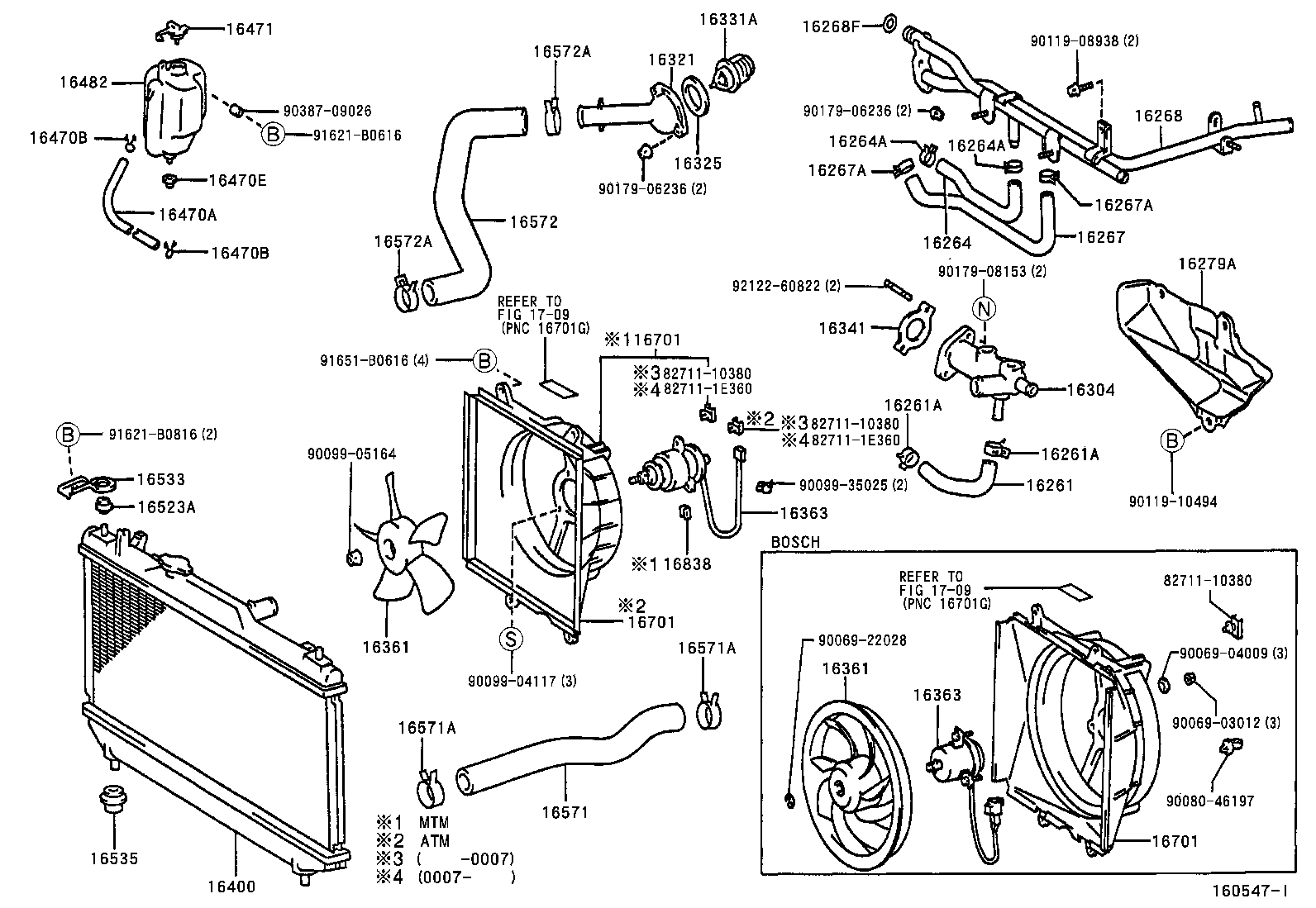

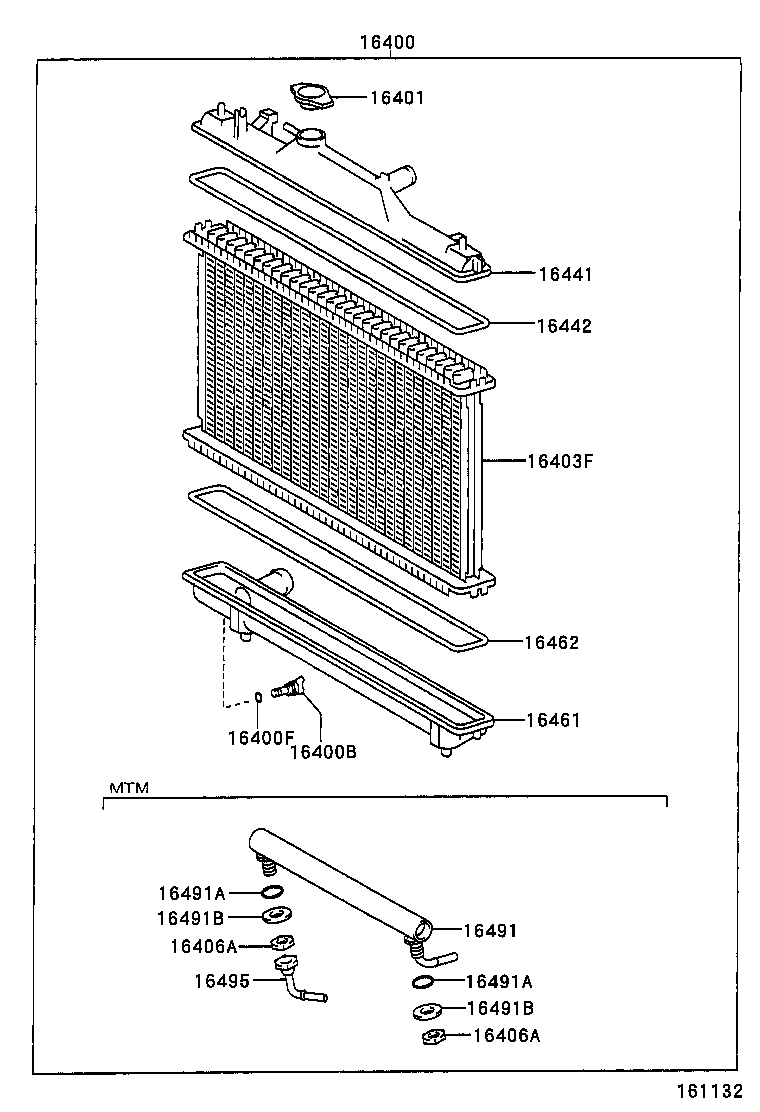

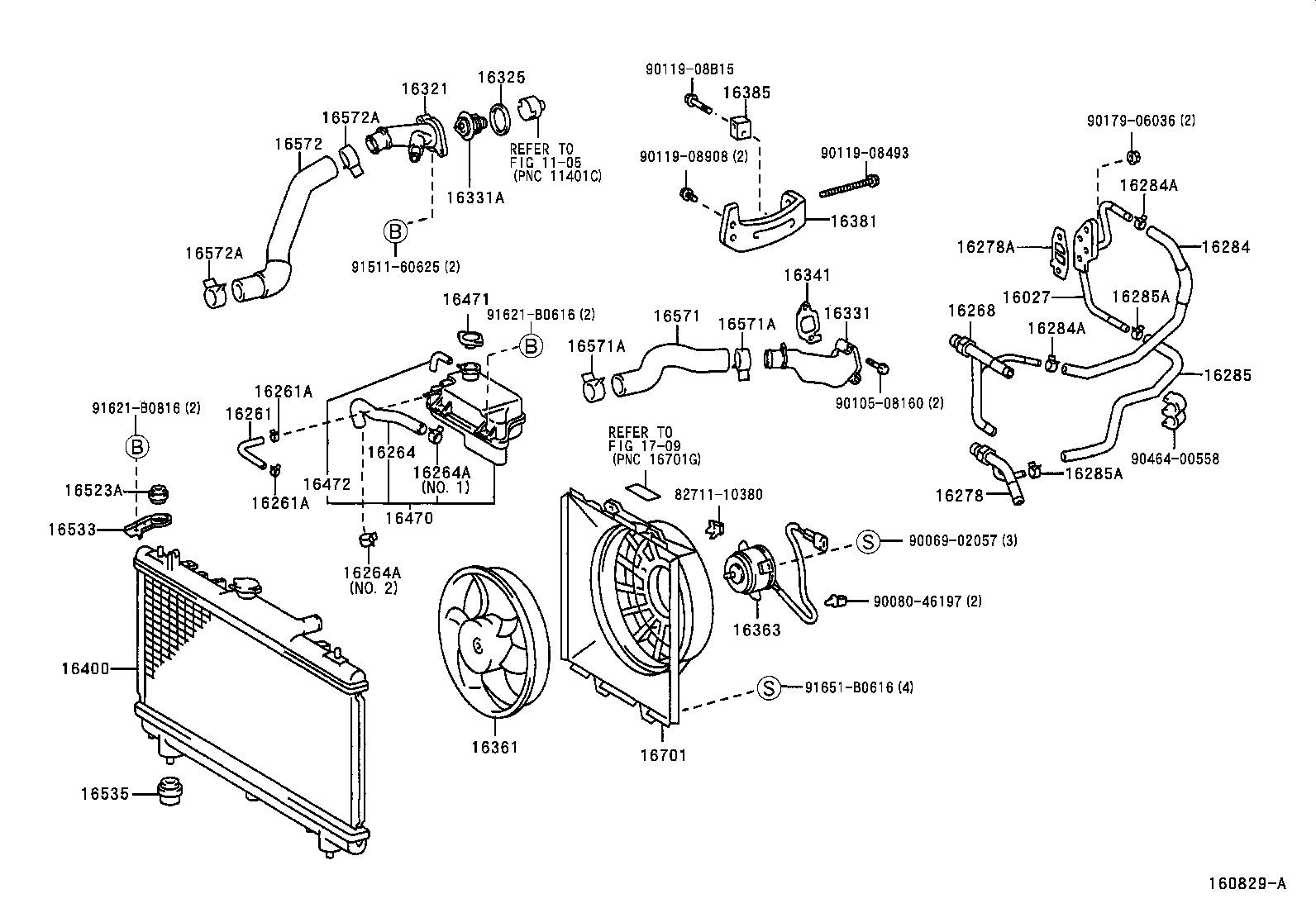

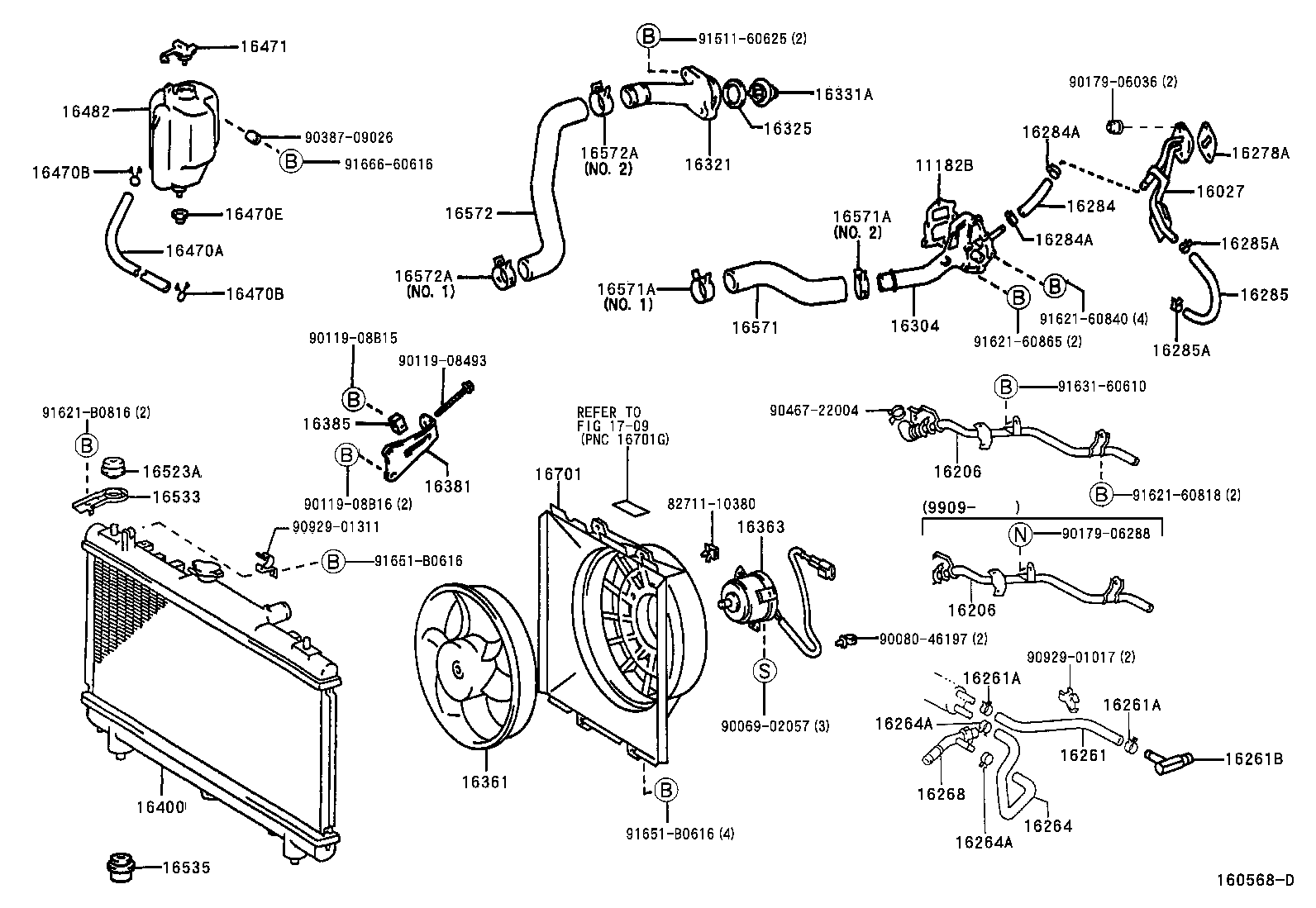

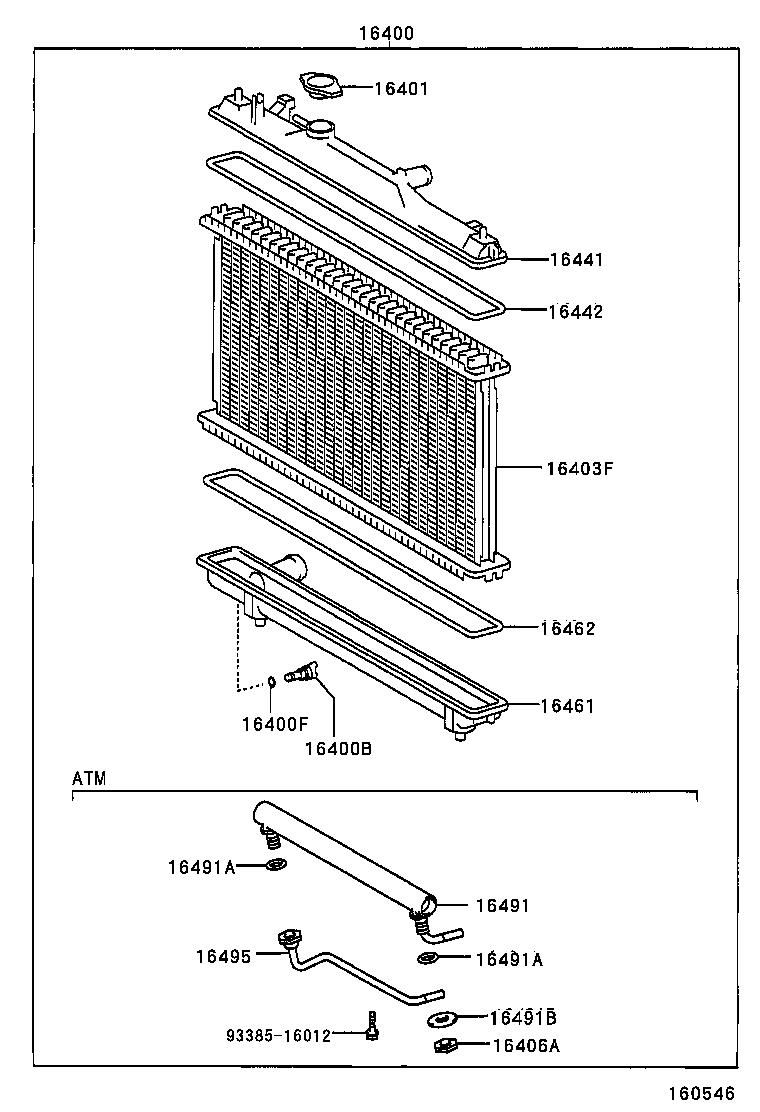

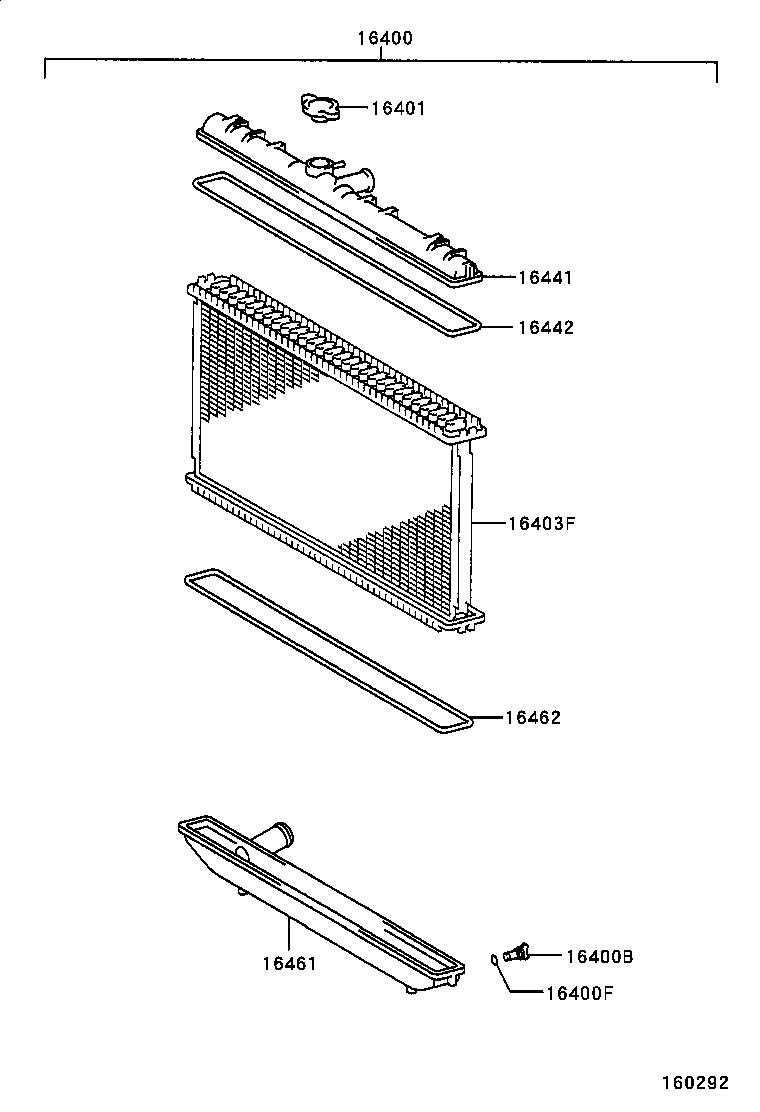

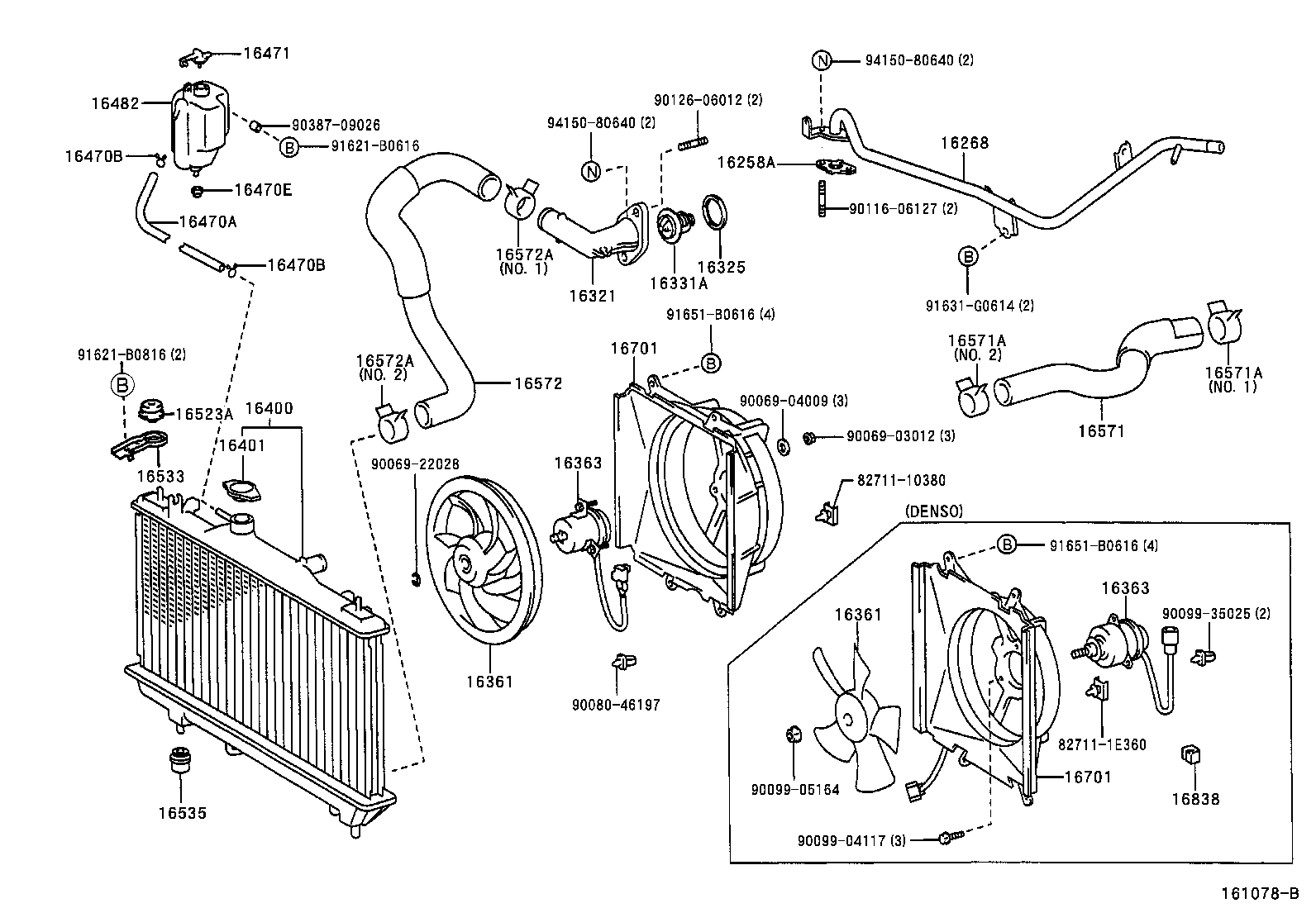

66 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 11182B | Gasket, Cylinder Head Rear Plate |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16258A | Gasket(FOR HEATER RETURN) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278A | Gasket, Water By-pass |
| 16279A | Protector, Hose Heat |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16347D | Gasket, Water By-pass |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16406A | Support(FOR OIL COOLER) |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470E | Grommet, Radiator Reserve Tank Hose |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16482 | Tank Sub-assy, Radiator Reserve |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16495 | Nut, Flare(FOR ATM OIL COOLER) |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16701 | Shroud Sub-assy, Fan |
| 16838 | Clamp, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
