Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

67 part groups · 13 illustrations

Illustrations

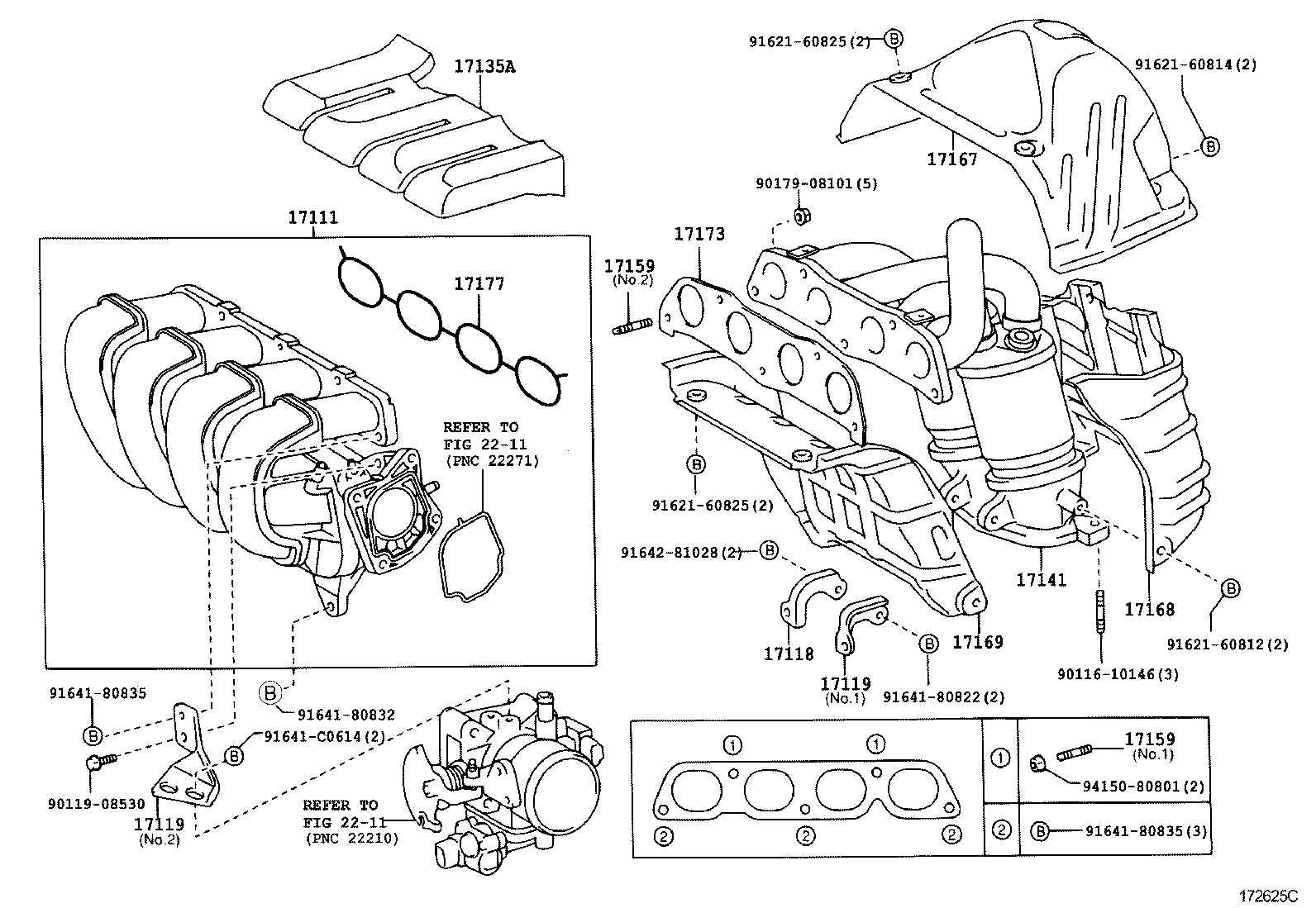

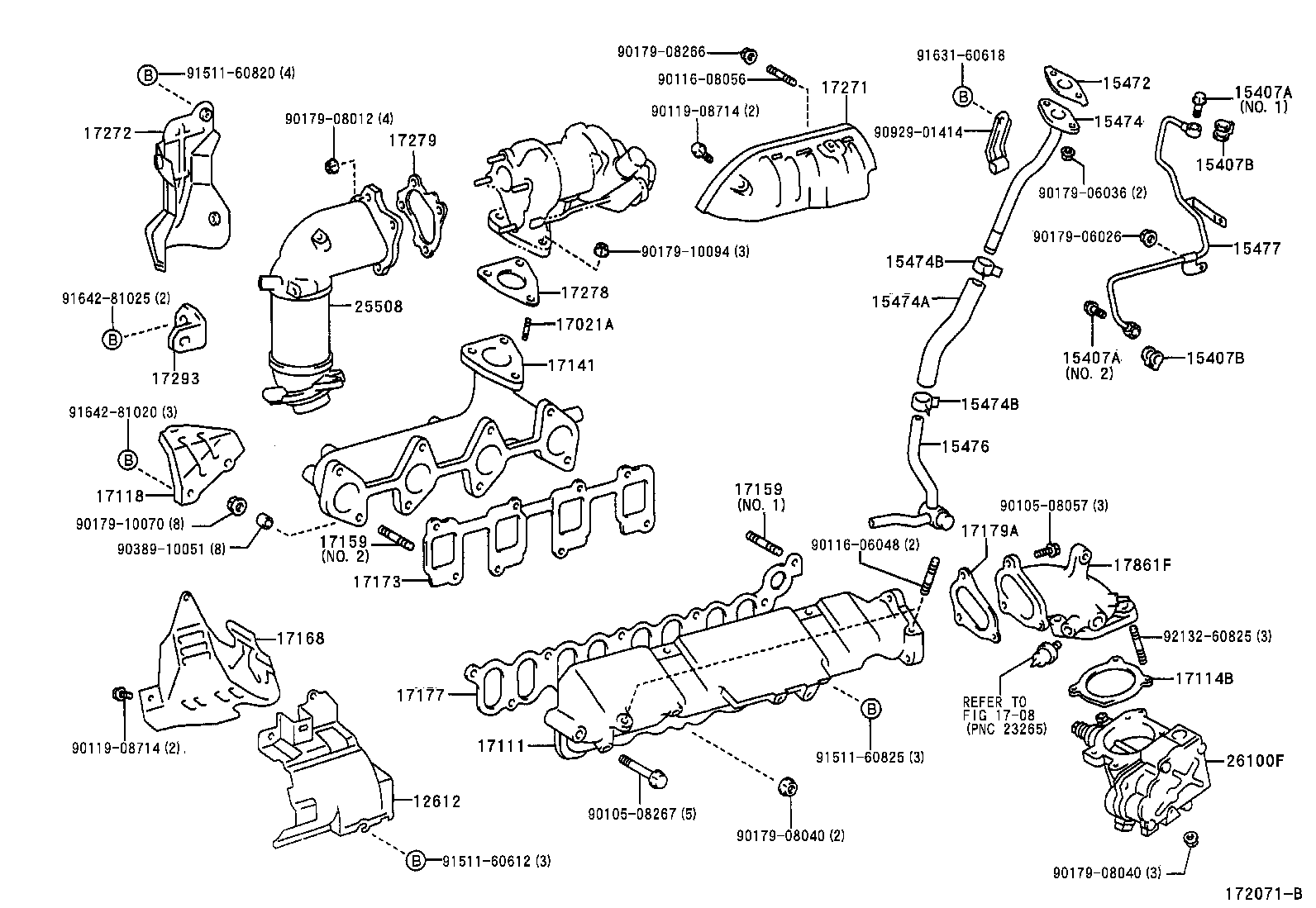

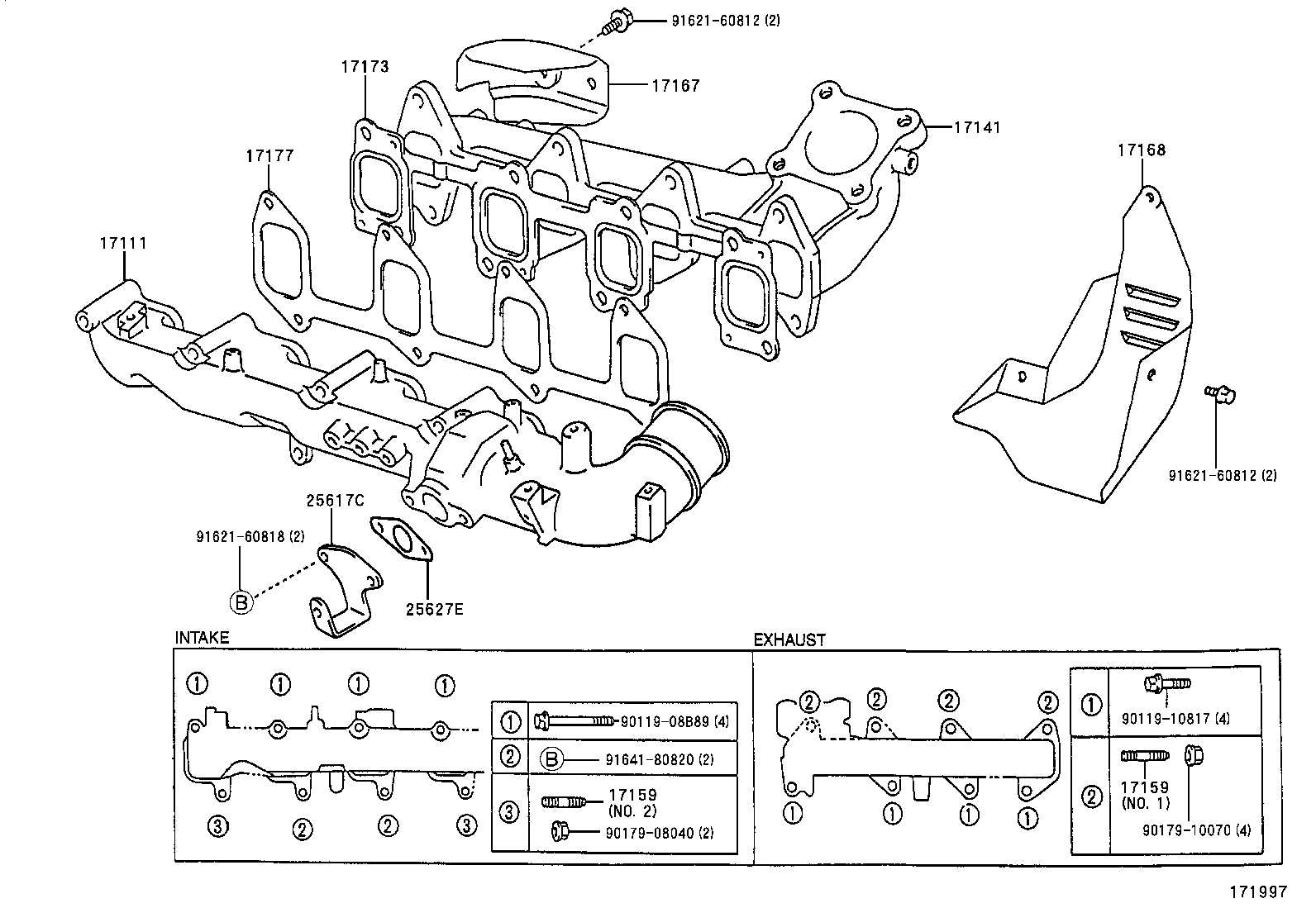

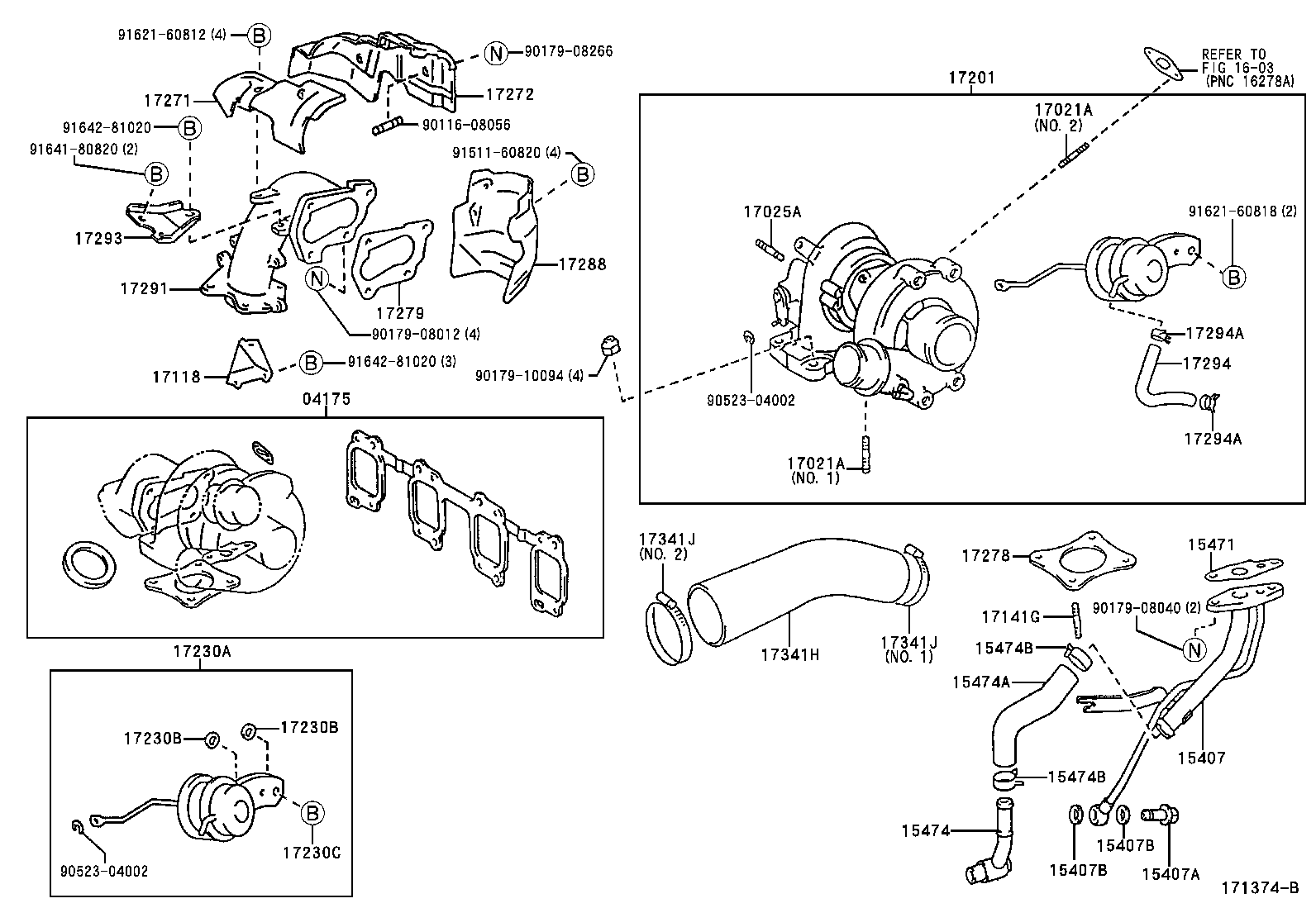

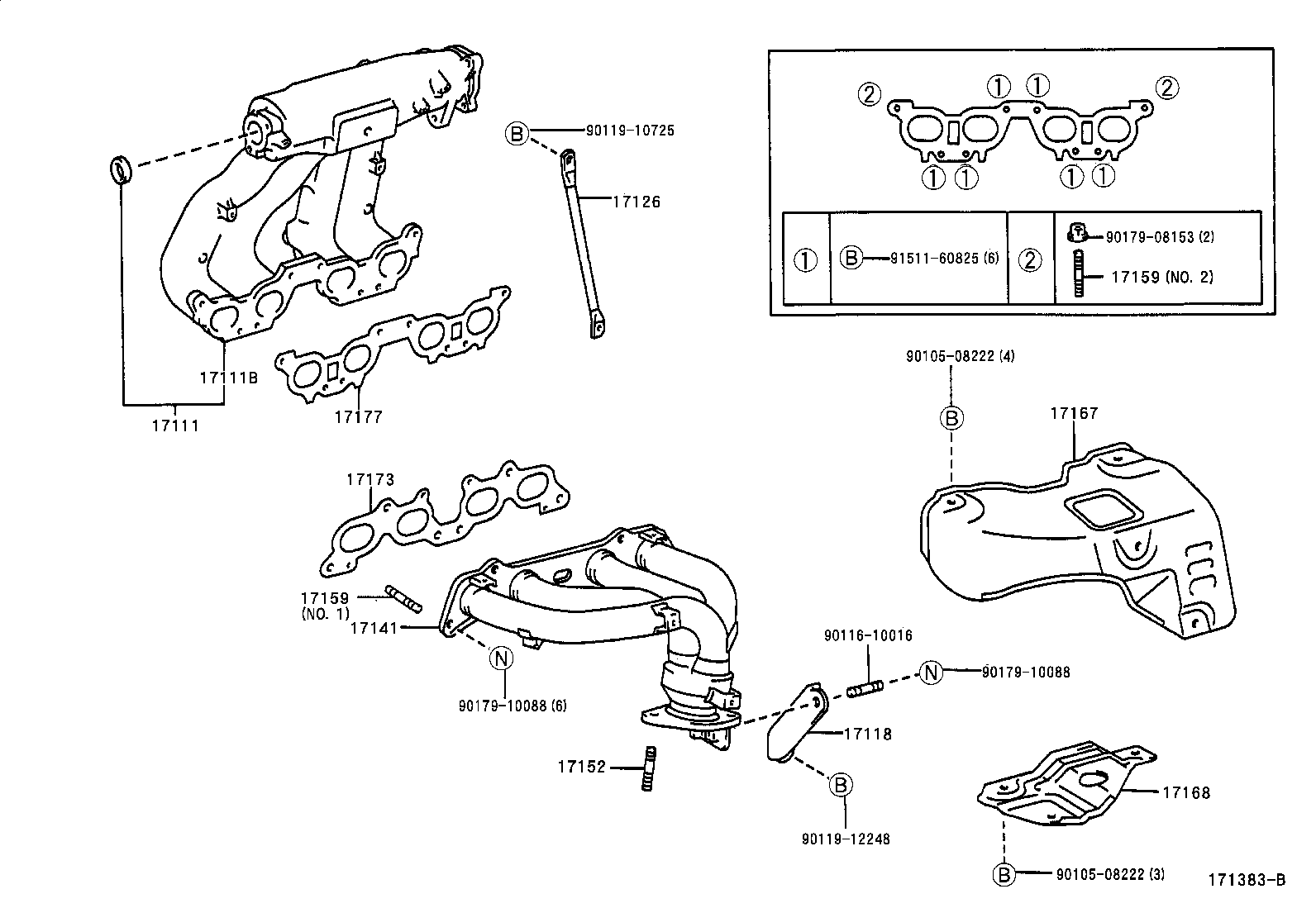

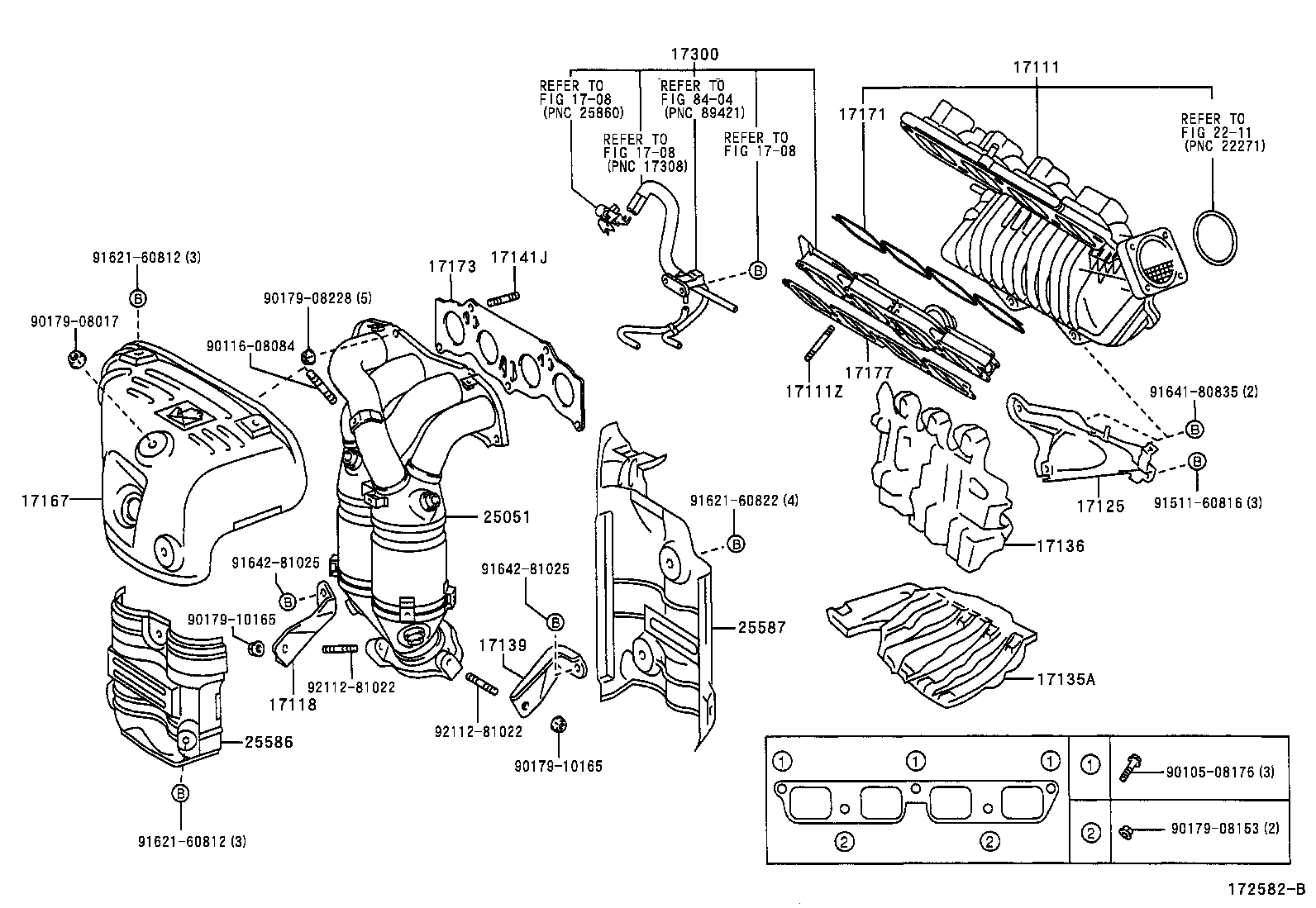

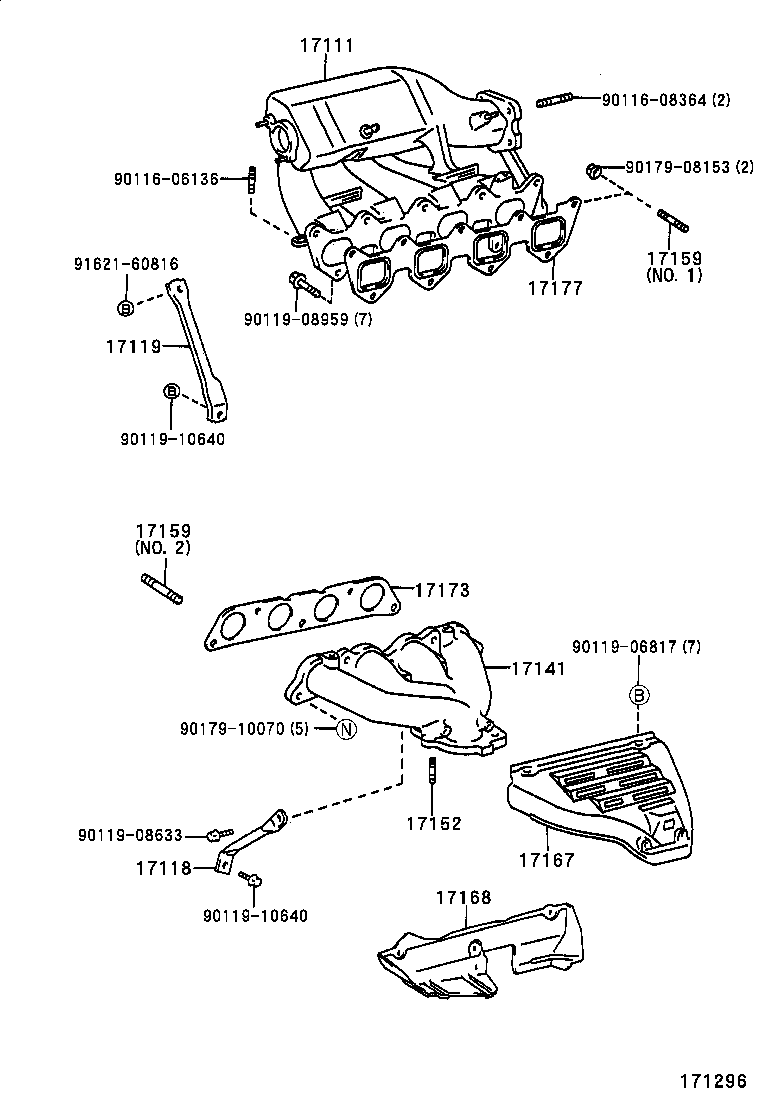

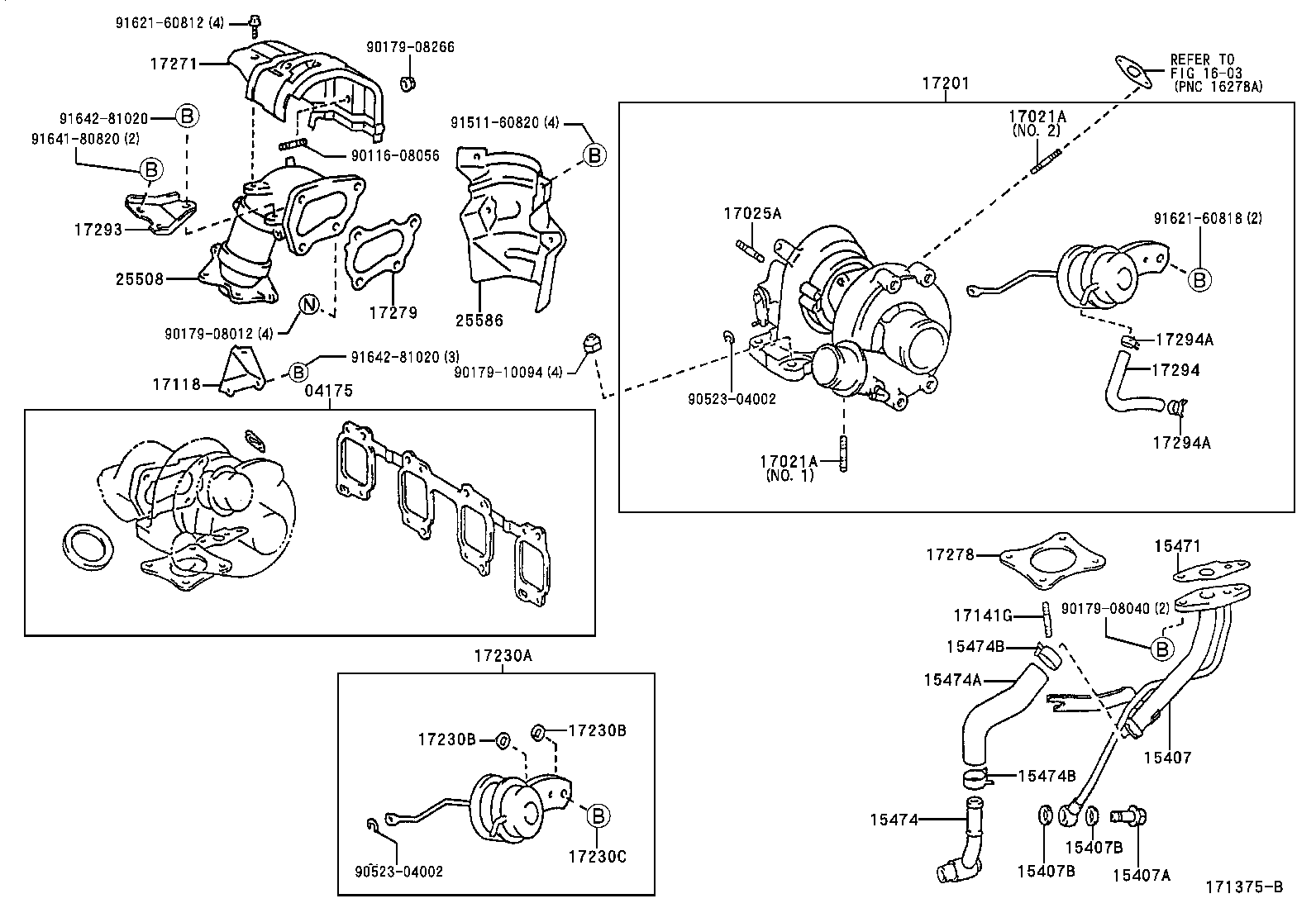

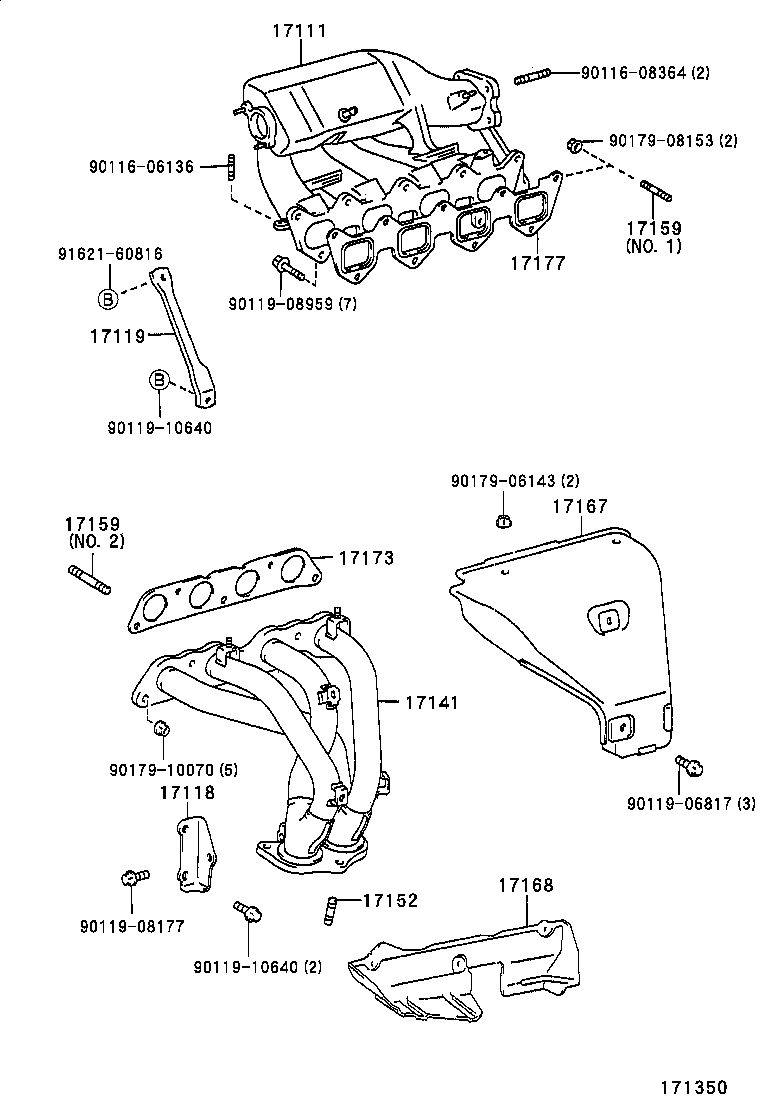

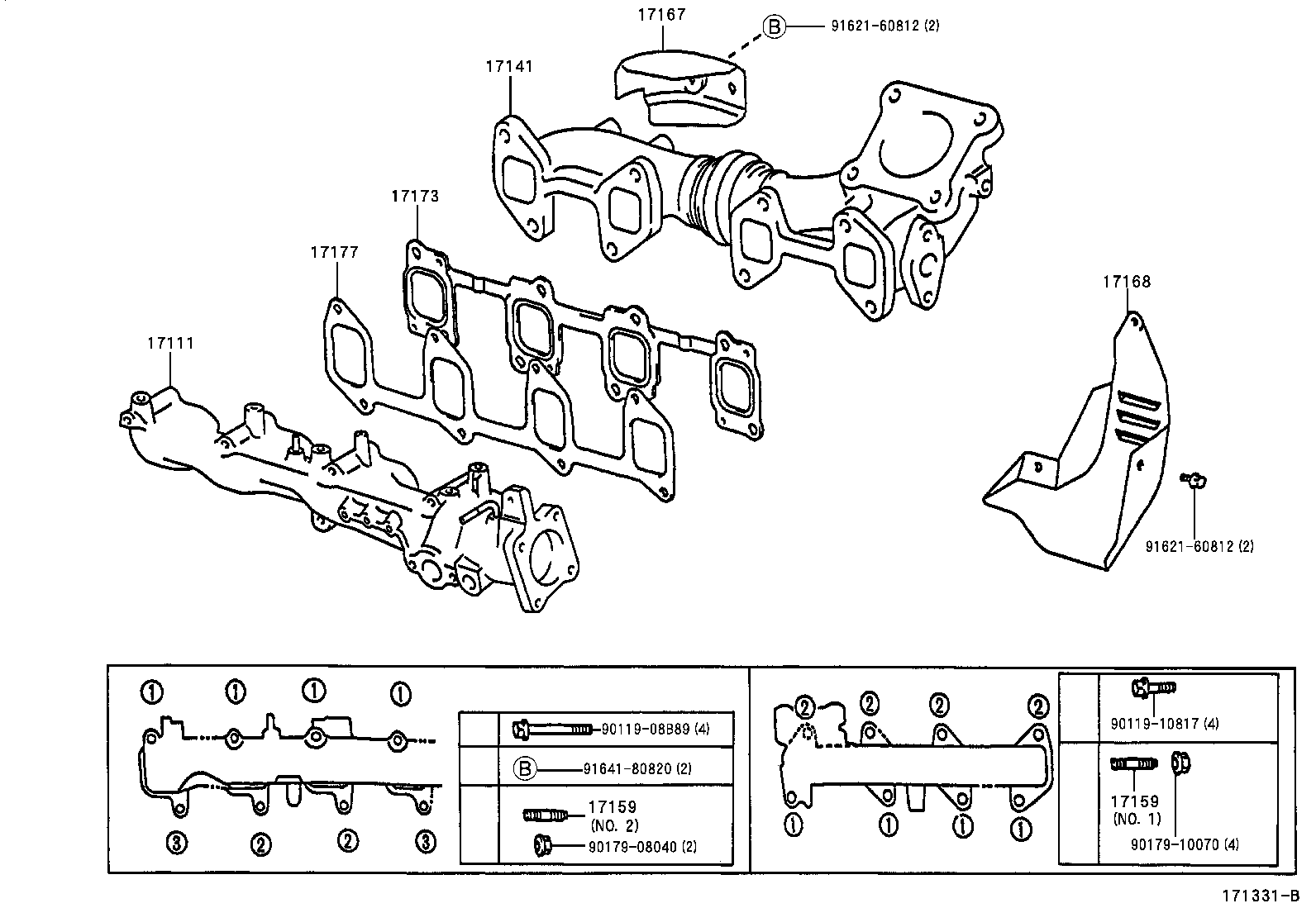

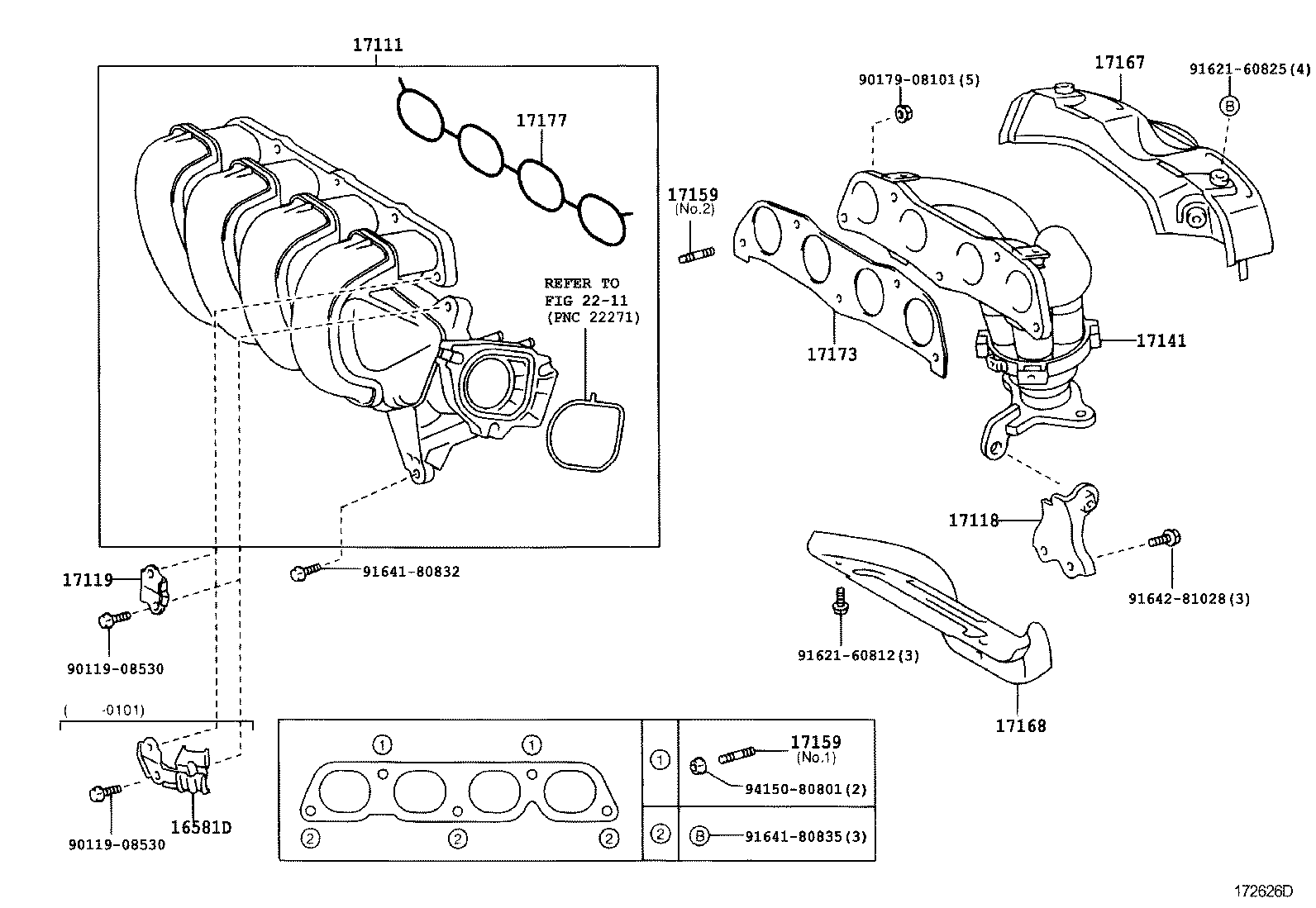

Figure 171301 171301 1997-10 → 2000-07 Figure 171350 171350 1997-10 → 2000-07 Figure 171296 171296 1997-10 → 2000-07 Figure 172582B 172582B 2000-07 → — Figure 171997 171997 1997-10 → 2000-07 Figure 171374B 171374B 1997-10 → 2000-07 Figure 171331B 171331B 1997-10 → 2000-07 Figure 171375B 171375B 1997-10 → 2000-07 Figure 172071B 172071B 1999-08 → — Figure 172254 172254 1999-08 → — Figure 171383B 171383B 1997-10 → — Figure 172625C 172625C 2000-07 → — Figure 172626D 172626D 2000-07 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12612 Cover, Engine, NO.2
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15476 Pipe, Turbo Oil Outlet, NO.2
15477 Pipe, Turbo Oil Inlet
16581D Clamp, Hose(FOR WATER HOSE)
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17024 Housing Sub-assy, Compressor
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111B Plug, NO.2
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17229 Band, V
17230 Actuator Assy, W/Bracket
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17246 Plate, Compressor Housing Clamp
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17288 Insulator, Turbo, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17341H Hose, Air
17341J Clamp, Hose
17861F Connector, Intake Air
25051 Converter Sub-assy, Exhaust Manifold
25508 Converter Sub-assy, Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25617C Plate, Egr Hole Cover
25627E Gasket, Egr Valve
26100F Shutter Assy, Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
