Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

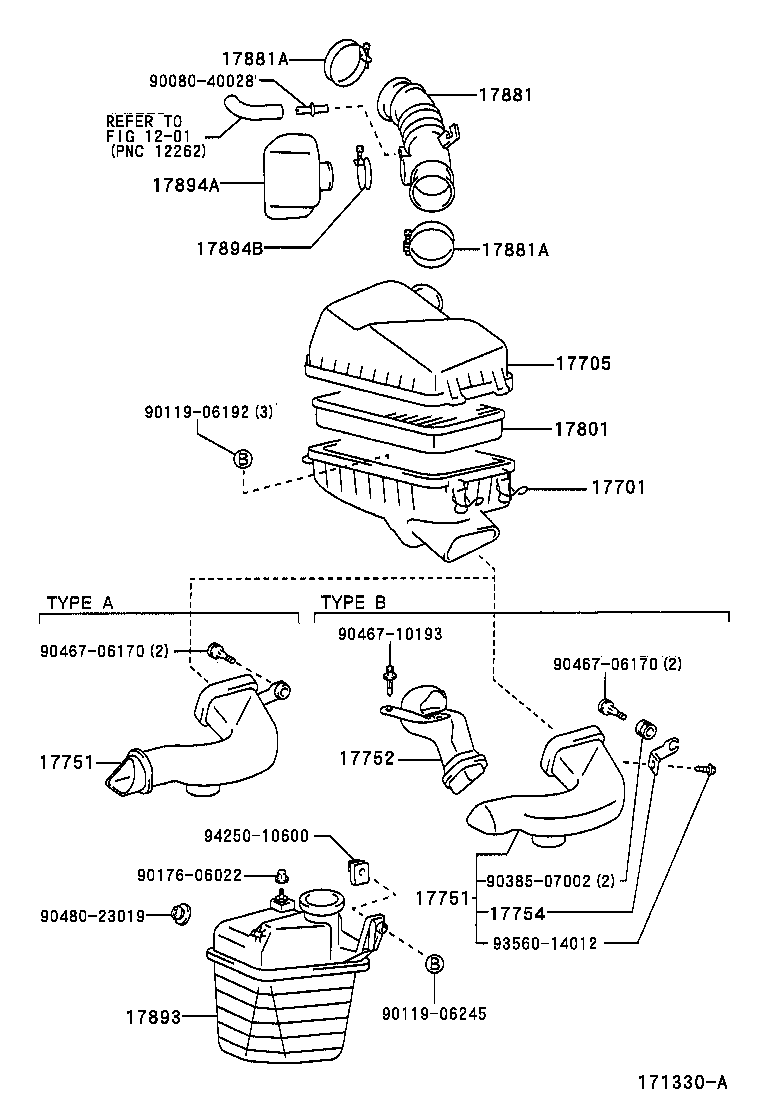

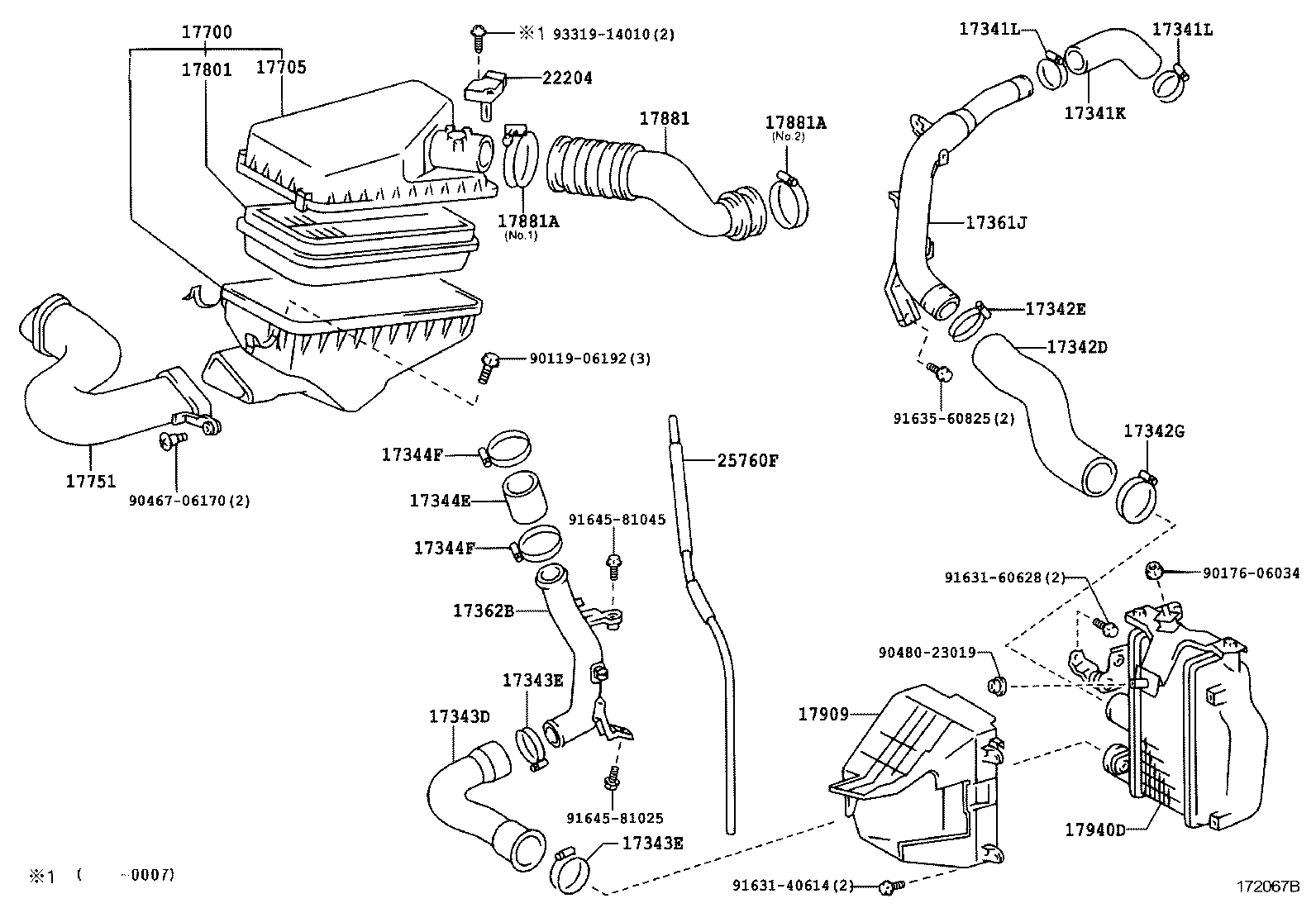

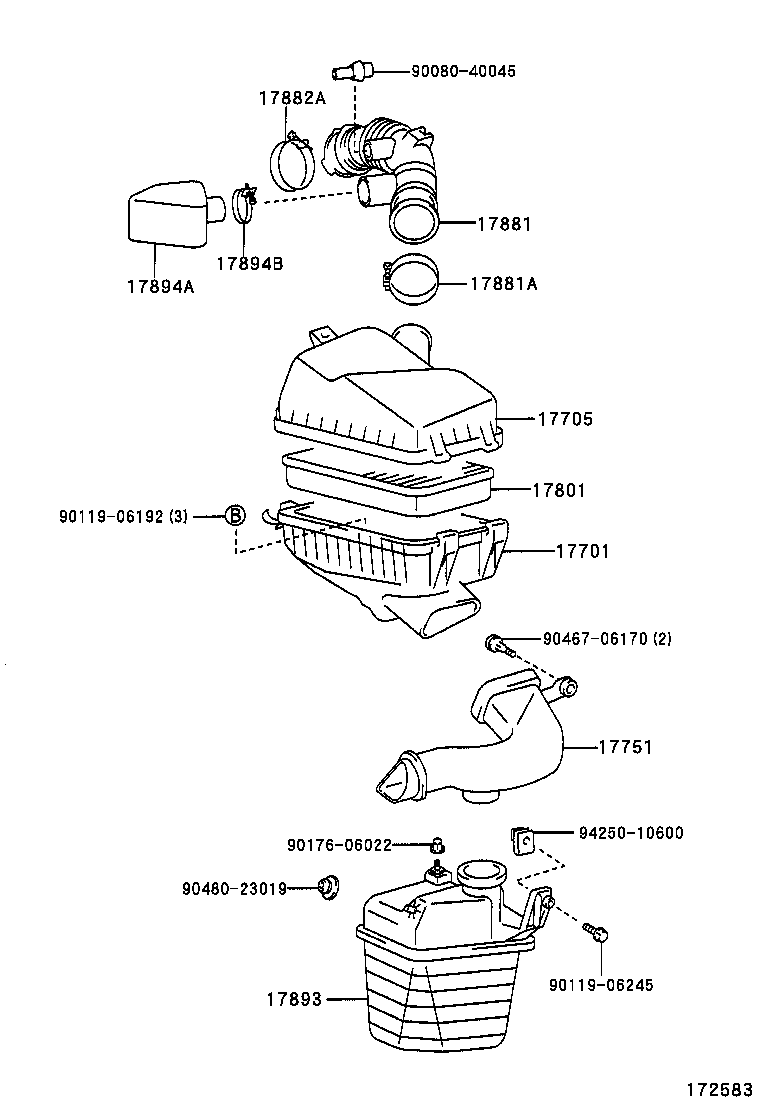

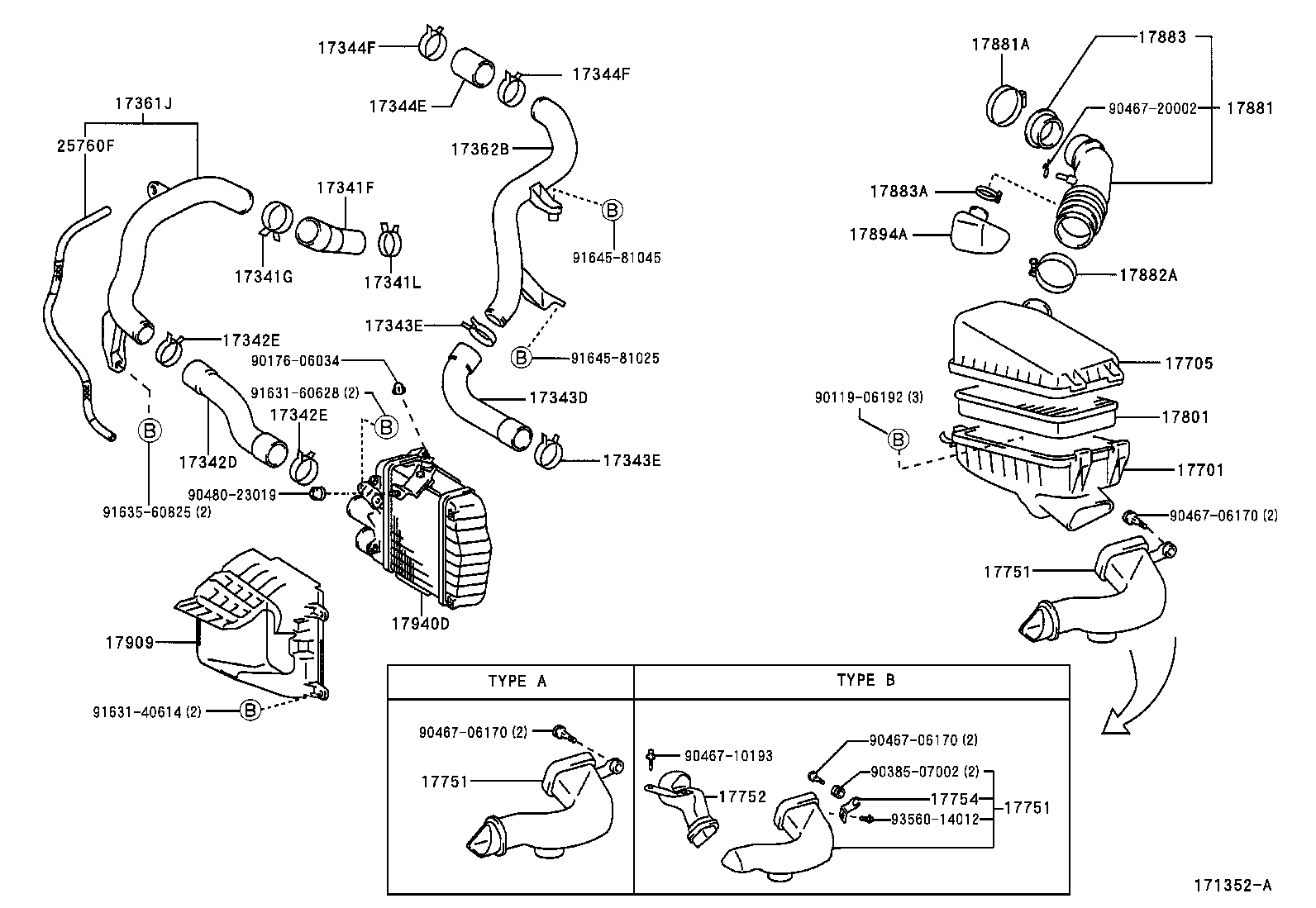

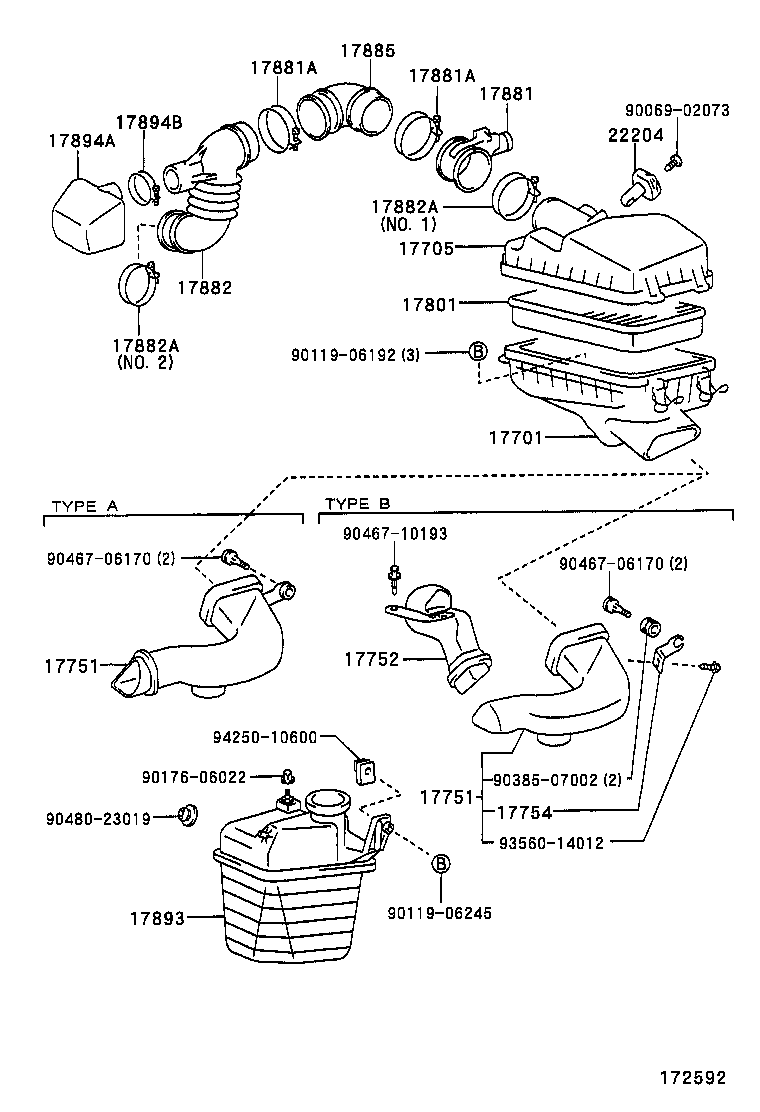

Air Cleaner
34 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17341L | Clamp, Hose |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17754 | Stay, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17885 | Pipe, Air Cleaner |
| 17893 | Resonator, Intake Air |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17909 | Duct Sub-assy, Intercooler Cooling Air |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 25760F | Hose Assy, Vacuum Transmitting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
