Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 8 illustrations

Illustrations

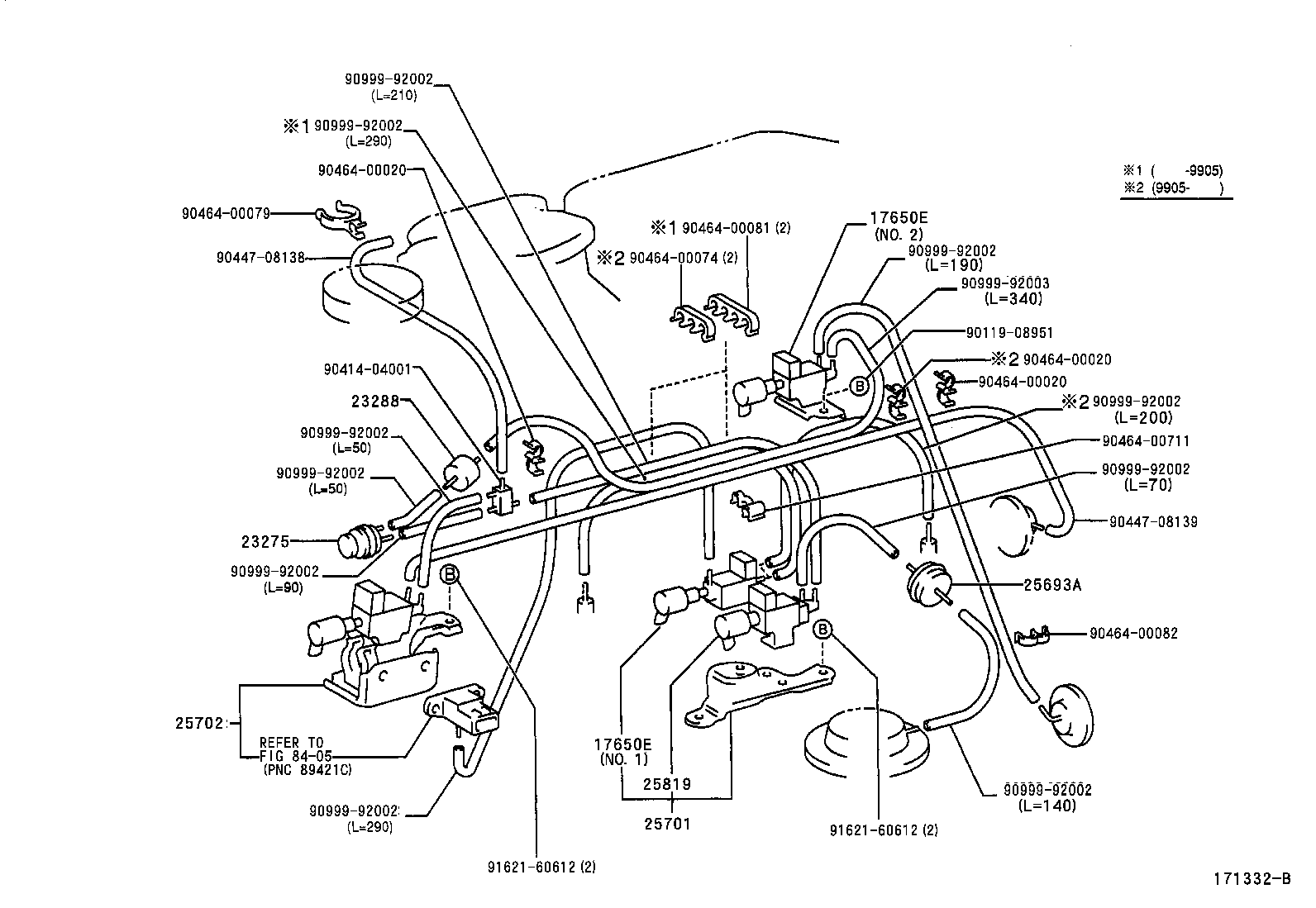

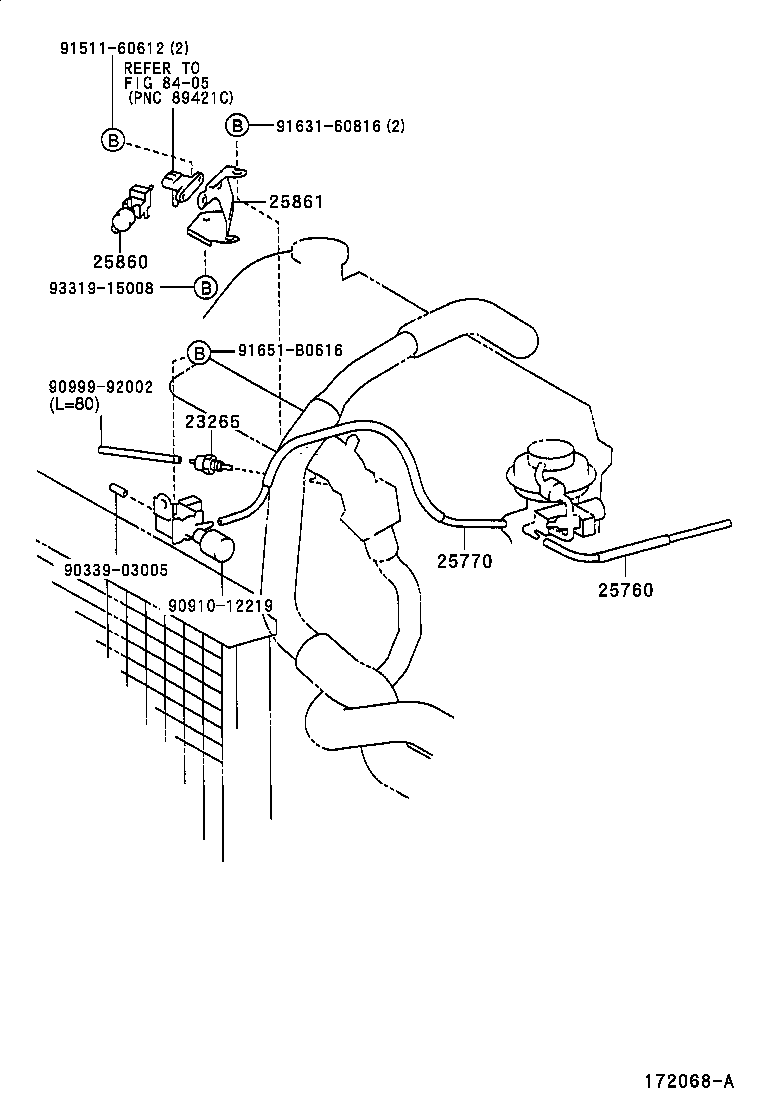

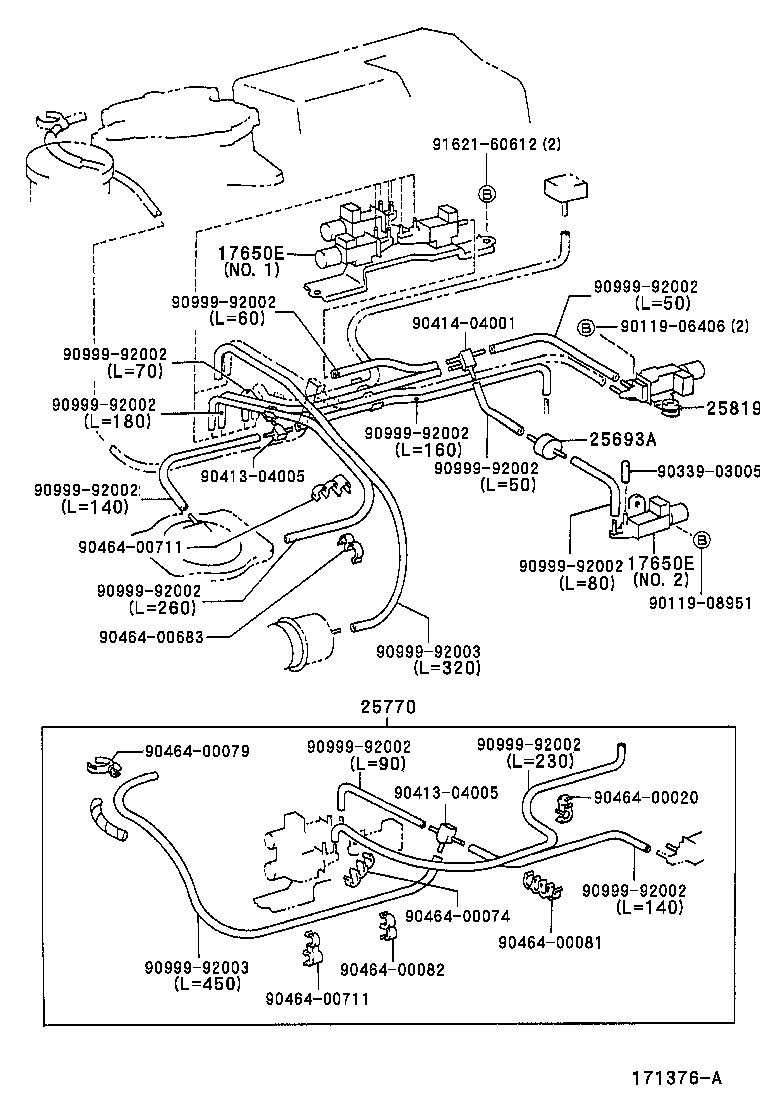

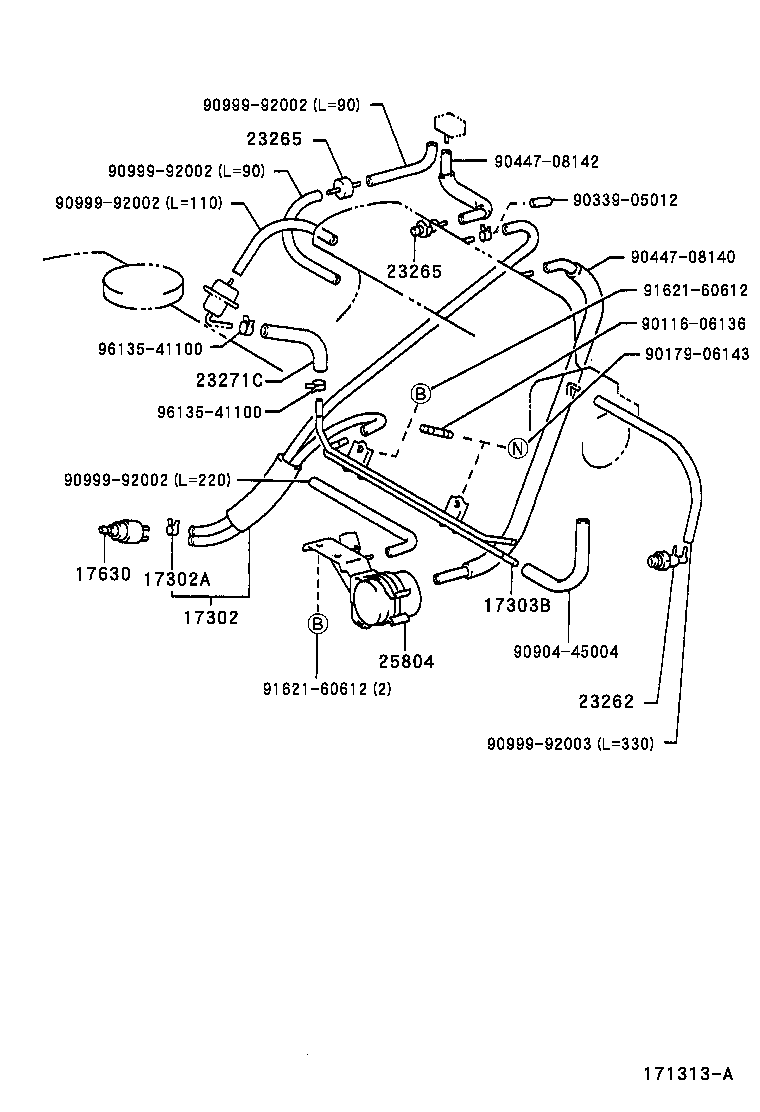

Figure 170021 170021 1997-10 → — Figure 171313A 171313A 1997-10 → 2000-07 Figure 172584A 172584A 2000-07 → — Figure 171376A 171376A 1997-10 → 2000-07 Figure 171332B 171332B 1997-10 → 2000-07 Figure 172068A 172068A 1999-08 → — Figure 171337E 171337E 1997-08 → — Figure 172595A 172595A 2000-07 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341P Hose, Air
17341S Hose, Air
17342L Hose, Air, NO.2
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23275 Valve, Vacuum Control, NO.1
23288 Jet, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25693A Damper, Egr Vacuum Modulator
25701 Valve Set, Emission Control
25702 Valve Set, Emission Control, NO.2
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
