Toyota Avensis

1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

17 part groups · 8 illustrations

Illustrations

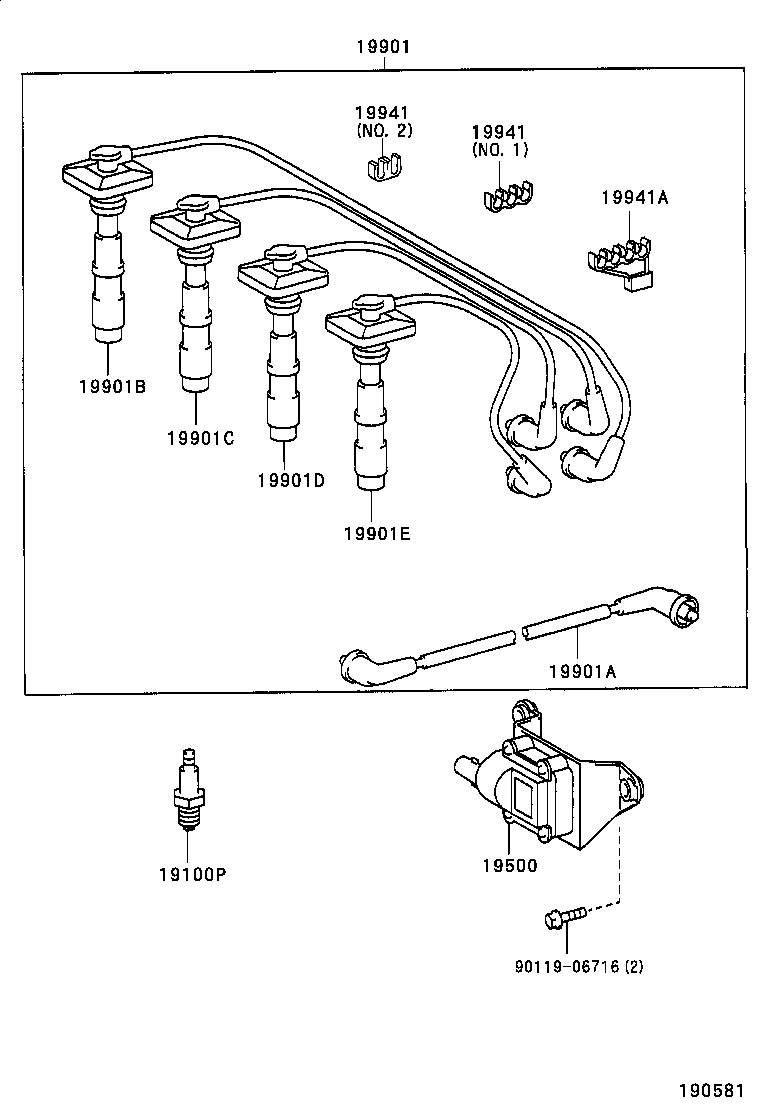

Figure 190580A 190580A 1997-10 → 2000-07 Figure 190581 190581 1997-10 → 2000-07 Figure 190961 190961 1997-10 → 2000-07 Figure 191227 191227 2000-07 → — Figure 190377 190377 1997-10 → 2000-07 Figure 190994 190994 1999-08 → — Figure 190042B 190042B 1997-10 → — Figure 191098 191098 2000-07 → —

Part groups

PNCDescription
17139A Stay, Manifold, NO.1
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
