Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

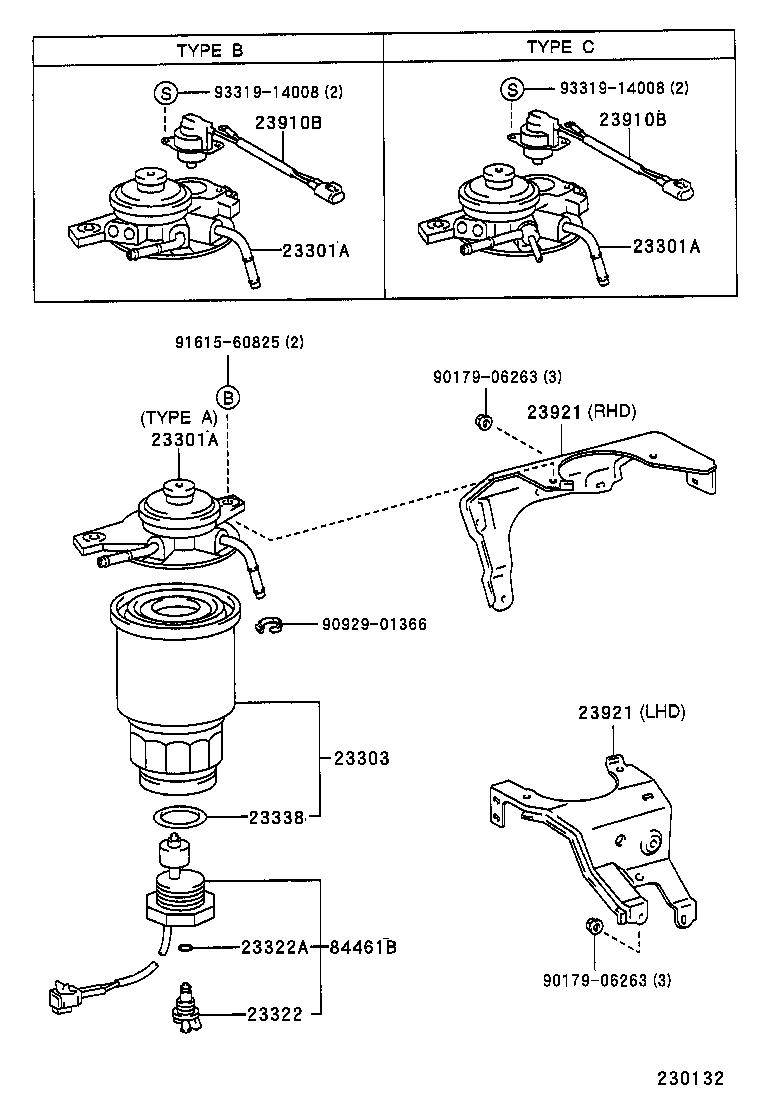

Fuel Filter
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
