Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08
Clutch Pedal & Flexible Hose
30 part groups · 18 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

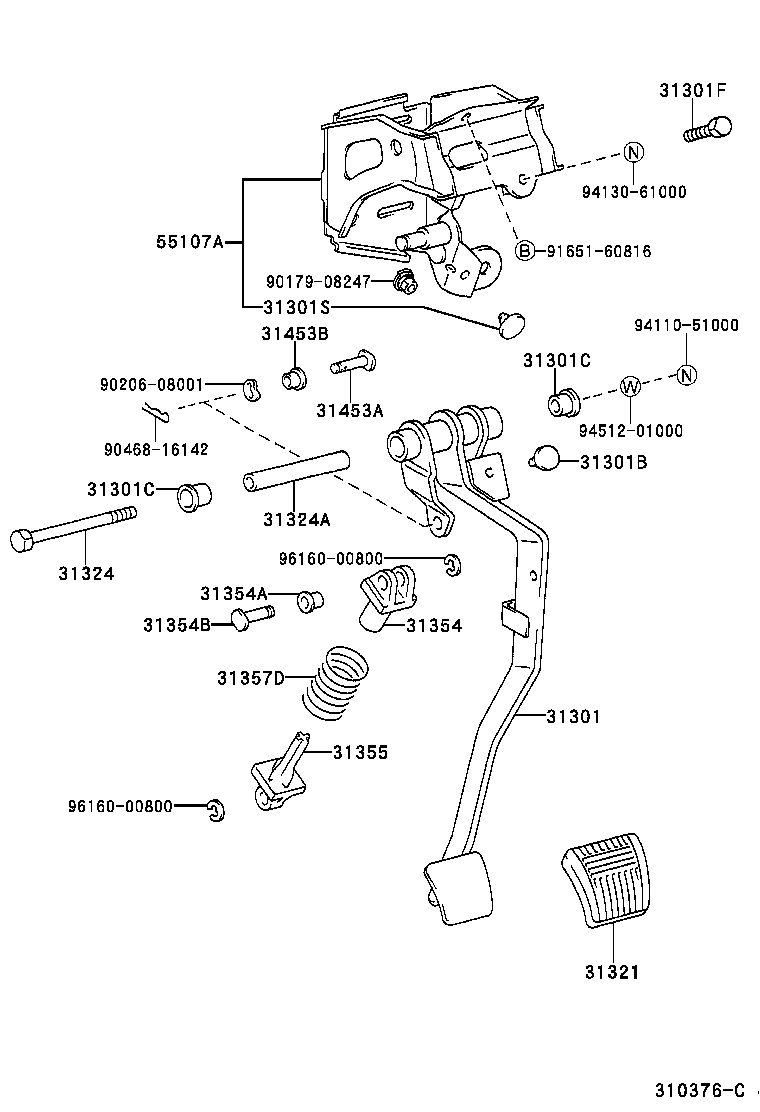

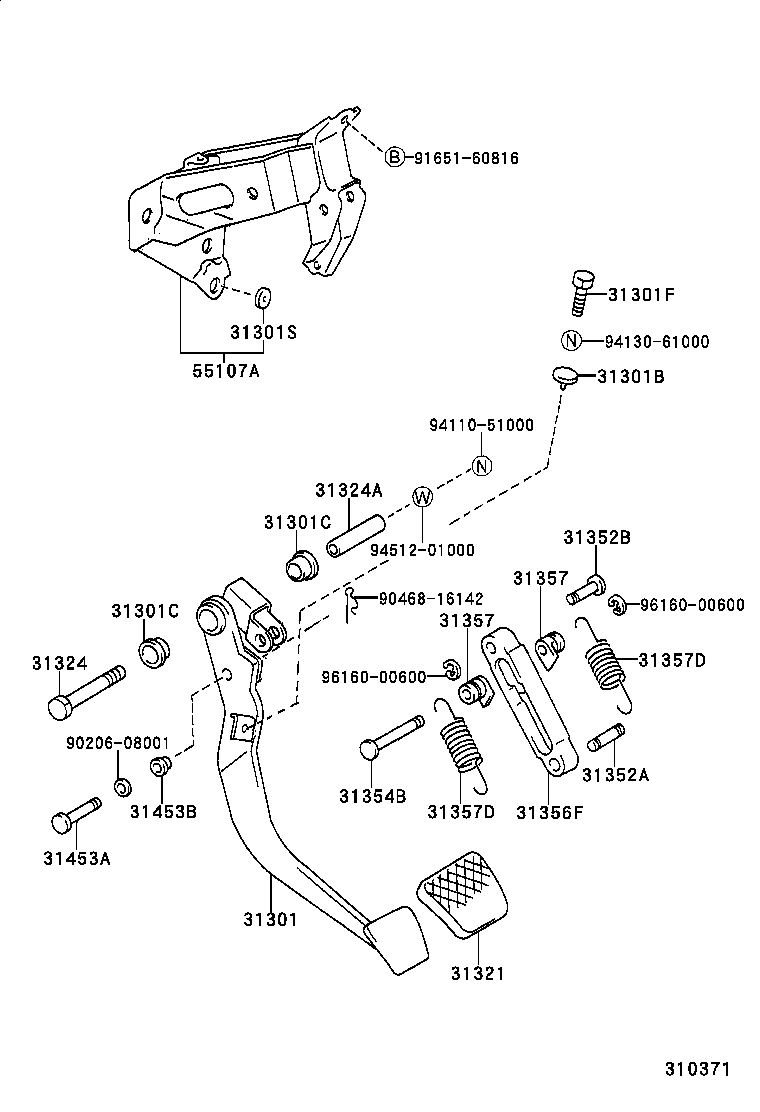

| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31352A | Pin, Clutch Pedal Over Center Plate, NO.1 |
| 31352B | Pin, Clutch Pedal Over Center Plate, NO.2 |
| 31354 | Seat, Clutch Pedal Spring, Upper |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31354B | Pin, W/Hole(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31355 | Seat, Clutch Pedal Spring, Lower |
| 31356F | Plate, Clutch Pedal Over Center, NO.1 |
| 31357 | Plate, Clutch Pedal Over Center, NO.2 |
| 31357D | Spring, Compression(FOR OVER CENTER ADJUSTING ROD) |

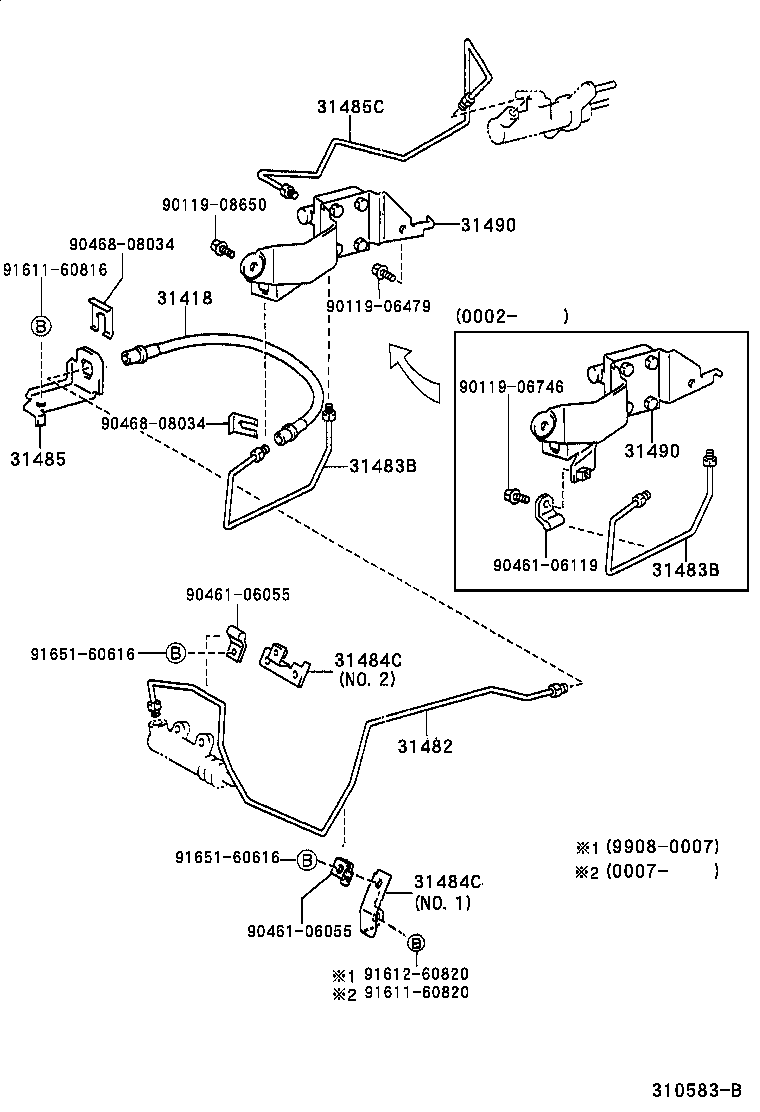

| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31485C | Tube, Clutch Master Cylinder TO Accumulator |
| 31490 | Accumulator Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
