Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

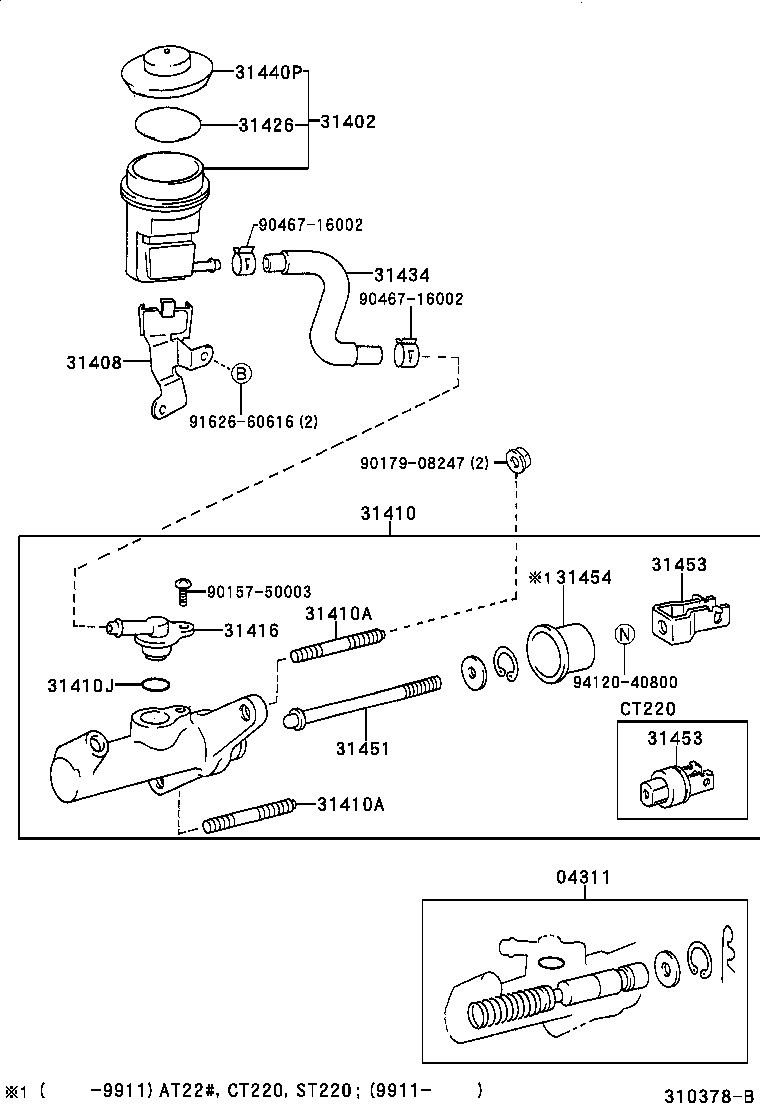

Clutch Master Cylinder
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31402 | Reservoir Sub-assy, Clutch Master Cylinder |
| 31408 | Holder Sub-assy, Clutch Reservoir |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31410J | Ring, O(FOR CLUTCH MASTER CYLINDER UNION) |
| 31416 | Union, Clutch Master Cylinder Inlet |
| 31417 | Grommet, Clutch Reservoir |
| 31426 | Float, Clutch Master Cylinder Reservoir |
| 31434 | Tube, Clutch Reservoir |
| 31440P | Cap Assy, Clutch Master Cylinder Reservoir Filler |
| 31451 | Rod, Clutch Master Cylinder Push |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31454 | Boot, Clutch Master Cylinder |
| 31490F | Accumulator Assy, Master Cylinder |
| 31490G | Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
