Toyota Avensis
1997-10 → 2003-01 · chassis AT22#,AZT220,CDT220,CT220,ST220,ZZT22# · catalogue 273540 · Europe
Discontinued model
Data version 2003-08

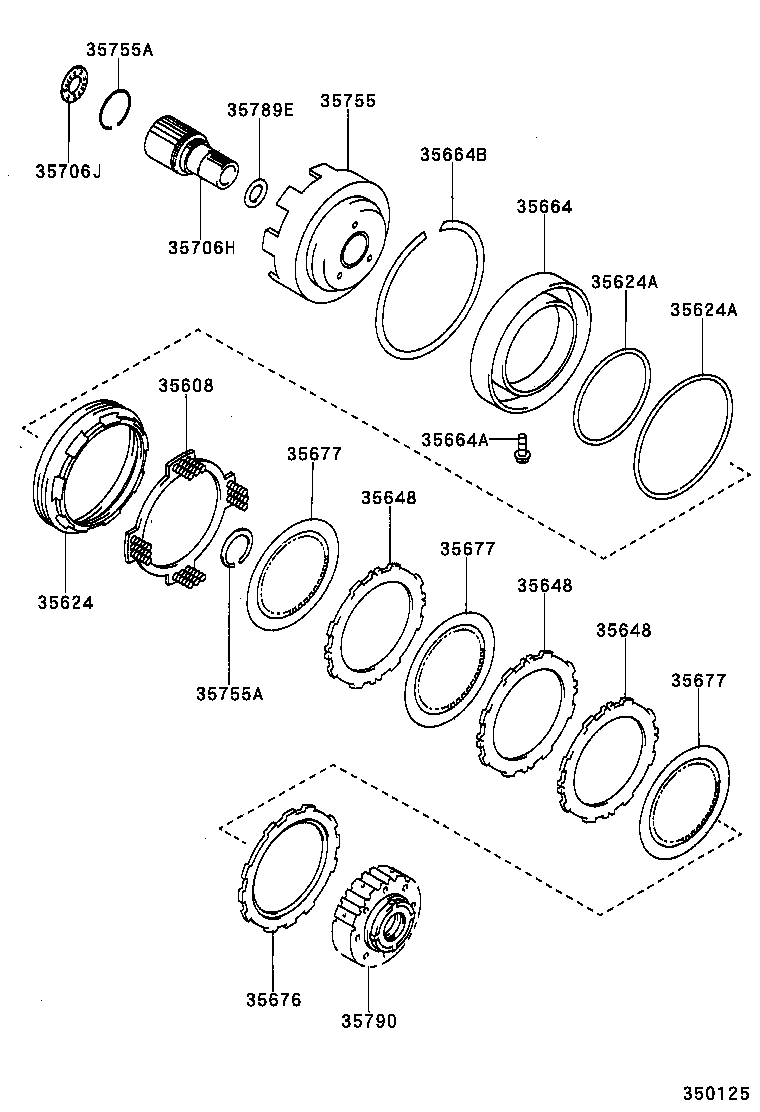

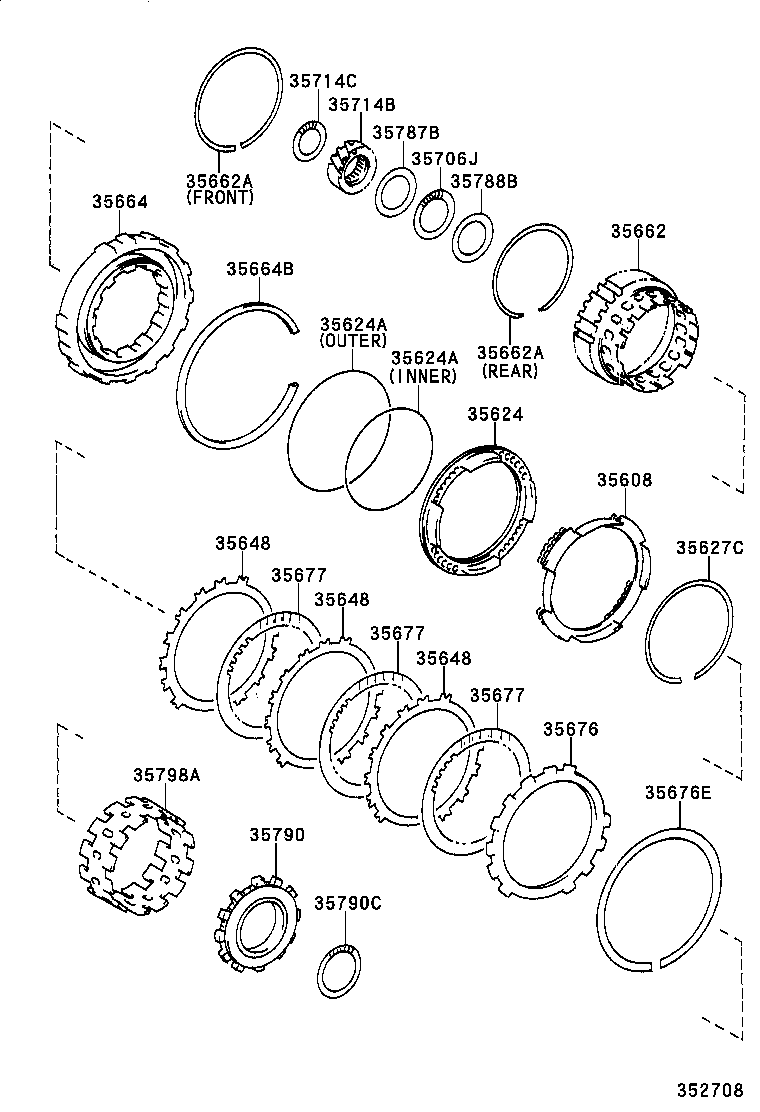

Center Support & Planetary Sun Gear (ATM)
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35627C | Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) |
| 35648 | Plate, Clutch (FOR 2ND BRAKE) |
| 35662 | Hub, Brake |
| 35662A | Ring, Snap (FOR BRAKE HUB) |
| 35664 | Cylinder, 2ND Brake |
| 35664A | Bolt (FOR 2ND BRAKE CYLINDER) |
| 35664B | Ring, Hole Snap (FOR 2ND BRAKE CYLINDER) |
| 35676 | Flange, Brake (FOR 2ND BRAKE) |
| 35676E | Ring, Hole Snap (FOR 2ND BRAKE) |
| 35677 | Disc, Clutch (FOR 2ND BRAKE) |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35714B | Gear, Input Sun |
| 35714C | Bearing, Thrust Needle Roller (FOR INPUT SUN GEAR) |
| 35755 | Drum, Sun Gear Input |
| 35755A | Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM) |
| 35787B | Race, Thrust Bearing, NO.2 |
| 35788B | Race, Thrust Bearing, NO.3 |
| 35789E | Race, Thrust Bearing (FOR PLANETARY SUN GEAR) |
| 35790 | Clutch Assy, 1 Way |
| 35790C | Bearing, Thrust Needle Roller |
| 35798A | Sleeve, 1Way Clutch, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
